User Manual BACnet Slave / PROFINET Master
Document code: MN67B81_ENG
Revision 1.000
Page 21 of 32
Industrial Electronic Devices
PROFINET ACCESS:
By Pressing the
"PROFINET
Access" button from the main window for SW67B81 (Fig. 2) the window "Definition of PROFINET Devices
Present in Network" appears (Fig. 4).
This section is used to define the list of the PROFINET slaves to read/write with the PROFINET Master. It is possible to add the PROFINET
slaves from the hardware catalog. If a new device will be connected, it is possible to instal the GSDML file.

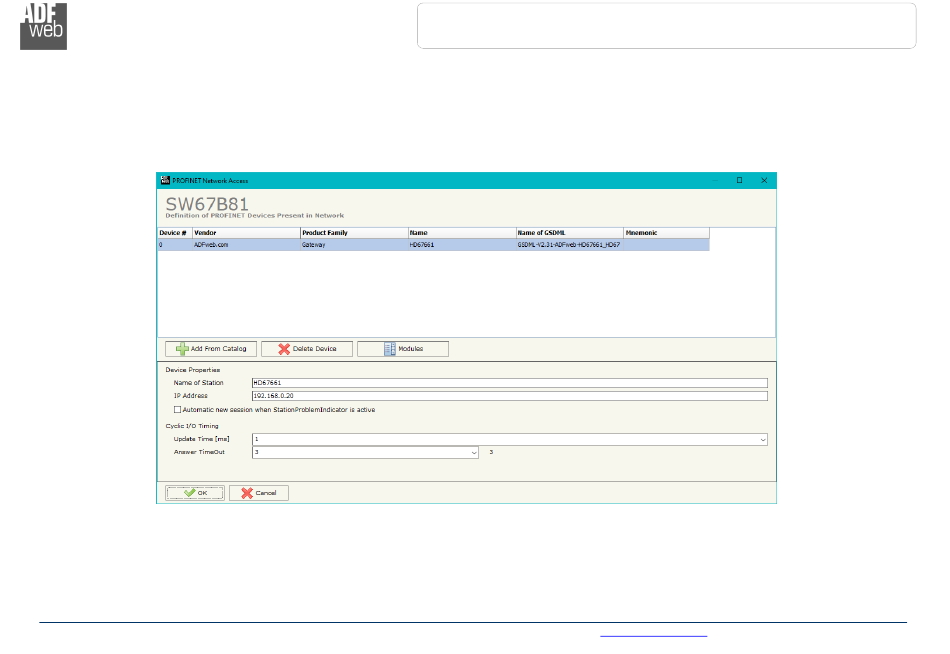

Figure 4: "Definition of PROFINET Devices Present in Network" window
ADFweb.com Srl – IT31010 – Mareno – Treviso
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
