Industrial Electronic Devices

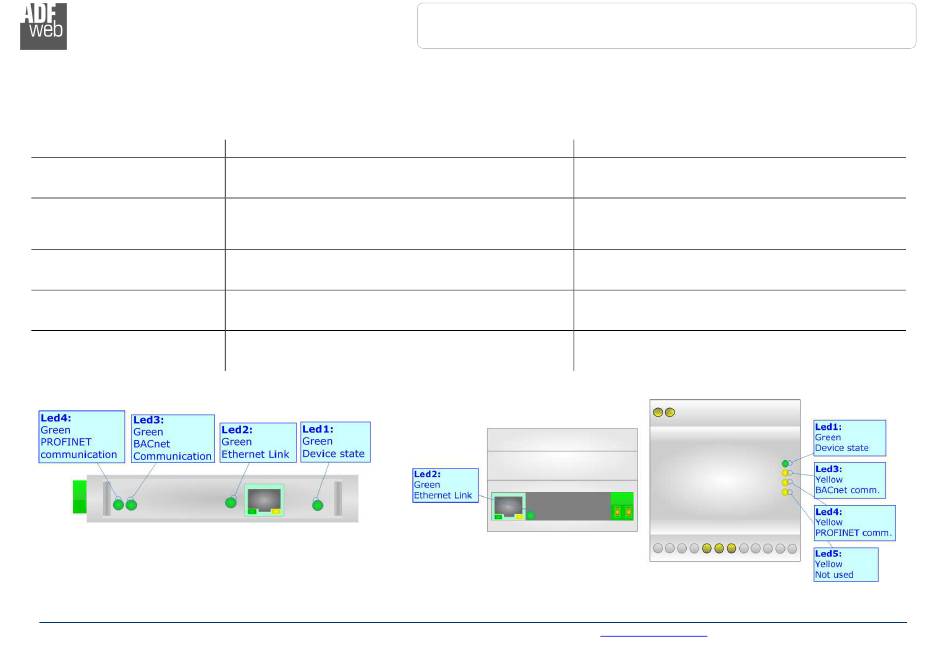

LEDS (for HD67B81-MSTP-A1/B2):
The device has got four LEDs (five the –B2 version) that are used to give information about the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State
2: Ethernet Link
3: BACnet comm.
4: PROFINET comm.
5: Not Used
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Blinks quickly when receive BACnet requests
Blinks quickly when PROFINET communication is
running
OFF
User Manual BACnet Slave / PROFINET Master
Document code: MN67B81_ENG
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
INFO:
www.adfweb.com
Revision 1.000
Page 12 of 32
Boot Mode
Phone +39.0438.30.91.31
