Industrial Electronic Devices
User Manual
Revision 1.000
English

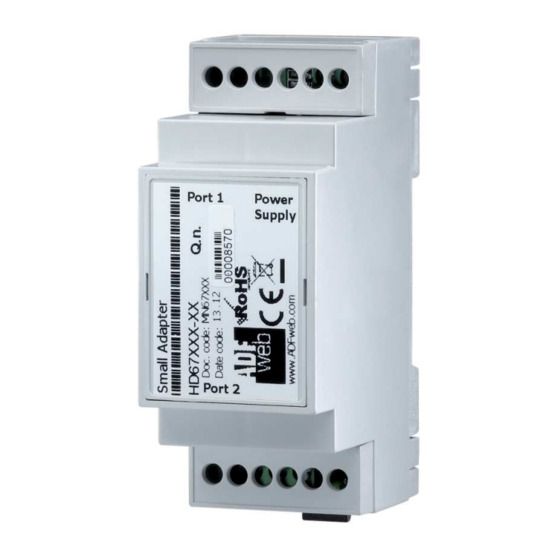

PROFINET Master / MQTT - Converter
(Order Code: HD67B80-B2)
for Website information:
www.adfweb.com/?Product=HD67B80
for Price information:
www.adfweb.com/?Price=HD67B80-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual PROFINET Master / MQTT
Document code: MN67B80_ENG
Revision 1.000
For others PROFINET Master devices, see also the following links:
PROFINET Master from/to ...
www.adfweb.com?Product=HD67B45
www.adfweb.com?Product=HD67B70
www.adfweb.com?Product=HD67B71
www.adfweb.com?Product=HD67B72
www.adfweb.com?Product=HD67B73
www.adfweb.com?Product=HD67B74
www.adfweb.com?Product=HD67B75
www.adfweb.com?Product=HD67B76
www.adfweb.com?Product=HD67B77
www.adfweb.com?Product=HD67B78
www.adfweb.com?Product=HD67B79
www.adfweb.com?Product=HD67B81
www.adfweb.com?Product=HD67B82
www.adfweb.com?Product=HD67B84
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Page 1 of 32
(OPC UA Server)
(Serial)
(Modbus Slave)
(PROFIBUS Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(Modbus TCP Slave)
(SNMP Agent)
(EtherNet/IP Slave)
(KNX)
(BACnet Slave)
(IEC 61850 Server)
(Ethernet)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67B80-B2
Summary of Contents for ADF Web HD67B80-B2
- Page 1 Page 1 of 32 Industrial Electronic Devices User Manual Revision 1.000 English PROFINET Master / MQTT - Converter (Order Code: HD67B80-B2) for Website information: www.adfweb.com/?Product=HD67B80 for Price information: www.adfweb.com/?Price=HD67B80-B2 For others PROFINET Master devices, see also the following links: Benefits and Main Features: PROFINET Master from/to …...
-
Page 2: Table Of Contents
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 2 of 32 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 3 of 32 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 4 of 32 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 5 of 32 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67B80-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 6: Characteristics
Revision 1.000 Page 6 of 32 Industrial Electronic Devices CHARACTERISTICS: The HD67B80-B2 is a PROFINET Master / MQTT converter. It allows the following characteristics: Up to 1500 bytes in reading and 1500 bytes in writing; Two-directional information between PROFINET and MQTT;... -
Page 7: Power Supply
POWER SUPPLY: The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67B80-B2 Consumption at 24V DC: Device W/VA HD67B80-B2 Caution: Not reverse the polarity power HD67B80-B2 ADFweb.com Srl –... -
Page 8: Function Modes
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 8 of 32 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware. -
Page 9: Leds
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 9 of 32 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Ethernet
ETHERNET: The Ethernet connection must be made using Connector3 of HD67B80-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a cross cable. -
Page 11: Use Of Compositor Sw67B80
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 11 of 32 Industrial Electronic Devices USE OF COMPOSITOR SW67B80: To configure the Converter, use the available software that runs with Windows called SW67B80. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 12: New Project / Open Project
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 12 of 32 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “PROFINET Master / MQTT Converter”... -
Page 13: Software Options
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 13 of 32 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... - Page 14 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 14 of 32 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 15: Set Communication
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 15 of 32 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67B80 (Fig. 2) the window “Set Communication” appears (Fig. 3). The window is divided in different sections in order to define the different parameters of the converter: PROFINET Master... - Page 16 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 16 of 32 Industrial Electronic Devices PROFINET M ASTER This section is used to define the main parameters of PROFINET line. The means of the fields are: In the fields “IP Address”...
- Page 17 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 17 of 32 Industrial Electronic Devices In the field “Message Will” the payload of the Will message is defined; In the field “Retained Will” the converter will send the Will message with Retain flag enabled. In this way, the Server will hold the last Will message;...
- Page 18 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 18 of 32 Industrial Electronic Devices This section is used to define the general parameters of Wi-Fi. It is possible to defined the type of Wi-Fi communication: Access Point; Client.
- Page 19 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 19 of 32 Industrial Electronic Devices The means of the fields for Client configuration are: If the field “Obtain an IP Address automatically” is checked, the converter gets the IP Address using DHCP. Otherwise, the IP Address is defined as static;...
- Page 20 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 20 of 32 Industrial Electronic Devices NTP (N ETWORK ROTOCOL This section is used to define the parameters of NTP protocol. The means of the fields are: In the field “Server URL”...
-
Page 21: Profinet Access
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 21 of 32 Industrial Electronic Devices PROFINET ACCESS: By Pressing the “PROFINET Access” button from the main window for SW67B80 (Fig. 2) the window “Definition of PROFINET Devices Present in Network”... - Page 22 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 22 of 32 Industrial Electronic Devices The means of the fields below are: In the field “Name of Station” is checked, the name of the PROFINET slave is defined; In the field “IP Address”...
- Page 23 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 23 of 32 Industrial Electronic Devices By clicking on “Modules” button, it is possible to import the modules for the selected PROFINET slave device. The window “Definition Module and/or Submodules of PROFINET Device”...
-
Page 24: Mqtt Set Topic
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 24 of 32 Industrial Electronic Devices MQTT SET TOPIC: By Pressing the “MQTT Set Topic” button from the main window for SW67B80 (Fig. 2) the window “Set MQTT Topics” appears (Fig. 6). This section is used to define the MQTT topics where the converter will publish the data from PROFINET and the topic that the converter will subscribes for writing the data to PROFINET. - Page 25 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 25 of 32 Industrial Electronic Devices MQTT S UBSCRIBE Figure 6b: “Set MQTT Topics MQTT Subscribe” window The means of the fields are: In the field “Topic” the MQTT topic is defined; If the field “Retained”...
-
Page 26: Update Device
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 26 of 32 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 27 User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 27 of 32 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B80 device. Warning: If Fig.
-
Page 28: Template String: Definition Of Mqtt Payload
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 28 of 32 Industrial Electronic Devices TEMPLATE STRING: DEFINITION OF MQTT PAYLOAD In the section “Set Communication” of the SW67B80, it is possible to define a Template string for the MQTT messages. The template is necessary in order to define the structure of the payload of the MQTT message and the info contained. -
Page 29: Mechanical Dimensions
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 29 of 32 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67B80-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 30: Ordering Informations
Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67B80: PROFINET Master / MQTT - Converter Order Code: HD67B80-B2 PROFINET Master / MQTT - Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 31: Disclaimer
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 31 of 32 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 32: Warranties And Technical Support
User Manual PROFINET Master / MQTT Document code: MN67B80_ENG Revision 1.000 Page 32 of 32 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
