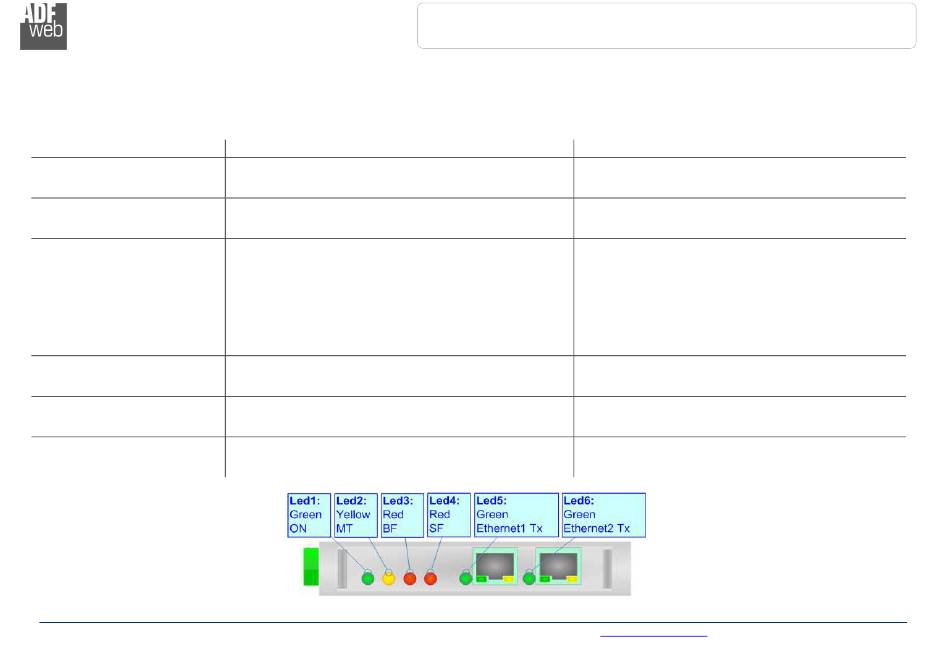

LEDS (for HD67B81-IP-A1):
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: ON [supply voltage ]
(green)
2: MT [maintenance display]
(yellow)
3: BF [bus fault] (red)
4: SF [group error] (red)
5: Ethernet1 Tx (green)
6: Ethernet2 Tx (green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
ON: Device powered
OFF: Device not powered
ON: Maintenance are present
OFF: No maintenance are present
ON: The Ethernet connection is defective; the IP
address exists several times in the network; the own
NameOfStation exists several times in the network; no
IP address has been set
Flashing: At least one configured AR is no longer in
the data exchange
OFF: No errors are present
ON: At least one AR is not in the data exchange
OFF: No errors are present
Blinks when is transmitting Ethernet frames
Blinks when is transmitting Ethernet frames
User Manual BACnet Slave / PROFINET Master
Document code: MN67B81_ENG
ON: Device powered
OFF: Device not powered
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
INFO: www.adfweb.com
Revision 1.000 Page 11 of 32
Boot Mode
