8.4 Replacement of blowers

Important: During the whole of this process it is of the greatest importance that no foreign objects
enter the blower casing. Try, therefore, to keep the entry and exit holes covered as long as possible.
8.4.1 Removing the front plate

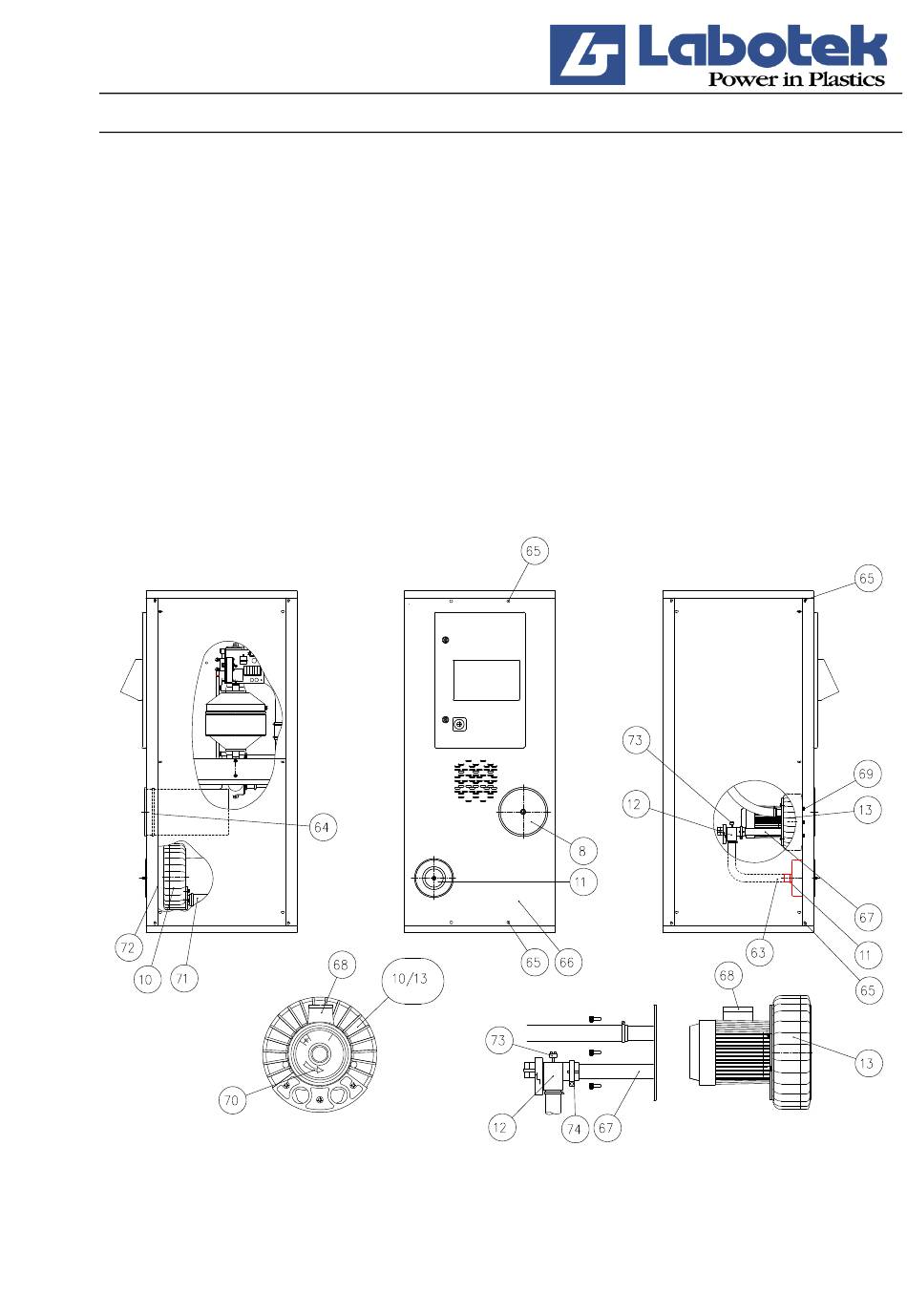

In order to remove one of the blowers it is necessary to remove the front plate to gain access to the
screws securing the blowers.
1. Disconnect the control cables and remove the cover of the Control cabinet by removing the
two pintles.
2. Remove both cartridge filters (8) and (11) and the side plates.
3. Remove hose (63) from the fresh air filter housing.
4. Loosen clip (64) around the return air filter box and pull it back slightly.
5. Remove the screws (65) and the front plate (66).
R1883
