Alarm-log. All alarms will be recorded in this log, including the time. Maximum
capacity is 10 alarms.
Alarm-log can be deleted, however, active alarm states will return.
I/O-Status. Shows the status for all inputs, outputs, temperatures and dewpoint.
External start: Starts/stops the machine from an external control. After connection
to an external control, the DFD must be turned off on the operating screen before the
external control can be used. The External Start button will show Red/Green on the
operating screen if this feature is activated.
When the external start is used the button on the operating screen will turn green.
The normal off/on button will be green and have a black circle and line through it.
In this operational situation, the machine can not be started and stopped locally.
However, there is possibility of changing the parameters locally.
It is, however, possible to turn the external start/stop option off at the machine and
thereafter operate the machine from the touch screen.
Language: LAB-DRY has 3 languages: English, German and Danish.
The preferred operating language is chosen by pressing the corresponding flag. The
chosen language will be denoted by a black box around the flag.
ESC: Brings you back to the setup screen.

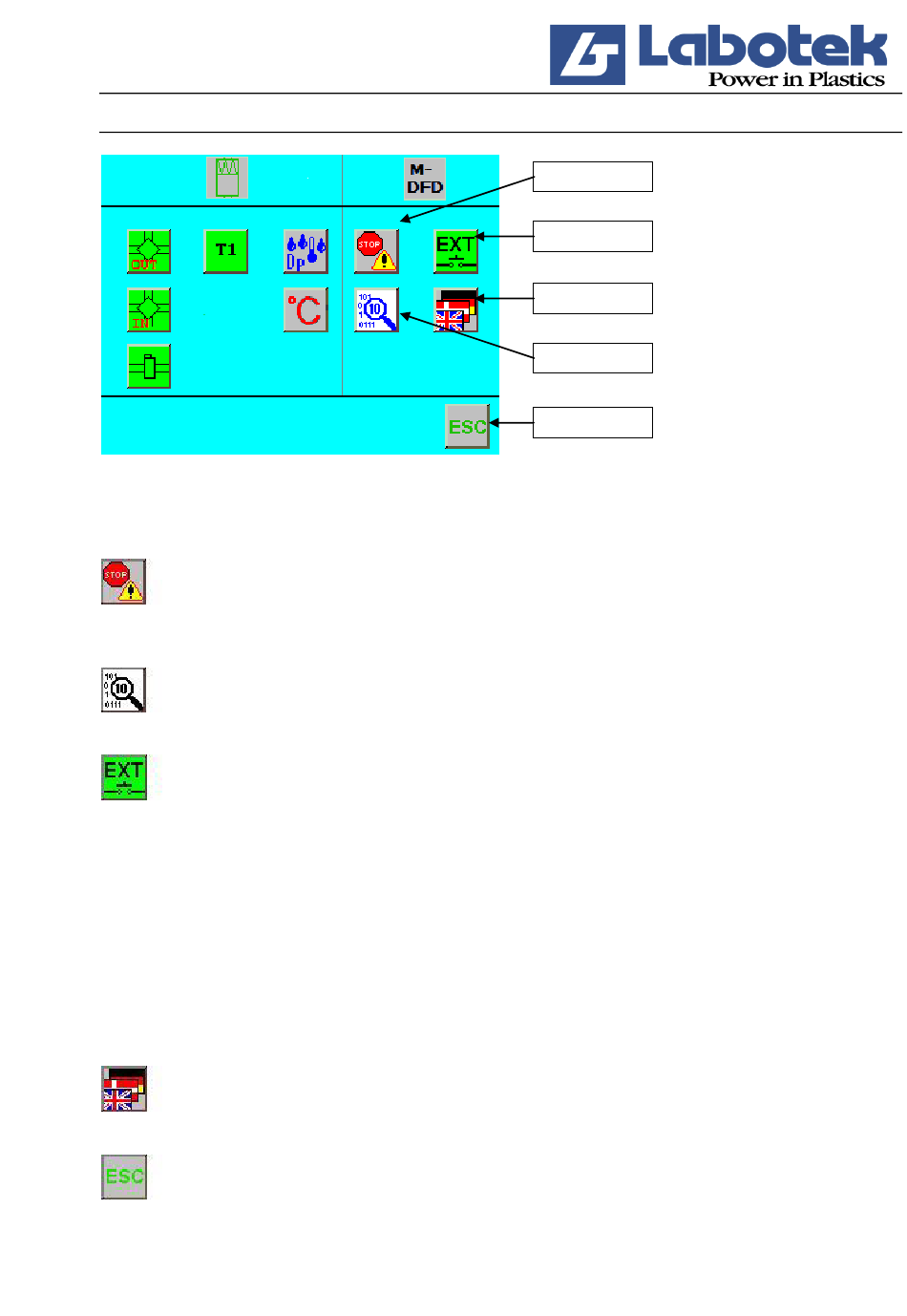

Desiccant Flex Dryer DFD
