Rev. 01

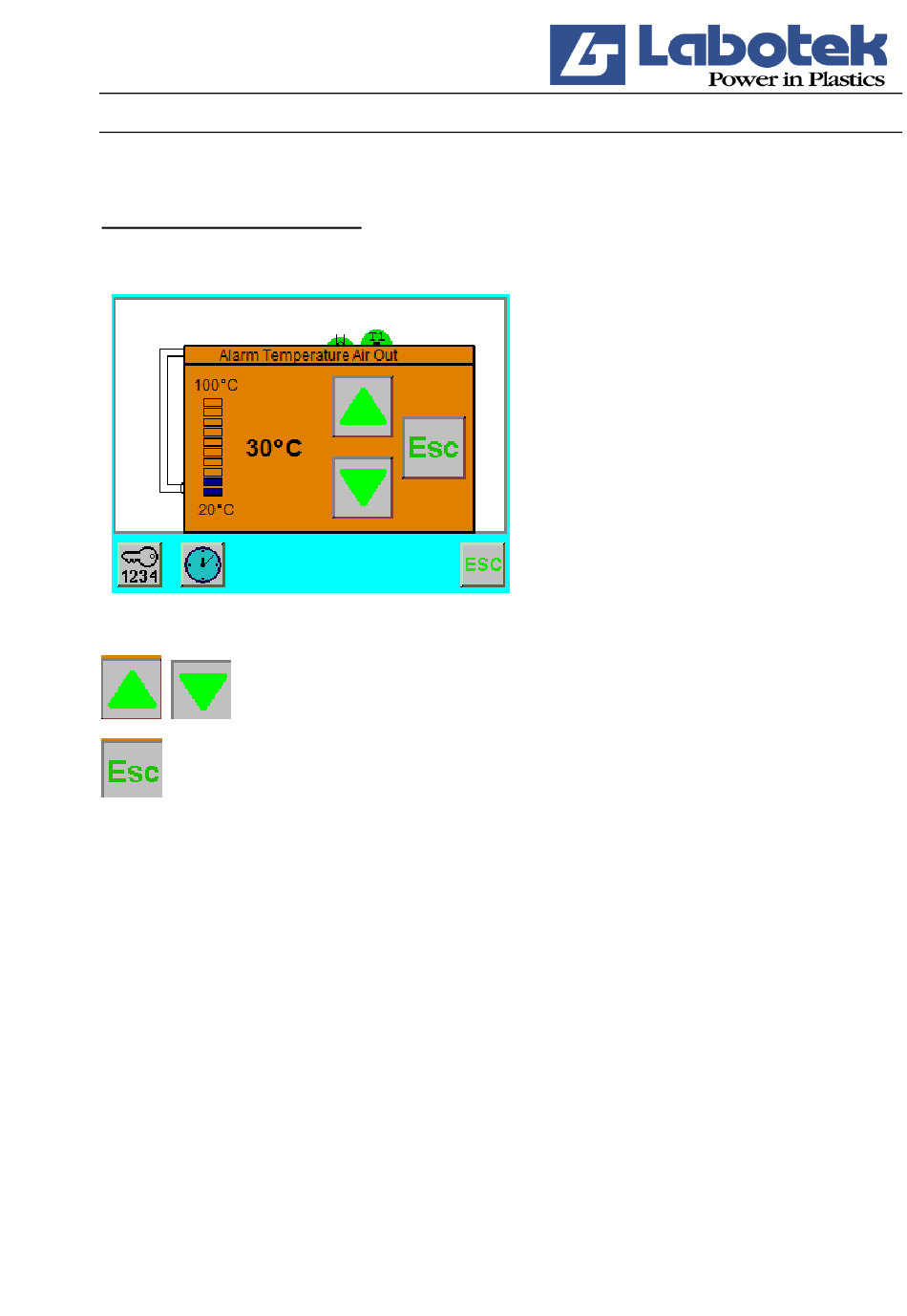

5.1.4 Options Set-up
Process air temperature alarm: The option allows the monitoring of the process air temperature
to DH hoppers. Required implementation of Pt 100 sensor for use option. If the selected alarm limit
temperature is exceeded the blower of dry air and DH hoppers stop.
UP/DOWN: These buttons allow access to select the process air temperature
alarm set point.
ESC: Brings you back to the setup screen.
Desiccant Flex Dryer DFD
Side 21 af 40
