Section on the left:
Section on the right: Four buttons for options, for the total machine.
Drying system:
OFF/ON choice of the process air temperature alarm with Pt 100 sensor. Parameter
for alarm temperature is entered in set-up menu via parameter setting.
OFF/ON choice of the process air cooler with regulating of the max. process air
temperature Remark: Process air Pt100 sensor shall be installed to use this option.
Parameter for the max. process air temperature is entered in set-up menu via
parameter setting.
OFF/ON choice of the return-air cooler with regulating of the max. return-air
temperature. Parameter for the return air temperature is entered in set-up menu via
parameter setting.
OFF/ON choice of the return-air filter alarm.
OFF/ON choice of the dewpoint measurement. The optional dewpoint
measurement device is activated here and the dewpoint will be shown continuously
on the operating screen.
Choice of temperature scale, either °Celsius or °Fahrenheit. Choice is shown on the
button. The default value is Celsius.

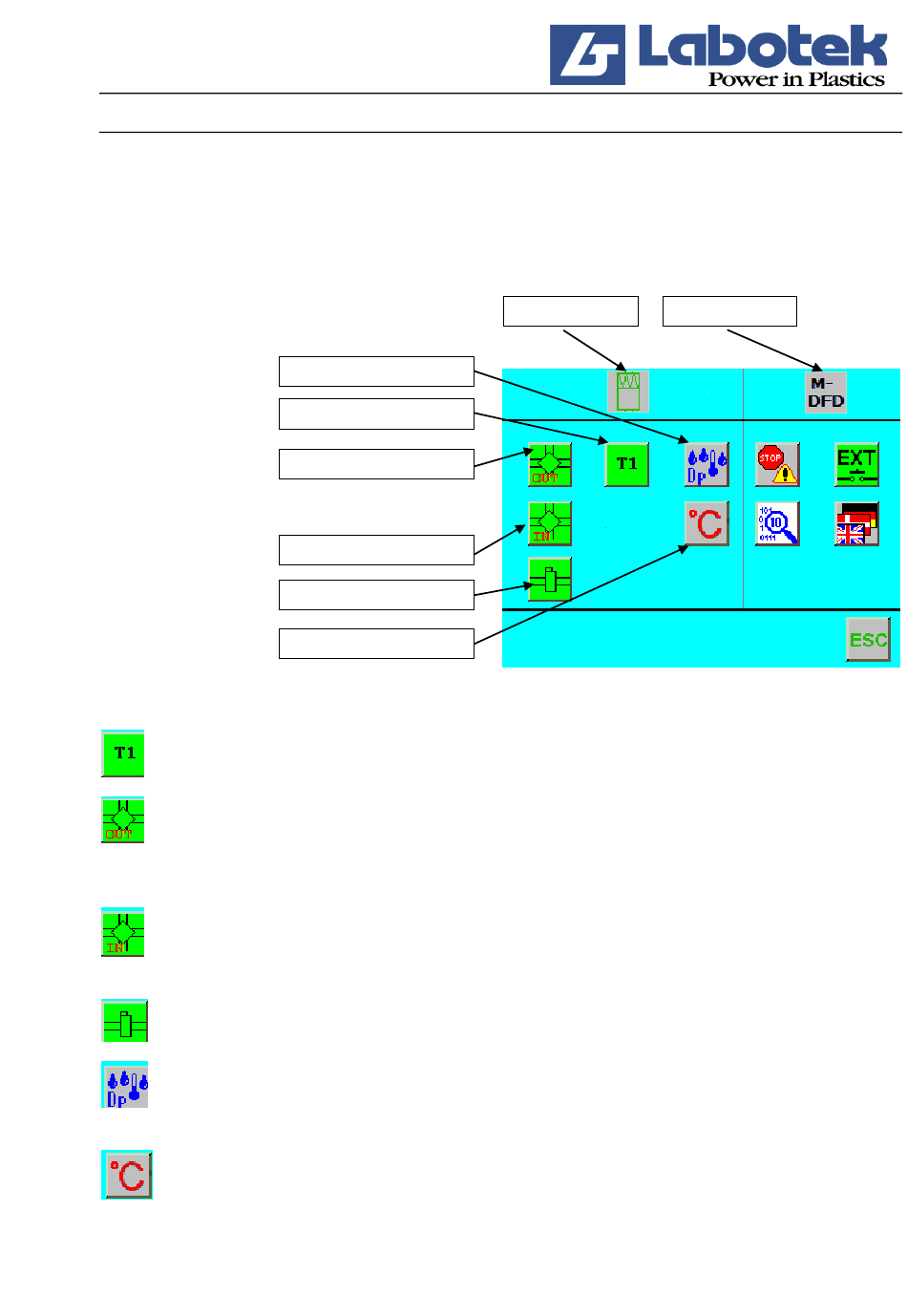

Desiccant Flex Dryer DFD
Six buttons for options, for the Drying system.
Dew point sensor
Process air temp./alarm
Process air cooler
Return air køler
Filter alarm
Scale 0°C/0°F
Drying system Total machine
