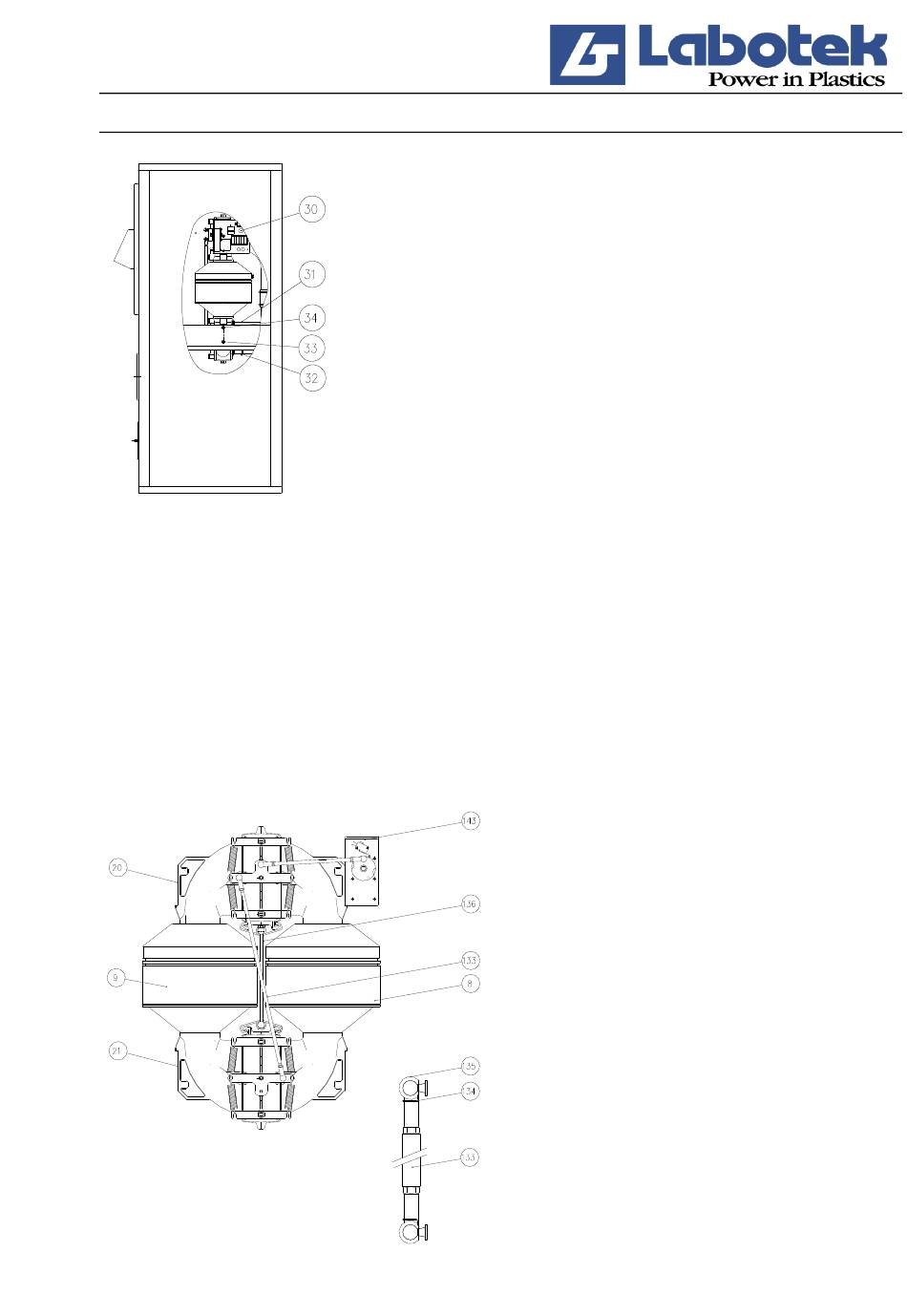

8.1.2 Removing the desiccant bed assembly
1.
Remove the cables from the heating elements and the thermistors in the terminal box (143).
2.
Remove the tension rod (133) that runs between the two valve units (20) and (21). To remove
the tension rod dismount the locking rings (134) on the toggle joints (135).
3.
Remove the valve bolts (136) that bind the two valve units.
4.
Separate the valve units from the desiccant beds (8) and (9).
5.
The desiccant bed can now be replaced.
R1109
Desiccant Flex Dryer DFD
