Adjustments - Tektronix 511 Instruction Manual

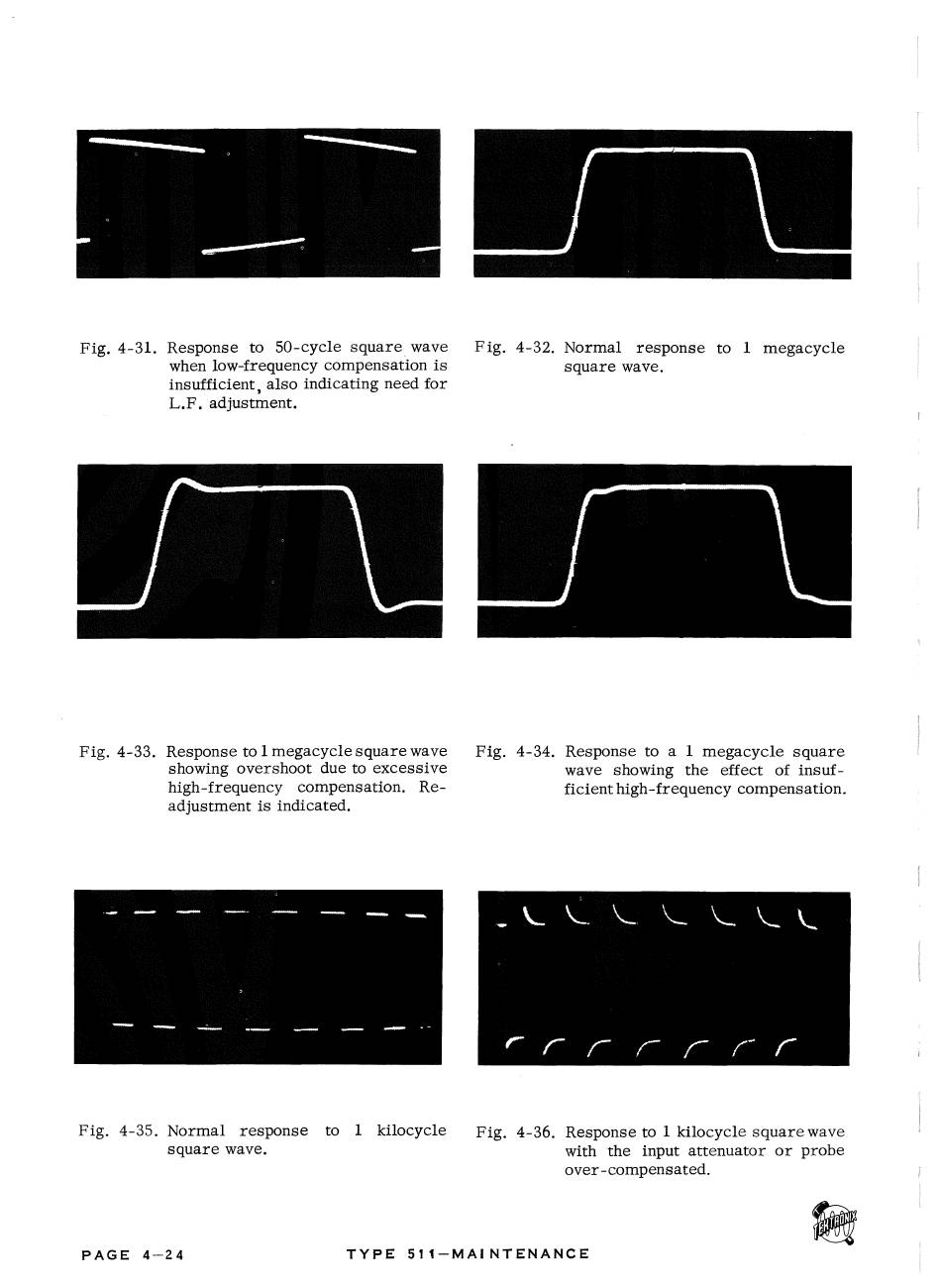

Fig. 4-31. Response to 50-cycle square wave
when low-frequency compensation is
insufficient s also indicating need for
L.F. adjustment.
Fig. 4-33. Response to 1 megacycle square wave
showing overshoot due to excessive
high-frequency compensation. Re­
adjustment is indicated.
Fig. 4-35. Normal response
square wave.
P A G E 4 - 2 4
Fig. 4-32. Normal response to 1 megacycle
Fig. 4-34. Response to a 1 megacycle square
_ k.
to 1 kilocycle
Fig. 4-36. Response to 1 kilocycle square wave
T Y P E 5 1 1 - M A I N T E N A N C E
square wave,
wave showing the effect of insuf­
ficient high-frequency compensation.
k_.
r r r r r r r
with the input attenuator or probe
over-compensated.
V. v.
