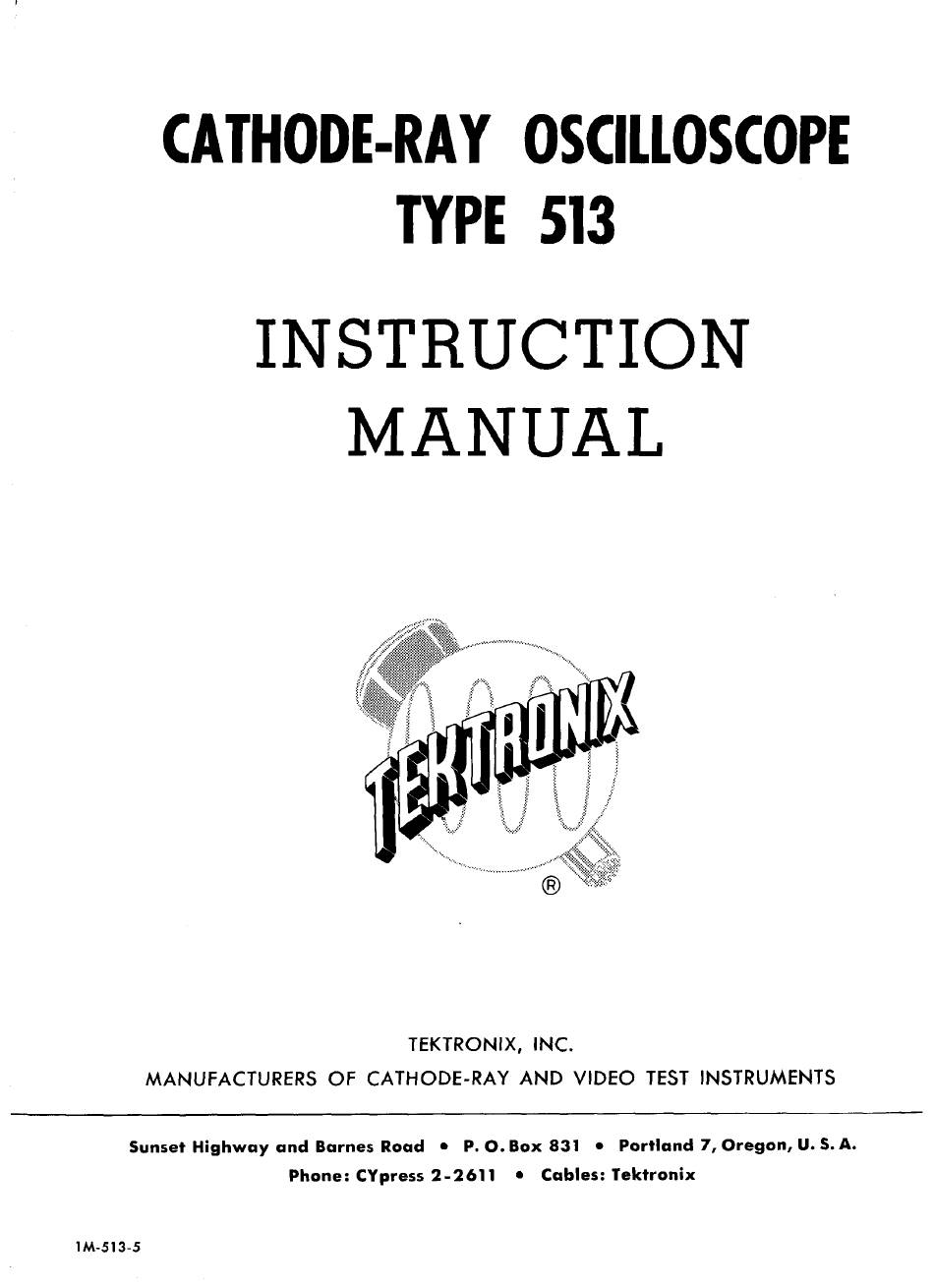

CATHODE-RAY OSCILLOSCOPE
TYPE 513
INSTRUCTION
MANUAL
TEKTRONIX, INC.
MANUFACTURERS OF CATHODE-RAY AND VIDEO TEST INSTRUMENTS
Sunset Highway and Barnes Road • P.O.Box 831 • Portland 7, Oregon, U. S. A.
Phone: CYpress 2-2611
•
Cables: Tektronix
1M-513-5

Advertisement

loading

Related Manuals for Tektronix 513

Summary of Contents for Tektronix 513

  • Page 1 CATHODE-RAY OSCILLOSCOPE TYPE 513 INSTRUCTION MANUAL TEKTRONIX, INC. MANUFACTURERS OF CATHODE-RAY AND VIDEO TEST INSTRUMENTS Sunset Highway and Barnes Road • P.O.Box 831 • Portland 7, Oregon, U. S. A. Phone: CYpress 2-2611 • Cables: Tektronix 1M-513-5...
  • Page 2 NOTE This instruction manual has been prepared to cover TEKTRONIX Type 513 Oscilloscopes of all serial number ranges. Text, diagrams, and parts lists have been expanded to incorporate all cir ­ cuit modifications adopted during the course of manufacture. The serial ranges of instruments to which various modifications were applied before shipping from the factory have been noted wher ­...

  • Page 3: Table Of Contents

    CONTENTS DESCRIPTION SECTION 1 Characteristics. Functions of Controls and Connections. OPERATING INSTRUCTIONS SECTION 2 First-Time Operation. CRT Adjustments. Horizontal-Deflection Sys ­ tem. Sweep Stability. Trigger Selector. Trigger Amplitude. Trigger Rate Generator. Sweep Time. Recurrent Sweep. Single Sweep. Sweep Magnifier. Ext. Sweep Input. Delay Trigger and Gate Generator. Sweep Output.

  • Page 5: Description

    SECTION 1 DESCRIPTION The Tektronix Type 513D is a portable, self-contained, precision instrument specifically designed for displaying a plot of the variations with respect to time of a voltage pulse or wave, with self-contained means of measuring its duration and magnitude. It is primarily intended for study of short duration pulses.
  • Page 6 .05 volts to 50 volts full scale, con ­ Front panel binding post, or through access tinuously variable from zero. Accuracy within panel via .03 mfd. Capacitor RC - .003 sec. 2% of full scale. DESCRIPTI ON TYPE 513...
  • Page 7 However, the factory will supply listed below: special attenuators on order. Oscilloscope Probe 10X The Tektronix Type 500 Scope-Mobile pro ­ Binding post adapter vides a sturdy, yet portable support for the Power cord Type 513D. With its large, rubber-tired wheels,...
  • Page 8 ing instructions for limitations of use. Current TRIGGER AMP. OR EXT. SWEEP ATTEN. -------------- from the 2225-volt terminal should not exceed 8 ma for continuous use or 15 ma for inter ­ Dual potentiometer. Front section controls mittent use. bias applied to trigger amplifier tube (V103) and thereby determining the size of the trigger pulse required to start the multivibrator.
  • Page 9 Potentiometer (screw ­ VERT. POS. ADJUST ----- driver adjustment), to set the range over which Variable resistor controlling the front panel VERT. POSITION control will SCALE ILLUM. ----- brightness of the lamps which illuminate the operate. TYPE 513 DESCRI PTI ON...

  • Page 10: Operating Instructions

    ASTIGMATISM 5. Advance the SWEEP STABILITY control un ­ wise til a sweep appears. 6. Adjust the VERT. POSITION until the line is Center FOCUS in the center of the screen. Counterclockwise INTENSITY 2 — 1 TYPE 513 OPERATING INSTRUCTIONS...
  • Page 11 The triggered sweep makes it possible starts another sweep. Thus the sweep time must to view pulses such as used in radar and be a multiple of the signal period, or expressed TYPE 513 OPERATING INSTRUCTIONS...
  • Page 12 100 ohm load. This waveform may be in the trigger amplifier and therefore the ampli ­ used to trigger external equipment at the same tude of the impulse which reaches the multi ­ 2 — 3 TYPE 513 OPERATING INSTRUCTIONS...
  • Page 13 Provision has been made to compen ­ The operating procedure is: Turn the SWEEP sate for variations caused by different tubes, MAGNIFIER POSITION to OUT. Adjust the sweep etc. , by screwdriver adjustments inside the case. TYPE 513 OPERATING INSTRUCTIONS 2 — 4...
  • Page 14 (peak) is available at the coaxial connector the screen. This adjustment will in no way marked DELAY TRIGGER OUT. This connection change any of the calibrations of the instrument. is terminated internally with a 4.7 К resistor, TYPE 513 - OPERATING INSTRUCTIONS 2 — 5...
  • Page 15 However, this probe can be used within its can be observed without regard to the DC compo ­ limitations with the Type 513 and can be pur ­ nent. Additional gain, achieved by means of a chased separately. Instructions for adapting...
  • Page 16 This panel is split in two sections with two wire connections are restored. Also readjust guides machined at the junction. This will allow -2000 volts, if its setting has been changed, the deflection plate leads to be supported away as outlined in Section IV. TYPE 513 OPERATING INSTRUCTIONS...

  • Page 17: Circuit Information

    BLOCK-DIAGRAM The Block Diagram of the TEKTRONIX Type by means of a bias arrangement in conjunction 513 Oscilloscope shows the major units and per ­ with the external sweep output sawtooth voltage. tinent waveforms present at various portions of the circuit.
  • Page 18 The vertical input switch selects various voltage levels from the The individual circuits of the TEKTRONIX voltage divider and applies them either to the Type 513 Oscilloscope are described in the vertical amplifier, or, in two switch positions, pages following. HORIZONTAL-DEFLECTION SYSTEM...
  • Page 19 R2 0 6, labeled MAGNIFIER the Type 513 oscilloscope which blanks off the POSITION, to the proper level so that conduction beam just as it reaches the end of the sweep, and does not begin until the desired percentage of thus prevents flare from occurring.
  • Page 20 1 and the probe can then be touched to the CAL. to both the vertical amplifier system and to OUT terminal to obtain two accurate voltages for CAL OUTPUT front panel connector. In the adjusting the probe. TYPE 513 CIRCUIT INFORMATION...
  • Page 21 CALIBRATOR driver adjustable 10k resistor labeled C.F. ADJ. adjusts the d c voltage at the cathode of The calibrating voltage generator consisting of cathode -follower V4 so that it is at the same a multivibrator, V509, a 12AU7, operating at a potential as the top of potentiometer R49 at its frequency of about 1000 cycles, generates the junction with R45.
  • Page 22 R424, R425, R426, connected between the + 225- volt bus and ground. The error signal is ampli ­ The TEKTRONIX Type 513 oscilloscope is fied in V409 and again in V408 and applied to equipped with a 5XP cathode-ray tube. This...

  • Page 23: Maintenance

    ­ when better components become available, they tion in pan or sink deep enough to cover are put into TEKTRONIX instruments as soon filter when laid flat. Agitate filter up and as possible. As a result of constant improve ­...
  • Page 24 IT IS SUGGESTED THAT ALL CON ­ by adjustment of potentiometer R425 on the NECTIONS BE MADE WITH THE POWER sweep and power supply chassis marked +225 OFF. (screwdriver adjust). This check should always MAINTENANCE TYPE 513...
  • Page 25 (C114, C115, C116, C117) it is suggested that all four capacitors D.C. OUT PUT LEVEL be obtained from TEKTRONIX, INC., and be To obtain proper CRT focus, the average replaced as a group. When ordering replacement potentials of the horizontal and vertical deflec ­...
  • Page 26 CAL. ADJ., located at rear of verti ­ so that the electrical zero and the ZERO cal amplifier chassis until equal deflections marking on the scale coincide. are obtained. TYPE 513 MAINTENANCE...
  • Page 27 (30 to 60 cycles). The CAL INPUT switch to the 15 volts CAL. RANGE position. Adjust C3 on the right side of the Tektronix Type 104A and Type 105 Square Wave Generators provide a suitable signal. The VERT. DEFL. SENS, switch.
  • Page 28 513D oscilloscope. The risetime of the the VERT. DEFL. SENS, switch. square wave generator should not exceed .02 microseconds. The Tektronix Type 105 9. Move the VERTICAL INPUT switch to the 5 volt TEST position, change the sweep time to square wave generator will provide a suit ­...
  • Page 29 (L13). At this point, with proper adustment, the waveform will tend to 1. In the Type 513D (but not in the 513) the have a slight overshoot on the front corner. AN DELAY NETWORK must be disconnected before EFFORT SHOULD BE MADE IN MAKING THESE any adjustments are made on the Output Ampli ­...
  • Page 30 1 m c square wave LAY NETWORK SHOULD NOT BE AT ­ having a risetime of .02 microseconds or less. TEMPTED WITHOUT FIRST VERIFYING The Tektronix Type 105 Square Wave Generator NORMAL TRANSIENT RESPONSE OF provides a suitable signal. THE OUTPUT AMPLIFIER, AS EX ­...
  • Page 31 Delayed Trigger chassis). An insu ­ output will be somewhat less , dependent on the lated screwdriver should be used to make this ad ­ duty cycle, if the sweep is free running. TYPE 513 - MAINTENANCE...

  • Page 32: Diagrams And Parts List

    3-12 µµf Var. 500 V 281-007 3-12 µµf Cer. 101 - up Var. 500 V 281-007 Cer. 101 - up 3-12 µµf 281-007 Var. 500 V Cer. C 1 0 101 - up 3-12 µµf TYPE 513 - PARTS LIST...
  • Page 33 (with C40) 101-222X .01 µf Fixed 400 V 285-510 101-1770 .1 µf Fixed 400 V 285-526 1771 - up .005 µf Cer. Fixed 500 V 283-001 101 - up .1 µf Fixed 400 V 285-526 TYPE 513 - PARTS LIST...
  • Page 34 CORRECTION TYPE COMPOS! ТЕ MANUAL C 3 7 1 01 — UP 250 PF FIXED 500V 2 8 3 — & I ‘ 5 MiiCA 1 01 — up .1 μF FIXED 400V 285-526 C3 9 1 01 -UP .01 μF FIXED 400V 265-510...
  • Page 35 455 - up .005 µf Cer. C128 500 V 283-000 101-454 .001 µf Cer. Fixed 500 V 283-001 455 - up .005 µf Cer. Fixed 450 V -20+50% 290-002 C129 101 - up Fixed 8 µµf TYPE 513 - PARTS LIST...
  • Page 36 Fixed 400 V 285-510 C407 285-526 C408 Fixed 400 V .1 µf C409 .01 µf Fixed 400 V 285-510 C410 40 µf(2x20) Fixed 450 V -20+50% 290-036 C411.1 40 µf(2x20) Fixed 450 V -20+50% 290-036 TYPE 513 - PARTS LIST...
  • Page 37 C506 101 - up 100 µµf Mica Fixed 500 V 283-505 C 507 500 V 283-001 C508 101 - up 5000 µµf Cer. Fixed 101 - up 5000 µµf Cer. Fixed 500 V 283-001 C509 TYPE 513 - PARTS LIST...
  • Page 38 C512 101 - up 20 µf Fixed 450 V -20+50% 290-037 (with C103.1) C513 101-274 .01 µf Fixed 400 V 285-510 275-1019 .01 µf Fixed 400 V Selected 285-510 1020 - up .001 µf Mica Fixed 500 V 283-526 C514 101 - up .1 µf(l/3 3x0.1) PMC Fixed...
  • Page 39 INDUCTORS 101 - up 1.3-2.2 µh Var. 114-003 101 - up 3.3-7.0 µh Var. 114-017 101 - up .92-1.5 µh Var. 114-028 101 - up 2.4-4.4 µh Var. 114-007 101 - up Delay Network Inductor(40 section) Fixed 108-039 101 - up Dist.
  • Page 40 1/2 w R35.1 47 Ω Comp. 302-470 1/2 w Fixed R35.2 101 - up 47 Ω Fixed Comp. 302-270 1/2 w 101 - up 27 Ω 302-101 1/2 w Fixed Comp. 100 Ω 101 - up TYPE 513 - PARTS LIST...
  • Page 41 302-124 Comp. 120 k Fixed 1771 - up 311-026 Comp. 101-1770 100 k Var. 311-036 Comp. Var. 500 k 1771 - up 311-015 Var. 101-1770 10 k 311-026 Comp. Var. 100 k 1771 - up TYPE 513 - PARTS LIST...
  • Page 42 302-223 Fixed Comp. R6 0 22 k 1/2 w Х164-363 Fixed Comp. 302-183 18 k 1/2 w 364-1770 302-332 1/2 w F ixed Comp. 3.3 k 1771 - up 302-104 Fixed Comp. 101-1770 100 k 1/2 w 302-124 120 k 1/2 w Fixed Comp.
  • Page 43 101 - up 1/2 w Fixed Comp. 302-470 R95.3 47 Ω Fixed Comp. 302-470 R95.4 101 - up 47 Ω 1/2 w 302-470 R95.5 101 - up 1/2 w F ixed Comp. 47 Ω TYPE 513 - PARTS LIST 5-1 1...
  • Page 44 3.9 meg Fixed 101 - up 1/2 w Comp. 302-224 R117 220 k Fixed 302-104 R118 101 - up 100 k 1/2 w Fixed Comp. 311-026 R119 101 - up 100 k Var. Comp. TYPE 513 - PARTS LIST 5-1 2...
  • Page 45 101- •1019 15 meg 302-106 Comp. 10 meg 1/2 w Fixed 1020 - up Fixed Prec. 309-110 101 - up 200 k R139 302-226 22 meg 1/2 w Fixed Comp. R140 101 - up TYPE 513 - PARTS LIST 5-1 3...
  • Page 46 1/2 w Fixed 302-470 25 k R162 101 - up 25 w Fixed 312-551 R163 101 - up 330 Ω Fixed Comp. 304-331 82 Ω 1/2 w Comp. R164 101 - up Fixed 302-820 TYPE 513 - PARTS LIST 5-1 4...
  • Page 47 101 - up 309-045 Fixed Prec. 100 k 1/2 w R184 101 - up 1/2 w Prec. 309-045 100 k Fixed R185 101-1019 309-044 1/2 w Fixed Prec. 95 k 1020 - up TYPE 513 - PARTS LIST 5-1 5...
  • Page 48 101 - up Fixed 306-223 10 k Comp. 304-103 R203 101 - up Fixed Comp. R204 Fixed 304-472 101 - up 4.7 k R205 680 k 1/2 w Comp. 302-684 101 - up Fixed TYPE 513 - PARTS LIST 5-1 6...
  • Page 49 1/2 w 304-823 R408 101 - up 82 k Fixed Comp. 302-223 R409 101 - up Fixed Comp. 22 k 1/2 w 302-474 Fixed Comp. R410 101 - up 470 k 1/2 w TYPE 513 - PARTS LIST 5-1 7...
  • Page 50 F ixed 1020 -1612 Fixed Comp. 304-391 1613 - up 390 Ω 311-002 50 Ω Var. R431 302-470 Fixed Comp. 47 Ω 1/2 w R432 302-224 1/2 w Fixed Comp. R433 220 k TYPE 513 — PARTS LIST 5-1 8...
  • Page 51 R434 150 k 1/2 w Fixed Comp. 302-154 101 - up R435 68 k 1/2 w Fixed Comp. 302-683 101- ■157 302-474 158 - up 470 k 1/2 w Fixed Comp. Fixed R436 101 - up 4.7 k Comp. 306-472 Fixed Comp.
  • Page 52 Fixed 2 meg Prec. 1020 - up use 302-474 Comp. 470 k 1/2 w Fixed R532 101-274 use 302-684 Fixed Comp. 680 k 1/2 w 275-1019 310-103 Prec. 4 meg Fixed 1020 - up TYPE 513 - PARTS LIST 5-20...
  • Page 53 6.8 k F ixed 304-103 10 k Fixed Comp. 397 - up 302-104 Comp. R559 101 - up 100 k 1/2 w Fixed 309-076 300 Ω 1/2 w Fixed Prec. R601 X947 - up TYPE 513 - PARTS LIST 5-2 1...
  • Page 54 ELECTRON TUBES Selected 157-013 12AW6 Input pre-amplifier 101 - up Selected 2nd stage pre-amplifier 157-013 101 - up 12AW6 Preamplifier cathode -follower 154-039 101 - up 12AT7 Selected 157-010 Gain Control cathode-follower 101 - up 12AT7 154-032 Probe power cathode-follower 101 - up 154-042 12AW6...
  • Page 55 101 - up V401 V4 0 2 101 - up + 800 v rectifer, doubler 154-035 154-018 V403 101-1034 6AS5 + 800 v series regulator 154-044 1035 - up 12B4 + 800 v series regulator TYPE 513 - PARTS LIST 5-23...
  • Page 56 Trigger rate gen. blocking oscillator 101 - up V507 154-039 Trigger rate gen. cathode-follower V508 101 - up 12AT7 154-041 Cal. multivibrator 101 - up 12AU7 V509 154-041 Cal. limiter and cathode-follower 101 - up 12AU7 V510 TYPE 513 - PARTS LIST...
  • Page 57 Single Pole, Double Throw, toggle 260-067 6 Amp. , 250 v: POWER SW501 101 - up Double-Pole, Single-Throw, toggle Furnished withR501 DELAY TRIGGER 260-034 SW502 101 - up 2 wafer 6 position rotary TRIGGER RATE 262-035 GENERATOR TYPE 513 — PARTS LIST 5-2 5...
  • Page 58 NOTE Unless otherwise specified, all of the voltage read ­ ings were taken with a de vacuum-tube voltmeter having an input resistance of 11 megohms. The wave ­ forms shown were reproduced from actual photo ­ graphs. There will be considerable variation between instruments because of normal manufacturing toler ­...
  • Page 60 I4A «185 I2AU7 95 k RI90 I50K INTENSITY! AOOED I __ (•AKTS Ui TO V50I GRID CAftUr* VALUti VIA ,0501 ON -140V -300V or PARTS MARKED DELAY GATE CHASSIS ■2IOOV UNREG. CRT CATHODE*] UN8LANKING TYPE 513 CATHODE-RAY OSCILLOSCOPE SWEEP CIRCUIT...
  • Page 61 + 225V note CAPACITOR VALUES AND LARGER ARE IN PICOFARADS (IO -12 FARADS), VALUES LESS THAN ARE IN MICRO ­ FARADS (IO -6 FARADS) UNLESS OTHER ­ WISE STATED 2-6-53 TRIGGER RATE GENERATOR TYPE 513 CATHODE-RAY OSCILLOSCOPE...
  • Page 62 ON SWEEP CHASSIS _______ A SWEEP CATHODE TYPE 513 OSCILLOSCOPE DELAYED GATE & TRIGGER...
  • Page 63 ► +225 SWIOID TRIGGER AMPLIFEP TO OUTPUT AMP GRID LINE LB.I REMOVED ADDED S/W 222 SiNlC* CALIBRATOR 2OMF TO SWEEP AMP SWtOIC V5I0 I2AU7 270K R554 LOW FREQ 275MF 82OK 275MF ОГ PAP7S FWMED VERTICAL AMPLIFIER TYPE 513 OSCILLOSCOPE AND CALIBRATOR...
  • Page 64 FOR EARLIER VALUES OF PARTS MARKED 4--&-S4 T.D.B. 10-7-52 L.AP DELAY NETWORK TYPE 513 CATHODE-RAY OSCILLOSCOPE...
  • Page 65 »SMWCD SCC fWTS L/.S/ 8-19-55 COR CARUCR VACUCS OF PARTS WAÀtCD^jgjfa DISTRIBUTED AMPLIFIER TYPE 513 OSCILLOSCOPE...
  • Page 66 TYPE 513 OSCILLOSCOPE POWER SUPPLY...
  • Page 67 AND LARGER ARE IN PICOFARADS (IO -12 FARADS), VALUES LESS THAN ARE IN MICROFARADS (lO'^FARAOS) UNLESS OTHERWISE STATED TYPE HIGH VOLTAGE POWER SUPPLY T.D.b. SEE PARTS t/jr FOR EARLIER VALUES OF PARTS MARKED 10-30-52 HIGH VOLTAGE OSCILLATOR TYPE 513 CATHODE-RAY OSCILLOSCOPE...
  • Page 68 ABBREVIATIONS USED IN OUR PARTS LISTS Cer. ceramic milli Comp. composition Ω electrolytic, metal cased Poly. polystyrene electrolytic, metal tubular Prec. precision farad paper tubular henry Tub. tubular thousands of ohms working volts de megohms Var. variable micro watt jU/X micromicro wire wound guaranteed minimum value...
  • Page 69 WARRANTY All Tektronix instruments are fully guaranteed against defective materials and workmanship for one year. Should replacement parts be required, whether at no charge under warranty or at established net prices, notify us promptly, including sufficient details to identify the required parts.
