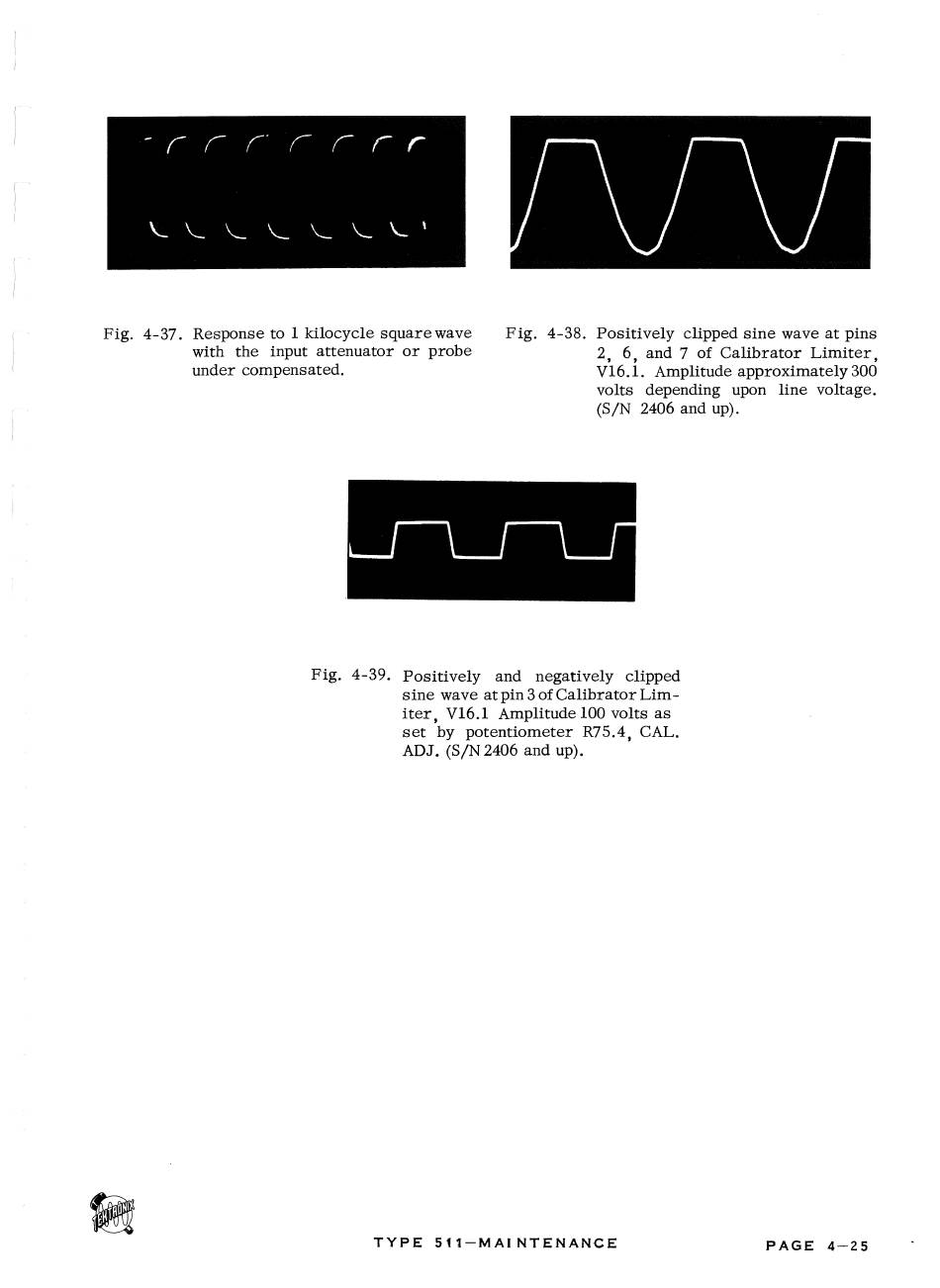

Fig. 4-37. Response to 1 kilocycle square wave
with the input attenuator or probe
under compensated.
Fig. 4-39. Positively and negatively clipped
sine wave at pin 3 of Calibrator Lim­
iter, V16.1 Amplitude 100 volts as
set by potentiometer R75.4, CAL.
ADJ. (S/N2406 and up).
T Y P E 5 1 1 - M A I N T E N A N C E
Fig. 4-38. Positively clipped sine wave at pins
2, 6, and 7 of Calibrator Limiter,
VI6.1. Amplitude approximately 300
volts depending upon line voltage.
(S/N 2406 and up).
