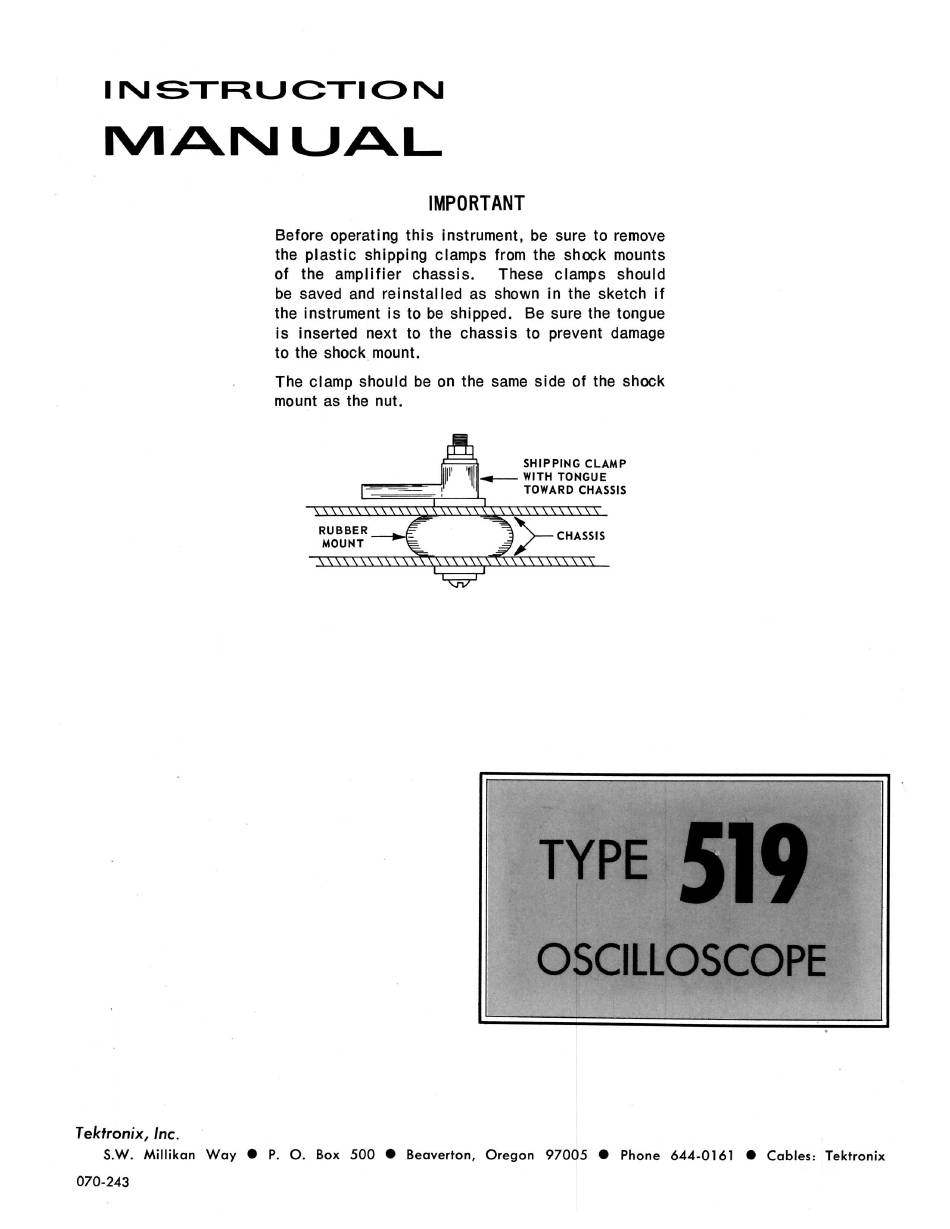

Tektronix 519 Instruction Manual

INSTRUCTION
MIAN UAL
IMPORTANT
Before operating this instrument, be sure to remove
the plastic shipping clamps from the shock mounts
of the amplifier chassis. These clamps should
be saved and reinstalled as shown in the sketch if
the instrument is to be shipped. Be sure the tongue
is inserted next to the chassis to prevent damage
to the shock mount.
The clamp should be on the same side of the shock
mount as the nut.
SHIPPING CLAMP
~<a—— WITH TONGUE
TOWARD CHASSIS
RUBBER
MOUNT CHASSIS
Tektronix, Inc.
S.W. Millikan Way @ P. O. Box 500 @ Beaverton, Oregon 97005 @ Phone 644-0161 @ Cables: Tektronix
070-243
