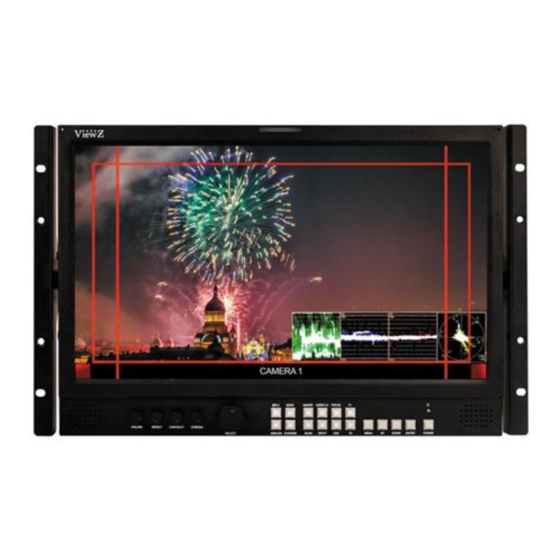

- Page 1 18.5” HD-SDI / 3G Broadcast Monitor VZ-185RM-P USER GUIDE(v1.2) Driving Visual Innovation Please read this manual carefully to ensure proper use, including connection and operation. Also, keep this manual for future use.
- Page 2 Class B Equipment (Broadcasting and Telecommunications Equipment for Home Use) This equipment is for home use (Class B) and granted a Certificate of Conformity for electromagnetic radiation. It is designed for home use and can be used in all regions. (These images are for illustrative purposes only.
- Page 3 Excessive bending of the power plug may cause disconnection or a short circuit. - Please note that disconnection may cause a fire or accident due to a short circuit. Do not remove the power cord while using the monitor. - An electric shock occurring during disconnection may damage the monitor. Installation Instructions If the monitor is to be installed and used in a special place rather than under normal conditions, the surroundings may cause serious quality problems.
- Page 4 To mount a wall-mount monitor on the wall, please consult an expert. - Installation by an unqualified person may cause personal injury. Make sure to use the designated mounting device. Cleaning and Use Instructions Do not spray a cleaning solution directly on the monitor. - Directly spraying on the monitor may significantly increase the risk of discoloration, cracks, or peeling of the LCD panel surface.
- Page 5 Do not cover the air vent. - Improper ventilation may cause monitor failure or a fire. If the product is not used for a long time, disconnect the power cord. - Dust buildup may result in an electric shock or short circuit or fire due to heat output, ignition or deteriorating insulation.
- Page 6 Checking Control Buttons / Names & Functions of I/O Port ……………………...… Checking Control Buttons Names & Functions of I/O Port Main Features………………………………….…..……………………………………… Menu Tree & Control…………………………… ………………………………..……… Menu Tree Menu Control To Get Started……………………...……………………………………………………… Menu Controls and Functions ………….……………..………………..……………..… Picture Settings. Color Settings Audio Settings Marker Settings...
- Page 7 Checking Control Buttons / Names & Functions of I/O Ports Checking Control Buttons 1. Volume 6. Short Keys & Programmable Keys 2. Bright 7. Menu 3. Contrast 8. Up / Down 4. Chroma 9. Enter 5. Main Select Jog 10. Power 1 2 3 4 5 7 8 9 10 2.
-
Page 8: Main Features
Main Features Internal SDI to HDMI Converter Closed Caption : CEA-608/708/Line21(SDI) Color Calibration (Gamma, Color Temperature 3200K, 6500K, 9300K) Waveform(YCbCr/RGB)/ Vectorscope Parade Support(SD/HD SDI) Selectable Y/R/G/B Histogram(SD/HD SDI) 3G SDI LEVEL A/B (YCbCr, RGB 4:4:4) Support. ... -
Page 9: Menu Tree & Control
4) Market Settings 5) Remote Settings 6) SDI Analyze 7) System Settings The picture above shows Audio Settings menus in ViewZ monitor. 2. Menu Control Menu control can be handled in two ways by 1) Main Select Jog 2) Front Keys ... -
Page 10: To Get Started
To Get Started To get ViewZ monitor started, connect required power and choice of your input signal. Turn on the power button on the back and the front. When not in use power button on the front will shut off the monitor. -
Page 11: Menu Controls And Functions
Aperture - used to control sharpness level from 0 to 24 (0 for smooth and 24 for edge) - ViewZ recommend to use internal pattern edge for easier selection NTSC Setup - used to control the difference black level when NTSCJ for Japan is used... - Page 12 Menu Controls and Functions 2. Color Settings Color Temp - used to control color temperature - users can choose 3200K, 6500K, 9300K, User 1, User 2, and User 3 - in user # mode, users can define RGB Gain and Bias values for own purpose ...
- Page 13 Menu Controls and Functions 3. Audio Settings Volume - used to control volume level of the internal speaker or audio out on the back of the monitor from 0 to 100 - shown in grey as it can be controlled by front knobs without entering the menu ...
- Page 14 Menu Controls and Functions 3. Audio Settings (Continued) Sound Channel (SDI) - used to set embedded audio channel for internal speaker or Audio Out - select from CH1, CH2, CH1+CH2, CH3, CH4, CH3+CH4, CH5, CH6, CH5+CH6, CH7, CH8, CH7+CH8, CH9, CH10, CH9+CH10, CH11, CH12, CH11+CH12, CH13, CH14, CH13+CH14, CH15, CH16, and CH15+CH16 - when CH1 is chosen, user can hear Ch1 from both speakers.
-
Page 15: Marker Color
Menu Controls and Functions 4. Marker Settings Marker On/Off - used to activate the marker function - Marker should be ON to use any features in Marker Setting menu Line Marker - used to select user’s desired marker type - available in off, 16:9, 4:3, 4:3(on air), 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 and 4:3 ... - Page 16 Menu Controls and Functions 5. Remote Settings To help users to control ViewZ monitor from the distance using own controller, ViewZ includes Remote port on the back of the monitor with 6 pins (Pin 7 and 8 are used for Power and Ground).
-
Page 17: Focus Assist
Menu Controls and Functions 6. SDI Analyze Focus Assist - used to color the pixels in the shape or boundary area of the image to inform the user to make the best focus Focus Assist Level - used to set the focus assist level from 0, the strongest, to 10, the weakest ... - Page 18 Menu Controls and Functions 6. SDI Analyze (Continued) Histogram Blend - used to select the transparency option of Histogram graph on the screen False Color - used to turn on and off False Color feature - False color feature utilizes a full spectrum of assigned color indicators, ensuring flawless shot exposure.
- Page 19 Menu Controls and Functions 7. System Settings Scan - used to change the scan mode among zero scan, over scan, and pixel to pixel - wen pixel to pixel is on, turn the main jog to move the position - when system setting is in pixel to pixel, marker features don't work ...
- Page 20 Menu Controls and Functions 7. System Settings (Continued) Remote ID - when more than 1 monitor is used, assign the monitor to user's desired number Backlight - to control backlight of screen from 0 to 100 User Key 1 & 2 - to assign programmable key 1&2 on front to user's desired / frequently used feature among source ID, blue/mono, DSLR scaling, false color, and Y clip guide ...
- Page 21 Menu Controls and Functions 7. System Settings (Continued) Power Saving - select between off and DPMS - when DPMS is selected and there's no input signal for longer than 15sec, monitor takes sleep mode - LED light on front: red-power off, green-power on, orange blink-no input, orange- DPMS(sleep mode) ...
-
Page 22: Specification
Specification VZ-185RM-P Display Screen Size 18.5 " 1366 X 768 Max Resolution Pixel Pitch 0.100mm X 0.3mm Brightness 250cd/㎡(Typical) Contrast Ratio 1000:1 Aspect Ratio 16:9 Viewing Angle (H/V) 178°/178° Color Depth 16.7M Input Connector 2 x BNC SDI (SD/HD/3G) 2Channel Inputs... - Page 23 10bit YCbCr 4:2:2 SMPTE 125M 525i (NTSC 59.94) 10bit YCbCr 4:2:2 ITU-R BT.601 625i (PAL 50) 10bit YCbCr 4:2:2 2K Format 2048 x 1080P (24/23.98/24sF/23.98sF) 10bit CVBS, NTSC(525/59.94i) , PAL(625/50i) Video 1080P (60/59.94/50) 1080i (60/59.94/50) ANALOG COMPONENT 1080P (30/29.97/25/24/23.98) 720P(60/59.94/50) 480i/480P/576i/576P/1080i/1080P HDMI VGA, SGA, XGA, SXGA, WXGA, WUXGA...
- Page 24 18.5” HD-SDI / 3G Broadcast Monitor Product Name Name Telephone Client Address Address Store Telephone Address Dealer (Store Purchase Date Warranty One (1) year from Location) Period purchase date (YYYY / MM / DD) Serial Number Purchase Price Consumer Dispute Resolution Standards Compensation Details Type of Consumer Claim Within Warranty...
- Page 25 ■ Damage is caused by external forces rather than internal defects. ※ Service Contact: #177 W. Orangethorpe Ave. Placentia, CA 92870 TEL. 1-714-996-1177 / 1-888-99-ViewZ The conditions not stated will be subject to the Consumer Dispute Resolution Standards. The above compensation is in accordance with 2 of Article 21 of the Consumer Protection Act.
- Page 26 Memo - 21-...
- Page 28 OPERATION MANUAL © Jan. 2014 by ViewZ USA □ All rights reserved. Reproduction or duplication, without permission of ViewZ USA of edition or contents in whole in part, any manner, is prohibited. □ Specifications and design are subject to change without notice...
