Chapter 2: Jumpers and Connectors

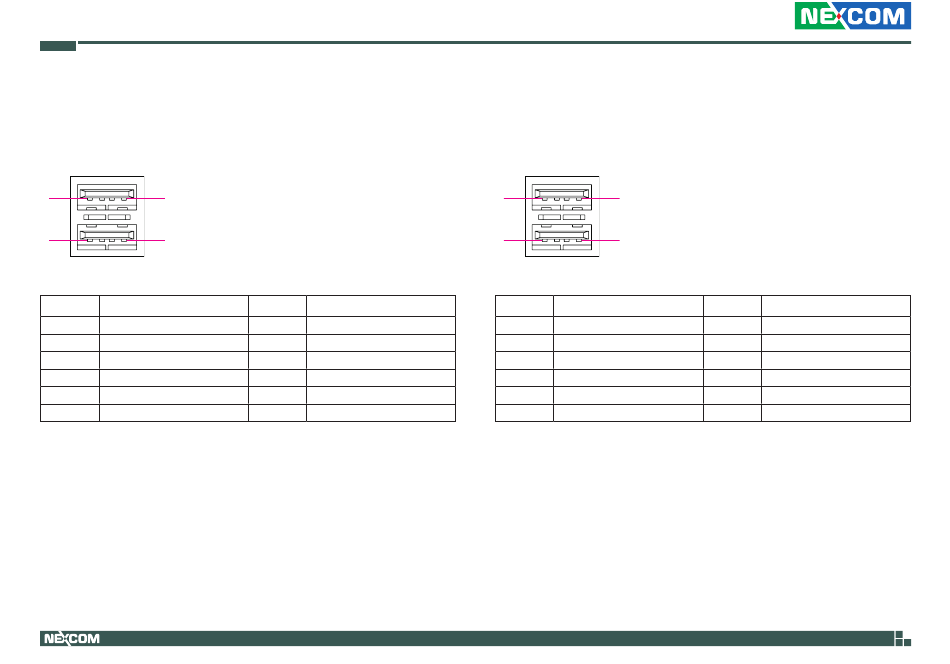

USB 2.0 Ports (N/A on NISE 3900E-H310)

Connector type: Dual USB 2.0 port
Connector location: CN3
5 9
1 4
Pin Definition
1 5V_USB4
3 USB2P_12
5 5V_USB4
7 USB2P_13
MH1 GND_CHASSIS
MH3 GND_CHASSIS
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB2N_12
4 GND
6 USB2N_13
8 GND
MH2 GND_CHASSIS
MH4 GND_CHASSIS

USB 2.0 Ports

Connector type: Dual USB 2.0 port
Connector location: CN1
5 9
1 4
Pin Definition
1 5VUSB2
3 USB2P_9
5 5VUSB2
7 USB2P_5
MH1 GND_CHASSIS
MH3 GND_CHASSIS
31
Pin Definition
2 USB2N_9
4 GND
6 USB2N_5
8 GND
MH2 GND_CHASSIS
MH4 GND_CHASSIS
