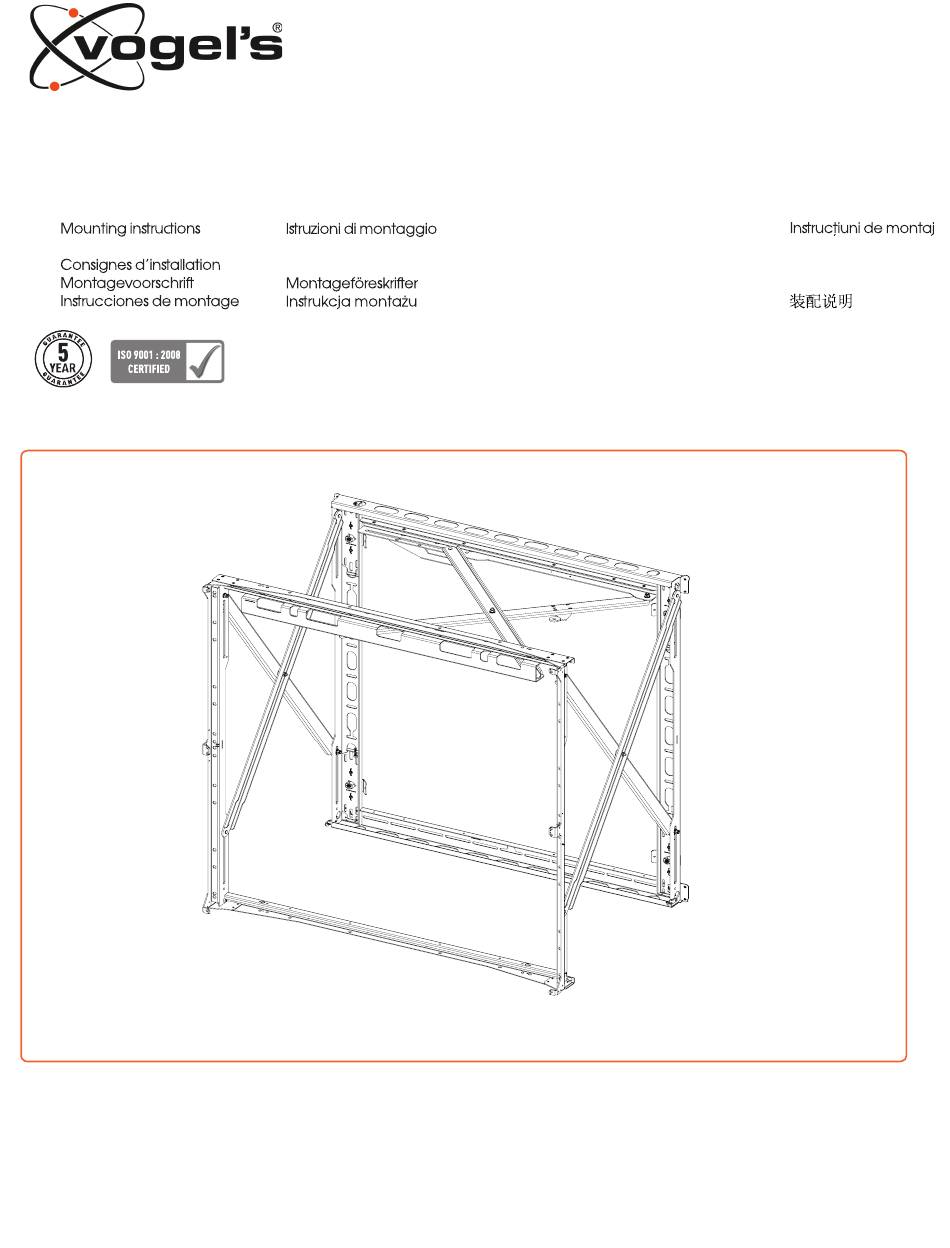

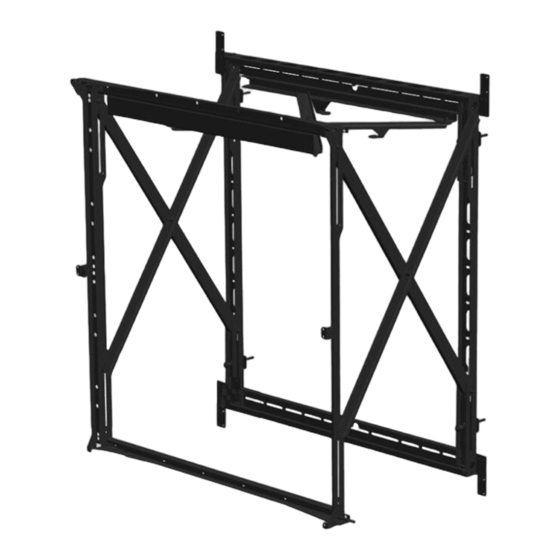

- Page 1 PLW 1001 - 1x2 LED video wall mount Инструкция по сборке и установке CZE Návod k montáži Вказівки по монтажі DE Montageanleitung PT Manual de montagem EL Οδηγίες συναρμογής Návod na montáž BG Инструкции за монтаж 設置の説明書 HU Szerelési előírás Montaj kılavuzu...
- Page 2 5/8”-10 x 2” Bolt 5/16” x 6” Lag Bolt 5/16” Washer 5/16” x 3” Lag with hole Bolt M6 x 20 mm 1/4” x 2 1/2” M5 Allen Key M2 Allen Key Push Pin Socket Cap Wall Plate M5 x 6 mm Flat Head M5 x 10 mm Scre w M4 x 6 mm Set Screw Wall Mount...
- Page 3 1) Extend the mount. 2) Install the 1/4” x 2 1/2” push pin (F) to keep the mount ext ended. Key Slot Place the wall mount over the lag bolt through the key slot hole. Lag Bolt Washer Flush Bolt Install the four (4) 5/8”-10 x 2”...
- Page 4 Before installing the 5/16” x 6” lag bolt and washer make sure the phillips screw is in the center of the slots. This will give 1/2” adjustments either up or down. Wall Plate Washer 5/16” x 6” Lag Bolt 1) Level the wall mount. 2) Place the wall bracket (I) between the wall mount and wall.
- Page 5 1) Use four (4) M6 x 16 mm flat socket head screws (N) on the first LED display to center it in place. 2) Install second LED display using four (4) M6 x 20 mm socket cap screws (E). 3) Optional to change the M6 x 16 mm flat socket head screws (N) to M6 x 20 mm socket cap screws (E).
-
Page 6: Optional Extensions
Install eight (8) M4 x 6 mm set screws (L). You can adjust the panel in & out by using the M2 Allen Key (H). OPTIONAl EXTENSIONS 1350 mm [ 53.15” ] Linear Set Up Page 6... - Page 7 Align the tabs with eachother. Install the spacer brackets (M) to the mount using eight (8) M5 x 6 mm flat head screws (J). Four (4) screws per bracket. Page 7...
- Page 8 Install the mounts together using two (2) M5 x 10 mm screws (K). To collapse the mount and secure, remove the push pin than install two (2) M5 x 10 mm screws (K). One screw per latch. Adjustments (GB) Subject to printing errors and technical amendments. (NL) Drukfouten en technische wijzigingen voorbehouden.
