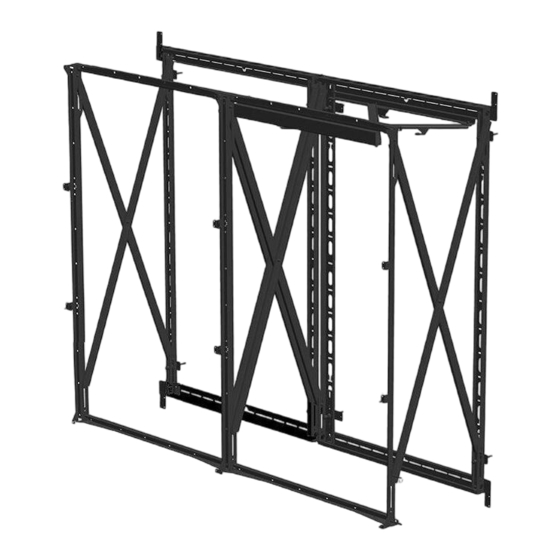

P P LW 1004 - 2x3 LED video wall mount
EN
DE Montageanleitung
FR
NL
ES
IT
PT Manual de montagem
EL Οδηγίες συναρμογής
SV
PL
RU
Инструкция по сборке и установке
CZE Návod k montáži
SK
Návod na montáž
HU Szerelési előírás
TR
Montaj kılavuzu
RO
UK
Вказівки по монтажі
BG Инструкции за монтаж
設置の説明書
JA
ZH
MOUIN_PLW 1004 _V02
Advertisement
Related Manuals for vogel's PLW 1004
Summary of Contents for vogel's PLW 1004

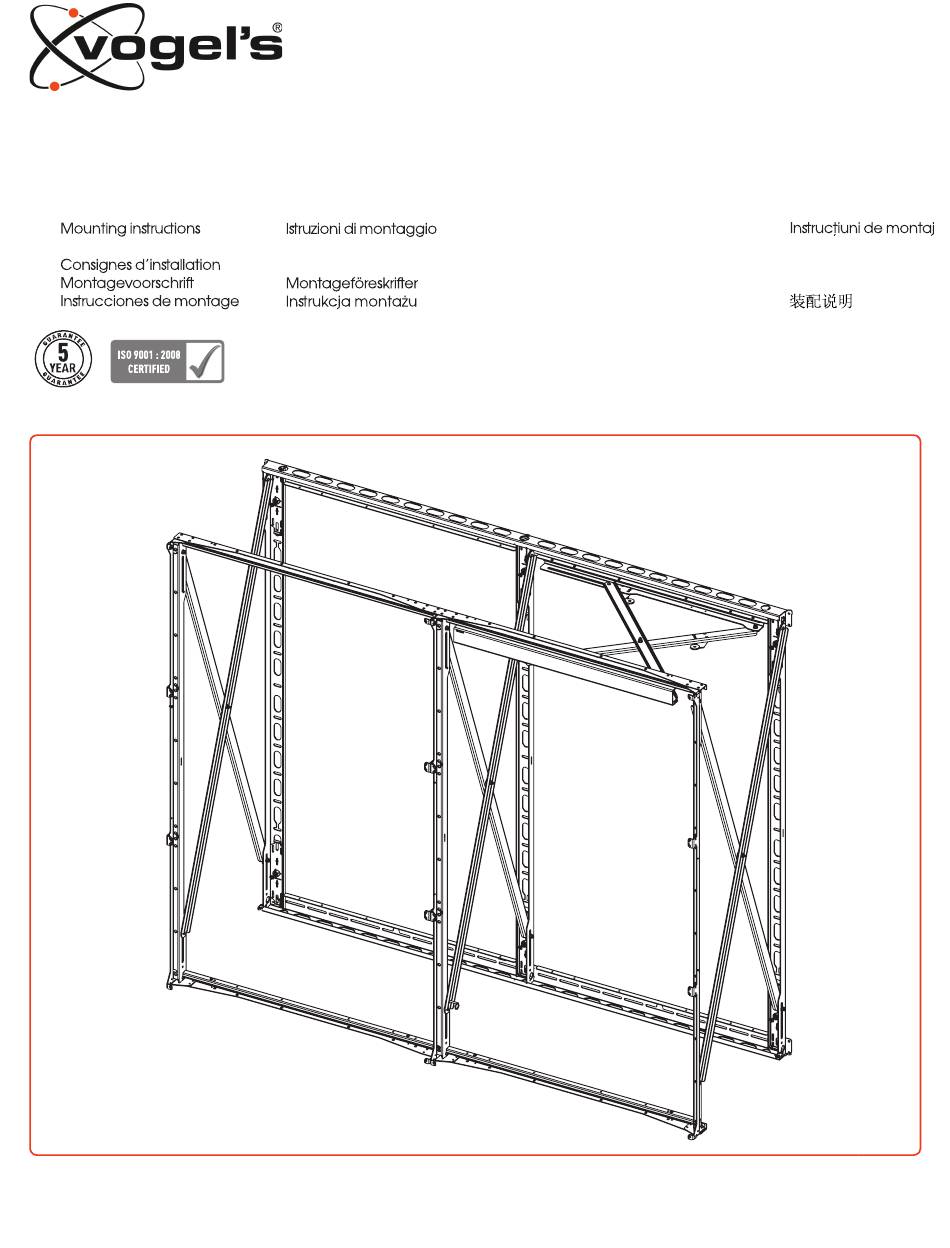

- Page 1 P P LW 1004 - 2x3 LED video wall mount Инструкция по сборке и установке CZE Návod k montáži Вказівки по монтажі DE Montageanleitung PT Manual de montagem EL Οδηγίες συναρμογής Návod na montáž BG Инструкции за монтаж 設置の説明書 HU Szerelési előírás Montaj kılavuzu MOUIN_PLW 1004 _V02...
- Page 2 5/8”-10 x 2” Bolt 5/16” x 6” Lag Bolt 5/16” Washer 5/16” x 3” Lag Bolt with hole M2 Allen Key M5 Allen Key 1/4” x 2 1/2” M6 x 20 mm Push Pin Socket Cap Wall Mount Wall Plate M5 x 6 mm Flat Head M5 x 10 mm Scre w M4 x 6 mm Set Screw...
- Page 3 1) Extend the mount. 2) Install the 1/4”x 2 1/2” Push Pin (E) to keep the mount extended. Key Slot Place the wall mount over the lag bolt (D) through the key slot hole. Lag Bolt Washer Page 3...
- Page 4 Flush Bolt Install the six (6) 5/8”-10 x 2” Bolt (A) with hole into the wall mount. Before installing the 5/16” x 6” lag bolt (B) and washer (C) make sure the phillips screw is in the center of the slots. This will give 1/2”...
- Page 5 In / Out Uneven wall surfaces can be adjust by Adjustments turning the 5/8”-10 x 2 Bolt with hole. Up / Down Page 5...
- Page 6 1) Use four (4) M6 x 16 mm flat socket head screws (N) on the first LED display to center it in place. 2) Install the second and third LED display unsing four (4) M6 x 20 mm socket cap screw in each LED display (F). 3) Optional to change the M6 x 16 mm flat socket head screws (N) to M6 x 20 mm socket cap screws (F).
-
Page 7: Optional Extensions
OPTIONAL EXTENSIONS 1200 mm [47.24”] 2023 mm [79.67”] 1200 mm 1200 mm 1200 mm 1200 mm [47.24”] [47.24”] [47.24”] [47.24”] Linear Set up Align the tabs with eachother. Page 7... - Page 8 Install the spacer brackets (M) to the mount using (8) M5 x 6 mm flat head screws (J). Four (4) screws per bracket. Install the mounts together using two (2) M8 x 70 mm screws (O). Page 8...
- Page 9 Install the mounts together using four (4) M5 x 10 mm screws (K). To collapse the mount and secure, remove the push pin than install two (2) M5 x 10 mm screws (K). One screw per latch. Adjustments (GB) Subject to printing errors and technical amendments. (NL) Drukfouten en technische wijzigingen voorbehouden.
