Installation Guidelines - Honeywell Electromechanical Blocking Element 3 Mounting And Connection Instructions

Advertisement

Table of Contents
Mounting and Connection Instructions Blocking Element 3
3.2

Installation guidelines

The blocking element is mounted in the door frame, the threaded sleeve and the
magnet in the door leaf.
ATTENTION:
In order to be able to remove the locking element at a later date, ensure
that the cable is long enough. Lay the cable to the next distributor in an
empty pipe.
Do not subject the black plastic plate on the back to mechanical stress or
pressure!

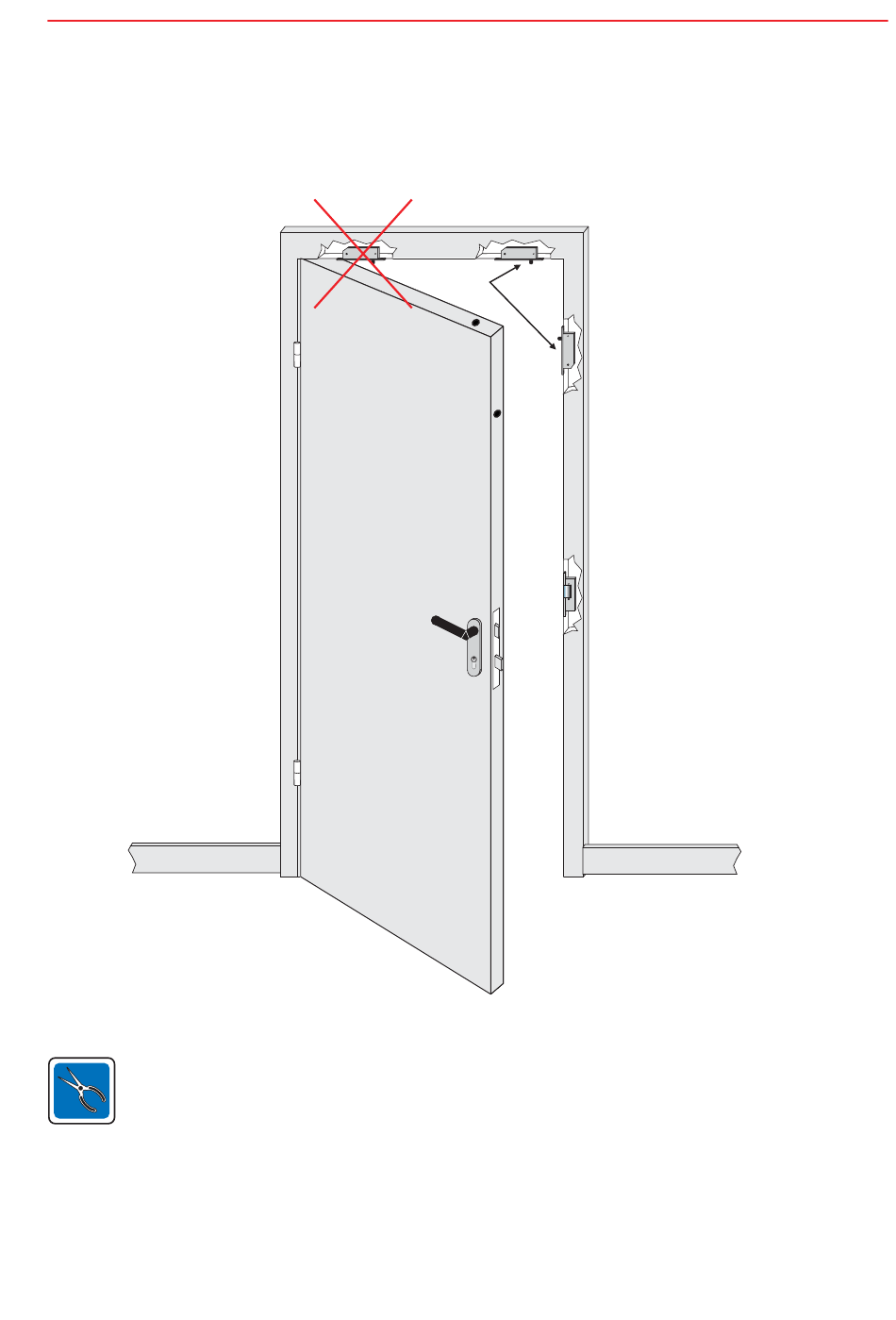

Incorrect!
Correct
Do not plaste over it.
Sperrelement
