16
3.

Mounting instructions

3.1

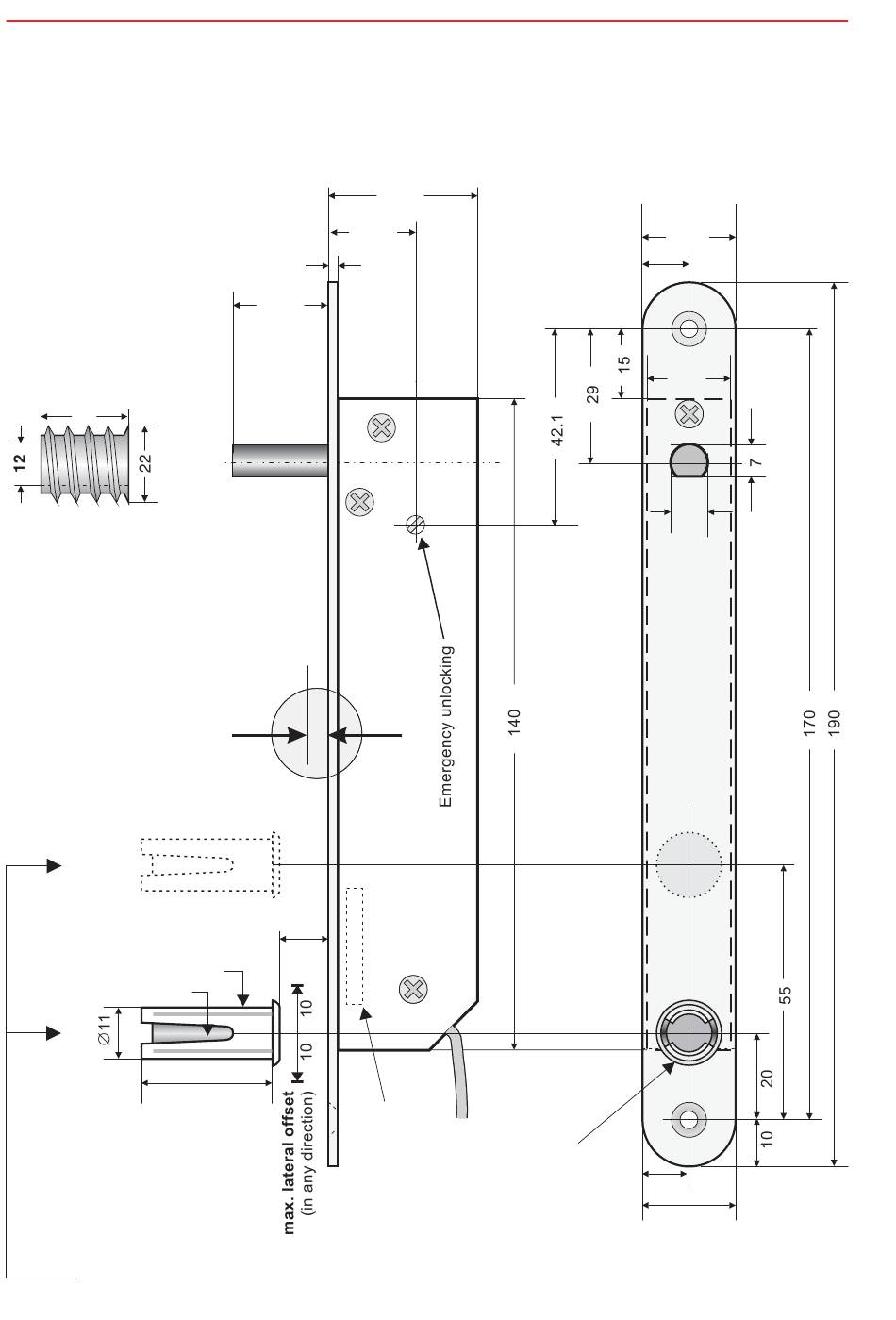

Dimensioned drawing

All dimensions in mm
End position of bolt
25
Threaded sleeve with hexagon socket
for mounting in wooden doors
(Item no. 019020)
distance between face plate
and door max. 4 mm
B)
Fixture for magnet
Magnet
A)
Install the magnet in one of the two possible positions (A or B).
Mounting and Connection Instructions Blocking Element 3
18,7
2
20
±1.0
10 max.
28
Magnetic
contacts
32
Connection
cable
(12-wire)
Fixture and
magnet
20
10
18
8
10
20
