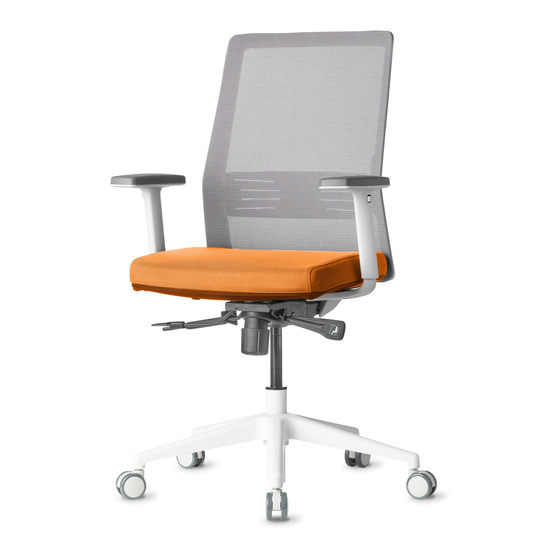

- Page 1 BODI installation guide...
- Page 2 COMPONENTS Backrest Seat Seat Cover Base Gas Spindle/ Mechanism Cover Armrest Mechanism Castor Mechanism Bar M8X35 M6X42 M6X37 M6X32 275 lbs Bolt Kit amqsolutions.com BODI INSTALLATION GUIDE | 2...
-
Page 3: Installation
Attach mechanism to seat shell using two Attach backrest to seat shell using three M6X42 bolts and two M6X32 bolts with the M8X35 bolts and tighten the bolts. mechanism bar as indicated below. Tighten the bolts. M6X42 M6X32 amqsolutions.com BODI INSTALLATION GUIDE | 3... - Page 4 Step 8 Insert the castors onto leg Combine chair body with gas Your Bodi chair is base, then insert gas lifter lifter via hole in mechanism. now ready to use. onto top of leg base. amqsolutions.com BODI INSTALLATION GUIDE | 4...
- Page 5 Pull the seat forward while pushing the lever under the seat. Step 2 Unzip the zipper on the back side and remove seat cover from the seat shell. Install new seat cover and zip to close. amqsolutions.com BODI INSTALLATION GUIDE | 5...
