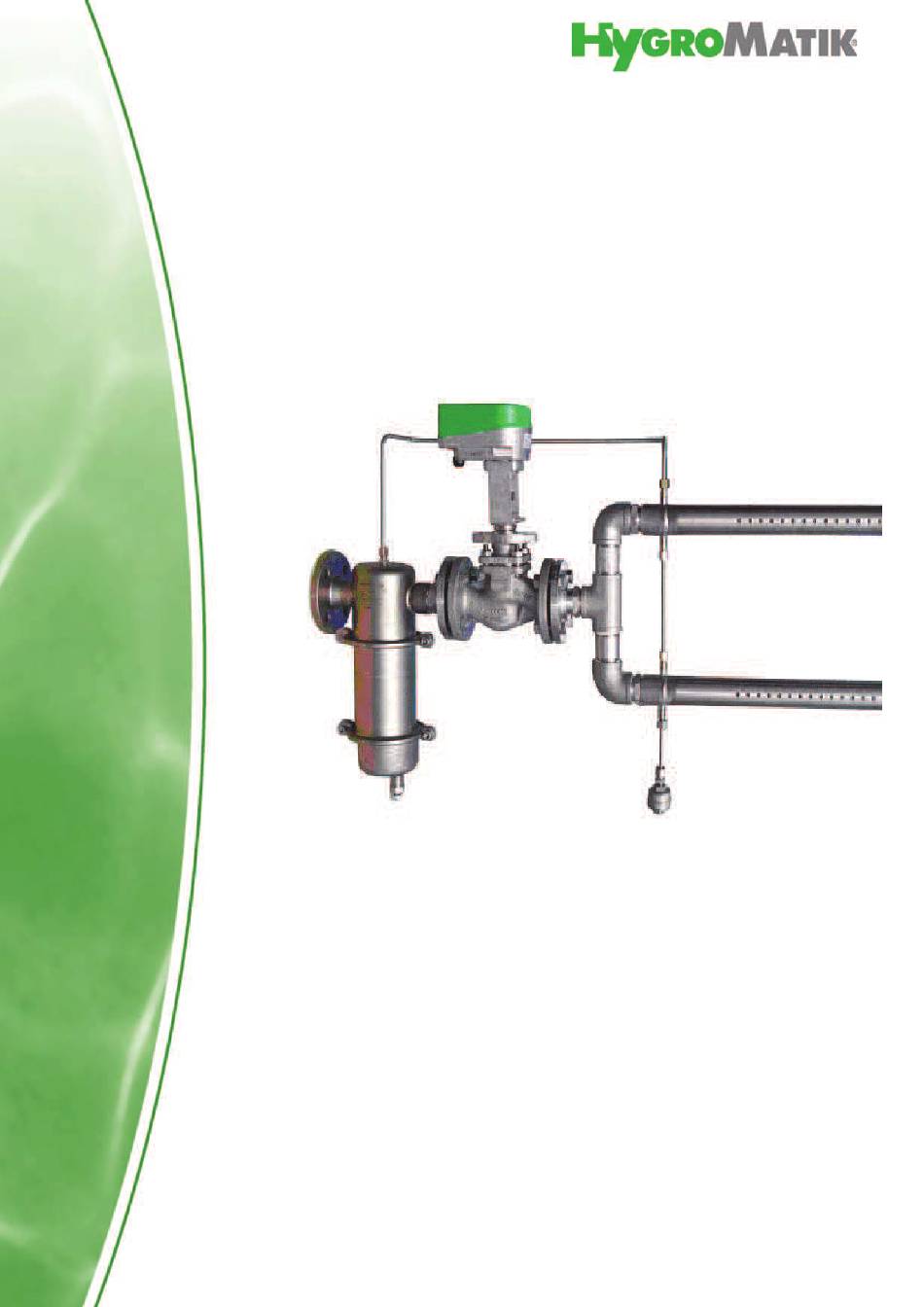

  • Page 1 Manual Steam Injection Humidifiers DDS for existing steam nets...
  • Page 2 © Copyright HygroMatik GmbH DDS January 2011 Information in this manual is subject to change or alterate without prior notice. Warning, Hazardous Voltage: All work to be performed by trained personnel only. All electrical installation and servicing of the electrical components of this unit to be performed by qualified electricians only.

  • Page 3: Table Of Contents

    11. Ball Float Steam Trap ..................... 19 11.1 Function ........................... 19 11.2 Technical Data ........................ 20 11.2.1 KS-Condensate Drain for DDS Type A ............... 20 11.2.2 KS-Condensate Drain for DDS Type C ................ 20 12. Thermostatic Capsule Steam Trap ................21 12.1 Function ...........................
  • Page 4 15. Installation ........................30 15.1 Attaching steam pipes ..................... 31 15.2 Electrical Installation ......................32 15.3 Separators ........................33 15.4 Control Valve and Actuator ..................... 34 15.5 Pneumatic Start-up safety feature ................... 35 15.6 Steam Lances ......................... 36 15.7 Installation Examples ...................... 39 15.8 Steam Lance Heating System ..................

  • Page 5: Introduction

    It is extremely economical, safe in operation and easy to use. In order to operate the HygroMatik steam injection humidifier in a safe, orderly and economical fashion please take the time to read this operating manual.

  • Page 6: Safety Instructions

    2. Safety Instructions Overview Adherence to these safety instructions are required by law. They are there for your safety and for the prevention of industrial acci- dents . Warnings and Safety symbols The following safety symbols indicate texts that contain warnings concerning possible hazards.

  • Page 7: Disposal After De-Installation

    Installation, de-installation, servicing and repair Steam injection humidifier parts on which maintenance or repair work is to be done must be disconnected from voltage and the steam supply shut off. Installation of any additional parts is allowed only after written permission from the manufacturer. Electrical Only qualified electricians may carry out electrical work on the unit.

  • Page 8: Transport

    3. Transport Overview Note: If there is any transport damage and/or missing items please get in touch with the transport company or supplier immediately. 3.1 Packing Note: Please observe the pictures on the packing. The kind of packing used is dependent upon the type of unit sup- plied.

  • Page 9: Function And Assembly

    4. Function and Assembly The HygroMatik Steam Injection Humidifier comprises 4 basic elements: • Separator • Control valve with or without control operation • Steam Lances • Additional materials There is a stainless steel version Type A and a mixed material version Type C 4.1 Function...

  • Page 10: Strainer

    5. Strainer There should be a strainer installed in the steam supply line directly in front of every separator. Only if this is done can it be guaranteed that there are no foreign particles in the humidifier unit. Valve cone and valve face in both the control valve and steam trap are sensitive to fouling.

  • Page 11: Separator

    6. Separator The stainless steel separator is the essential component for moisture separation. The separator is available in versions 20 and 40. The separator size is dependent upon the desired steam output and available steam pressure. 6.1 Function Steam flows through the pipe union (1) into the separator. Steam and condensate are separated by the joint action of the inlet pipe (2) and the spiral-shaped flow system.

  • Page 12: Control Valve And Actuator

    As a general rule the customer is free to use any typical control valve which is approved for steam control. Standard are the Spirax-Sarco Valves from HygroMatik. Alterna- tive suppliers can be listed on application. Spirax-Sarco control valves Type LE33; KE63 Flanged Kvs-value [m³/h]...

  • Page 13: Actuator

    In order to comply with DIN 32 730* an electrical actuator must have a fail-safe function so that in the case of a power failure the Type Hygromatik B-4115001 control valve is reset into a safe position (fully closed). Pneumatic Actuator Pneumatic Actuators are controlled using compressed air (e.g.

  • Page 14: Start-Up Safety Switch

    8. Start-up safety switch The start-up safety switch ensures that no condensate from the steam network has entered the air conditioning duct over the steaml lances. Electrical Start-up safety switch With an electrical actuator the supply voltage is looped through the start-up safety switch.

  • Page 15: Steam Lances

    9. Steam Lances In the steam lances (1) dry steam is blown out of specially formed nozzles (2). They are designed for low noise steam emission. The nozzles take steam from the driest area in the steam lance centre. In order to prevent accumulated condensate or aerosol droplets from being transported with the steam, the steam lances are provided with a steam lance heating system (3).

  • Page 16: Technical Data

    Technical Data Type 20 Type 40 Lance- Weight Weight code [mm] [mm] [kg] [mm] [mm] [kg] 0,88 1,54 1,14 1,97 1,40 2,39 1,80 3,03 1148 1268 2,26 1148 1275 3,78 1408 1528 2,65 1408 1535 4,40 1718 1838 3,11 1718 1845 5,15 2018...
  • Page 17 Steam lance piping for multiple steam lances . HygroMatik standard supply is for lengths of 300 mm und 450 mm. Distances are approximate and can vary from installa- tion to installation. Piping should be installed for even lance distribution along the duct height.

  • Page 18: Pressure Gauge Station

    Installation of a pressure gauge on the steam injection unit ensures immediate detection of pressure drops or fluctuations. The HygroMatik Pressure gauge station consists of an up to 200°C temperature-tested, tubular spring pressure gauge (0- 6bar), a T-junction and a dual nipple.

  • Page 19: Ball Float Steam Trap

    11. Ball Float Steam Trap After separation from the steam inside the separator condensate is drained out through a ball float steam trap. 11.1 Function The discharge valve is controlled by the ball float dependent upon the density of the incoming medium. Starting Position / Air When the unit starts, air present in the system is discharged through the thermostatic air extractor fan.

  • Page 20: Technical Data

    11.2 Technical Data 11.2.1 KS-Condensate Drain for DDS Type A Screwfitting : 1/2“ external thread Materials: Clip Stainless steel 1.4404 Float Stainless Steel 1.4404 Flange seal Soft seal Adjust. screw Stainless Steel 1.4404 Housing Stainless Steel 1.4404 The KS-Condensate Drain for Type A is integrated into the sepa- rator.

  • Page 21: Thermostatic Capsule Steam Trap

    12. Thermostatic Capsule Steam Trap Condensate that has collected in the steam lance heating sys- tem is discharged through a thermostatic capsule steam trap. 12.1 Function The discharge valve is controlled dependent upon the capsule volume and the temperature and pressure of the incoming medium.

  • Page 22: Technical Data

    12.2 Technical Data Type Spirax Sarco MST 21 max. operating pressure 18 bar max. operating temperature 210°C Dimensions: 50 mm 45 mm Materials: Housing Stainless Steel 1.4305 Cover Stainless Steel1.4057 Capsule Stainless Steel 1.4541 Spring Stainless Steel 1.4300 Spacer Stainless Steel 1.4301 Strainer Stainless Steel 1.4301 Fill element...

  • Page 23: Humidification Output

    13. Humidification Output The maximum humidification output [kg/h] of one steam injection unit depends upon the available steam pressure in bar. Maximum humidification output can be over 700 kg/h and oper- ating pressure of pmax = 4 bar. 13.1 Output Graphs The following graphs serve as an aid to determining the neces- sary Kvs-Values for the control valve, a given steam pressure and a desired humidification output.
  • Page 24 Example: Desired humidification output: 110 kg/h Operating pressure, p = 2 bar The length and number of steam lances is determined by the duct dimensions. See Section 9 "Steam Lances". Result: Follow the operating pressure line until the desired humidifica- tion output in kg/h is reached.

  • Page 25: Separator Type 20 With One Steam Lance

    13.3 Separator Type 20 with one steam lance KVS-Value [m³/h] Pressure [bar] Page 25...

  • Page 26: Separator Type 20 With Multiple Steam Lances

    13.4 Separator Type 20 with multiple steam lances KVS-Value [m³/h] Pressure [bar] Page 26...

  • Page 27: Separator Type 40 With One Steam Lance

    13.5 Separator Type 40 with one steam lance KVS-Value[m³/h] Pressure [bar] Page 27...

  • Page 28: Separator Type 40 With Multiple Steam Lances

    13.6 Separator Type 40 with multiple steam lances KVS-Value [m³/h] Pressure [bar] Page 28...

  • Page 30: Installation

    Matik steam injection humidifier in a safe and proper manner. Warning: this steam injection humidifier may only be installed by qualified personnel. HygroMatik can accept no responsibility for any damage caused by incorrect installation. Please observe all safety and hazard instructions supplied with the steam injection humidifier.

  • Page 31: Attaching Steam Pipes

    Dimension the on-site steam connections (insulated) so that a steam velocity of 25 m/s is not exceeded. HygroMatik recommends the installation of a shut-off valve in front of the steam injection system in order to facilitate any necessary maintenance work.

  • Page 32: Electrical Installation

    2 - 3 m behind the humidifier in the ducting. Install a pressure sensor in the ducting and integrate this into the safety chain. The pressure sensor prevents an over-humidifica- tion of the ducting in the case of a malfunctioning fan. HygroMatik Actuator wiring diagram Actuator B-4115001 Electrical Start-up...

  • Page 33: Separators

    15.3 Separators Warning: Before installation, check out the steam supply piping. It must be established that the steam humidifier is supplied with as dry a steam as possible (steam with as little condensate as possible). Steam pressure at the separator entry point must not exceed 4 bar.

  • Page 34: Control Valve And Actuator

    15.4 Control Valve and Actuator If the valve is on site then the necessary connections between valve and separator are fitted. All other parts are delivered sep- arately (e.g. connection bolts and flange seals). Only actuators which are suitable and certified for steam regula- tion may be used.

  • Page 35: Pneumatic Start-Up Safety Feature

    15.5 Pneumatic Start-up safety feature Note: Pneumatic start-up safety is set at 96°C. This value can be altered only by the manufacturer. First install a T-piece with a 1/2" exit in the condensate piping in front of the condensate drain. A T-piece with a 1/8"...

  • Page 36: Steam Lances

    Angle pieces for installation of humidifier/valve unit parallel to ducting walls are available from HygroMatik. In order to reduce the absorbtion distance the steam from the lance should be directed opposed to the air direction in the duct- ing.
  • Page 37 In order to prevent steam condensing on the duct inner walls the lances should be installed according to the following dimen- sions: Dimension [mm] Type DDS 20 20-80 Type DDS 40 20-80 *„k“ is the necessary drill diameter in the duct wall A duct wall thickness of 30mm is assumed.
  • Page 38 Number Description Duct wall Screw M6x35 Nut M10 Steam Lance Threaded bar M10 & M8 x 250 Angle anti-vibration collar * In installation set B-4600100. Lance guide is installed in the following manner: - feed bar through hole in angle . - Screw M10 bar end in the steam lance.

  • Page 39: Installation Examples

    15.7 Installation Examples Note: If lances are positioned vertically then the steam supply piping should have an additional float controlled condensate drain. Page 39...
  • Page 40 Position lances in the duct centre if possible. If the humidifier blows into a compact multi-zone unit then it should be installed directly in the air flow and as close as possi- ble to the fan. The bifurcated pipe should never be installed less than one meter in front of the fan suction side.

  • Page 41: Steam Lance Heating System

    15.8 Steam Lance Heating System Warning: the line to the heating system must be able to tolerate pressures of up to maximum 8 bar. Note: the pipe is easy to bend with a suitable tool. The customer must adjust the pipe in accordance the conditions on site. Take care not to kink the pipe when bending.

  • Page 42: Check List

    15.9 Check List Warning: The steam injection humidifier may only be operated by qualified and authorised personnel. Before switching on the steam injection humidifier please check for correct installation by going through the following check list: - Have the steam supply lines been flushed out? - Are the steam supply and condensate lines properly connected and secure? - Has the entire steam supply line up to the control valve been...

  • Page 43: Initial Operation

    16. Initial Operation Warning: the steam injection humidifier may only be operated by qualified personnel. Warning: for actuator initial operation please refer to the instruc- tions of the regulator and/or installations company. Initial opera- tion should only be done by a trained expert or service technician.
  • Page 44 Set the Max. Hygrostat to the desired value. Set the humidity sensor to the desired value and activate the actuator. Note: Periodic filter cleaning is recommended in order to pre- vent the control valve from excessive wear. Before cleaning the filter always shut off the steam supply and allow the system to cool down.

  • Page 45: Maintenance

    17. Maintenance The HygroMatik steam injection humidifier is easy to maintain. However, inadequate or improper maintenance can lead to oper- ational malfunctions. Regular maintenance is essential so that your steam injection humidifier achieves a long, trouble free life span. Warning: when performing maintenance work please note: •...

  • Page 46: Ball Float Condensate Drain

    » Check for leakages by re-start. Use only original HygroMatik parts. Maintenance set for DDS 20 Type A: B-4111917 Maintenance set for DDS 40 Type A: B-4111919 The maintenance sets include 1x sieve filter, flange seal, steam supply entry seal, and seals for the ball float and drain.

  • Page 47: Thermostatic Capsule Steam Trap Type Mst21

    » Screw down new complete float unit (E-C) with valve screws (D) . » Screw down cover with new seal (T). Use HygroMatik spare parts number E-4111834 Exchanging air vent » Loosen C spring clamp (L). » Remove capsule element (H) and spacer (M).

  • Page 48: Malfunctions

    18. Malfunctions Problem Possible Cause to do No steam is coming • Defective Hygrostat or humidity • Check Hygrostaten and/or sensor humitiy sensor and repair out of steam lance or replace as necessary. • Defective Control Valve • Check valve and clean it or replace as necessary.
  • Page 49 Possible Cause to do Problem Condensate is co- • Steam trap drain is considerably • Install condensate drain higher that the DDSystem. beneath the humidifier ming out of steam level and pump out the lance. resultant condensate to a suitable place. •...

  • Page 50: Dismantling

    19. Dismantling After the steam injection humidifier is no longer in use it must be dismantled (scrapped and disposed of) following the installation procedures in reverse order. Warning: Dismantling the unit may only be done by trained and qualified personnel, the electrical dismantling by trained electro- personnel.

  • Page 51: Steam Injection System Dimensions And Installation Schematic

    20. Steam Injection System dimensions and Installation Schematic. * Steam injection system Type A (stainless steel) *Steam Injection system Type C (Mixed materials) Standard dimensions 300 and 500; other graduations possible on request *all dimensions in mm! Page 51...

  • Page 52: Spare Parts

    21. Spare Parts Version A Version C type type Article Number Description Separators E-4111090 Separator, without additions E-4111092 Separator, without additions B-4500001 Separator DDS20 incl. ball float steam trap and dirt trap B-4500003 Separator DDS40 incl. ball float steam trap and dirt trap B-4111917 maintenance set DDS20 Version A (encloses: s eals, dirt trap) B-4111919...
  • Page 53 Version A Version C type type Article Number Description Steam lance E-4111000 steam lance 20, Code 1, 218 mm fitting lenght E4111002 steam lance 20, Code 1.5, 393 mm fitting lenght E-4111004 steam lance 20, Code 2, 568 mm fitting lenght E-4111006 steam lance 20, Code 3, 838 mm fitting lenght E-4111008...

  • Page 54: Fax Form - Order For Spare Parts

    22. Fax Form - Order for spare parts Fax Form Please copy, fill out and fax to: Lise-Meitner-Str. 3 04193/895-33 Fax.Nr. 24558 Henstedt-Ulzburg Tel. 04193/895-0 Spare Parts Fax Order Form for Unit -Type *______________ Serial Nr.* ___________________ From Department: ______________ Order Number: __________________ Number of pieces Article Description Article Number...
  • Page 56 Lise-Meitner-Str.3 • D-24558 Henstedt-Ulzburg Phone +49(0)4193/ 895-0 • Fax -33 eMail hy@hygromatik.de • www.hygromatik.com 12/2004 A member of the Group...
