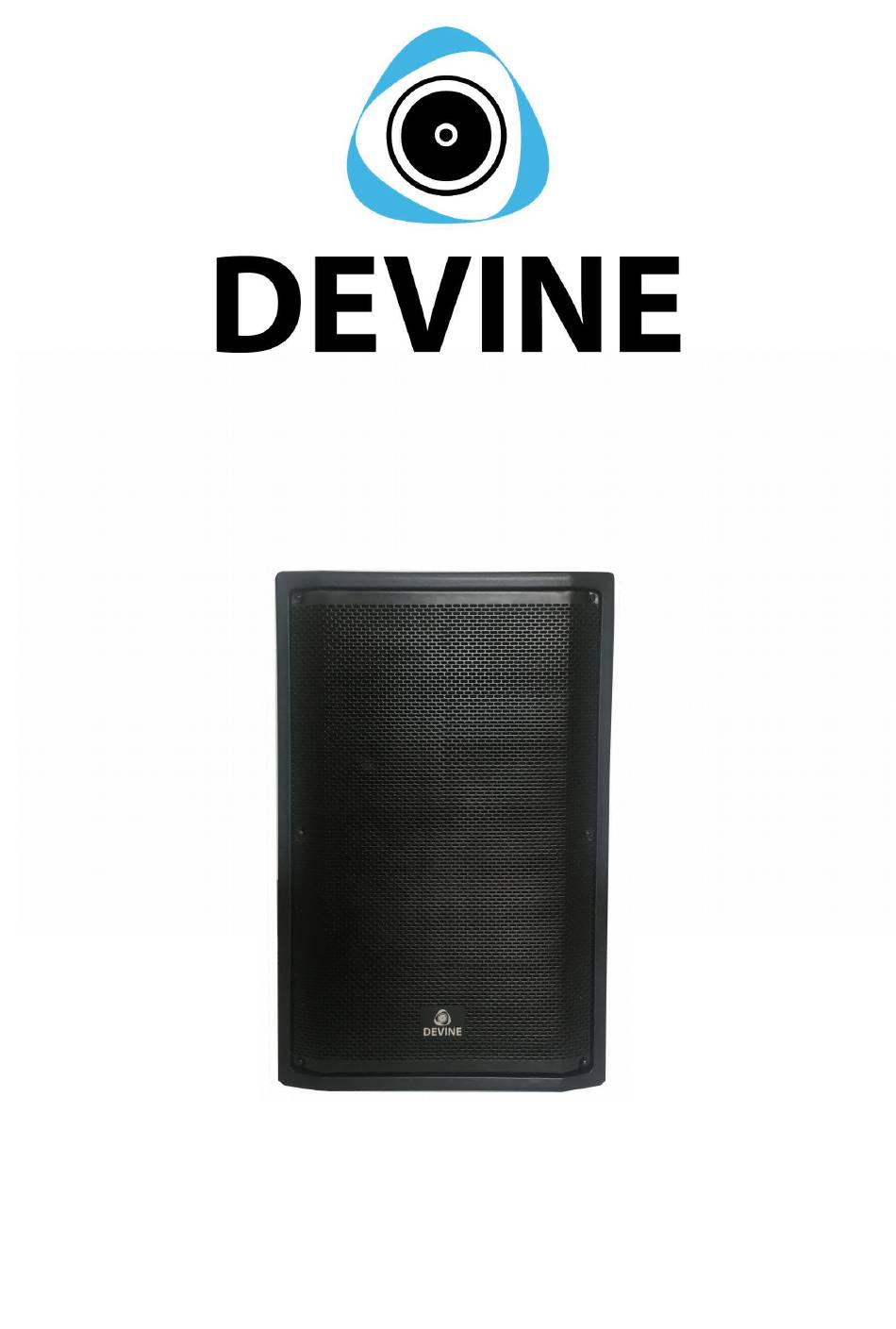

- Page 1 Artis MKII series Active Speaker User Manual The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials:10-11-2018 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing this Devine Artis MKII Active Speaker. We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that this product has to offer.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Warning! Do not ingest the battery. Risk of injury due to chemical burns. The included remote control comes with a button-cell battery. If a button-cell battery is ingested, this can cause life-threatening internal burns within just 2 hours and possibly lead to death. Keep new and used batteries away from children.
- Page 6 Guidelines and operation of this device Please note, the images may vary from the actual model. The images below show the silkscreen for the 12A and the 15A MKII. 1. MP3 player with Bluetooth, USB and SD functionality (remote control included) 2.
- Page 7 The construction of the rear panel on the 8A is slightly different than the 10A. 1. MP3 player with Bluetooth, USB and SD functionality (remote control included) 2. Microphone input via TRS jack plug 3. Line input via stereo RCA or mono balanced 3-pin XLR 4.
- Page 8 MP3 player basic functionality: - The MP3 player supports both SD cards and USB sticks of up to 32 GB (memory storage unit with higher capacity may also be supported but this is not guaranteed). WAV and MP3 files are supported. Other file types may be supported, but this is not guaranteed.
- Page 9 Remote control The included infrared remote control is direction sensitive, which means it must always be pointed at the front of the speaker for optimal coverage. Bear in mind that objects located between the transmitter and the receiver can be negatively affected. The speaker's infrared receiver is hidden behind the grille on the front of the speaker.
-
Page 10: Operating The Device
Use these units with care and keep the volume at a reasonable level when possible. The volume should ideally be set to a comfortable level when listening to music. Devine cannot be held liable for any injuries or damage resulting from the use of this product. General use Housing The Artis MKII speaker has a robust housing made of moulded plastic. -
Page 11: Audio Technology
The 35 mm stand flange can also be used to mount the speaker on a suitable wall bracket. Consult the manual or instructions that come with your wall bracket to ensure proper installation before mounting the speaker. Audio technology The Artis MKII speaker series features the very latest in audio technology. By adhering to the following tips and instructions, you can make the most of everything this speaker has to offer for the very best audio and performance quality possible. - Page 12 Bear in mind that the sound can distort or clip if you turn one or both controls too far to the left or right. It is therefore recommended to only use these controls for subtle sound corrections and never turn them completely to the left or right.
- Page 13 When using as a monitor The Artis MKII series speakers are suitable for use as (floor) monitors and can be placed at an angle so that the sound is directed towards artists, performers or presenters. No extra adapters or supports are required.
- Page 14 produce high tones). These tones are already amplified and converted to warmth by the Artis. A small portion of the low tones remain intact as a result. The information in this user manual is subject to change at any time without notice. Version: Date of creation and author's initials:10-11-2018 RV Revision date and author's initials: -...
- Page 15 Speaker Troubleshooting Guide If you have a problem with your speaker, please consult this troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common speaker problems, but it does not and cannot cover every eventuality.
- Page 16 Distorted, clipping, crackling sound Source device is transferring a Check if any of the connected distorted signal source devices is transferring a distorted signal and turn down the volume on the device if necessary. Volume control is too loud Turn the volume down The tone controls for treble and/or Turn the tone control back to 12 bass are too high or too low.
-
Page 17: Specifications
Specifications General specifications for all models: – lightweight speaker cabinet with plastic housing – 8, 12 or 15-inch active speaker with woofer and compression driver + horn – metal grille – practical handles – acoustic foam behind grille to prevent any unwanted matter from getting inside the speaker –...
