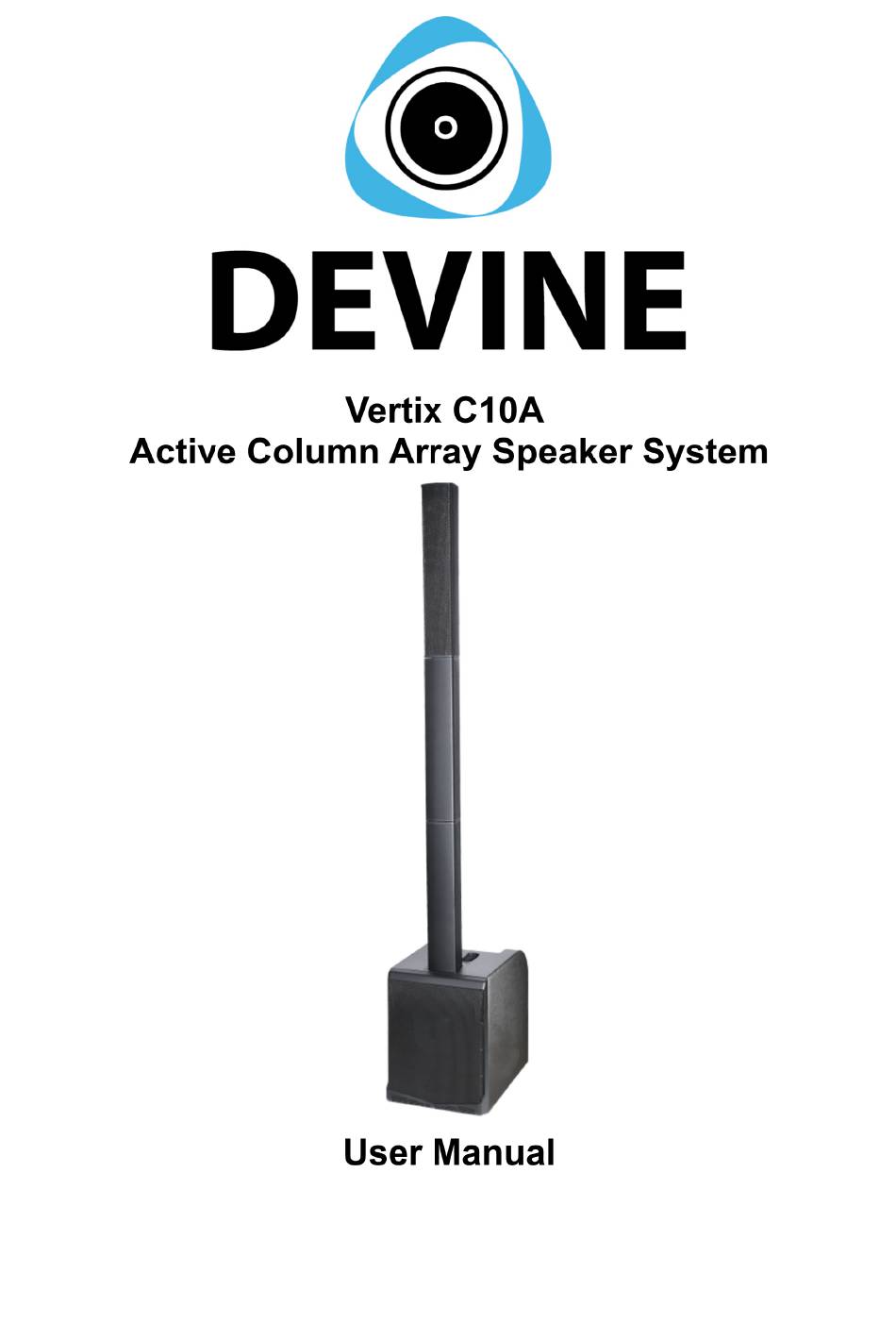

- Page 1 The information included in this user manual is subject to change at any time and without notification: Version: 1.0 Date & Author Initials: 16-02-2023 RV Revision date & author initials: -...
- Page 2 Introduction Thanks for your purchase of the Devine Vertix C10A active column speaker system. Before unpacking the included components, we recommend reading this user manual thoroughly to ensure that you are familiar with all of the features and functions the system has to offer. When unpacking the box, please make sure that all of the components and accessories listed below have been included.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to prevent any danger of electric shocks! Every person involved with the installation, operation and maintenance of this device must: - Be qualified. - Be skilled. - Have read the instructions included in this user manual. - Be sure that neither the device nor the included accessories are damaged. - Page 4 - If the device is not operated in the manner described in this user manual, this may lead to damage or even injury. Devine will not be held responsible for any damage or injury that occurs as a result of improper use of this product.
- Page 5 The Bluetooth® image, brand and logo are all registered trademarks and the property of Bluetooth SIG Inc. Any use of such images, brands and logos by DEVINE is under licence. Other trademarks and trade names are the property of their respective owners.
- Page 6 This section includes a list and quick overview of the layout and basic functions of the subwoofer module. Please read it along with the following more detailed section to ensure optimum performance when using the Vertix C10A. and laptops. The stereo RCA input is often used to connect equipment like DJ controllers. The TRS jack input can be used to connect equipment like a professional mixing console, a DJ mixer or instruments like keyboards or digital pianos.
- Page 7 TWS can only be used when two systems of the same make and model are paired. This means it cannot be used to pair the Vertix C10A to systems of a different make and/or model to form a complete stereo system.
- Page 8 4. Master Controls The Master controls can be used to set the total output volume of the Vertix C10A. This section includes both a Master volume control knob and a Subwoofer volume control knob. When the system is only set up to amplify speech, the lower frequencies produced by the subwoofer are less necessary, so it is advised to lower the Subwoofer volume to ensure clarity.
- Page 9 9. Power Input via IEC C13 with Integrated Fuse Compartment Via the power input, the Vertix C10A system receives power so that it is able to operate. This power input features an integrated fuse compartment. Never try to open the fuse compartment when the system is in use, even if the fuse needs replacing.
- Page 10 A set of compatible bags is available (not included) for protecting both the column modules and subwoofer module from superficial damage when in storage or transit. Grille The subwoofer module and top module of the Vertix C10A both come fitted with a protective grille. This grille should never be removed by the user. Subwoofer Module Handle The top of the subwoofer module is fitted with a handle, which has been positioned next to the coupler for the column modules, making it easier to move and position the module.
- Page 11 Prolonged clipping can cause permanent damage. The Vertix C10A system features built-in DSP presets designed to calibrate the quality of sound to match the audio source being amplified. By selecting the correct preset, small tone corrections are applied automatically.
- Page 12 Dealing with Maximum Capacity It is important to be aware when the Devine Vertix C10A system has reached its maximum capacity. This can be indicated by the built-in amplifier module that drives the speakers as well as the mechanical capacity of the speaker components.
-
Page 13: Problem Shooting
Problem Shooting If you happen to encounter any problems while using your speaker system, we recommend checking this troubleshooting section to see if a solution can be found. If none of the suggested solutions included below solve your particular problem, please contact your local retailer for further advice. This troubleshooting section includes all of the most common possible issues and is not a complete list of every possible fault, defect, and their subsequent solution. - Page 14 Problem Possible Cause Solution The Treble and Bass controls are Set the tone control to the 12 set too high or too low o’clock position and check if the sound is still distorting. Woofer or tweeter is defective If the speaker is exposed to a distorted or too powerful signal for a long period of time, this can cause permanent damage.
-
Page 15: Specifications
Specifications Product Specifications: - Active column speaker system - x1 active subwoofer module with a mixer section, x2 column modules and x1 array speaker module - Versatile speaker system for a range of applications - Easily assembled and transported - Powerful and balanced audio reproduction - 3-channel mixer with two mono channels, a stereo channel and Bluetooth function - Bluetooth audio streaming and TWS function (True Wireless Stereo) - Built-in DSP sound presets... - Page 16 EU Declaration of Conformity Devine pro audio and studio products Verrijn Stuartweg 18 4462 GE Goes The Netherlands This declaration of conformity is issued under the full responsibility of the manufacturer. Product code: Product name: Devine Vertix C10A Active Column Array Speaker System with Bluetooth wireless technology (2.4 GHz)
- Page 17 UK Declaration of Conformity Devine pro audio and studio products Verrijn Stuartweg 18 4462 GE Goes The Netherlands This declaration of conformity is issued under the full responsibility of the manufacturer. Product code: Product name: Devine Vertix C10A Active Column Array Speaker System with Bluetooth wireless technology (2,4 GHz) The object of the declaration described above is in conformity with the relevant statutory requirements of the United Kingdom: Radio Equipment Regulations 2017.
