Summary of Contents for Devine Onyx Passive 6

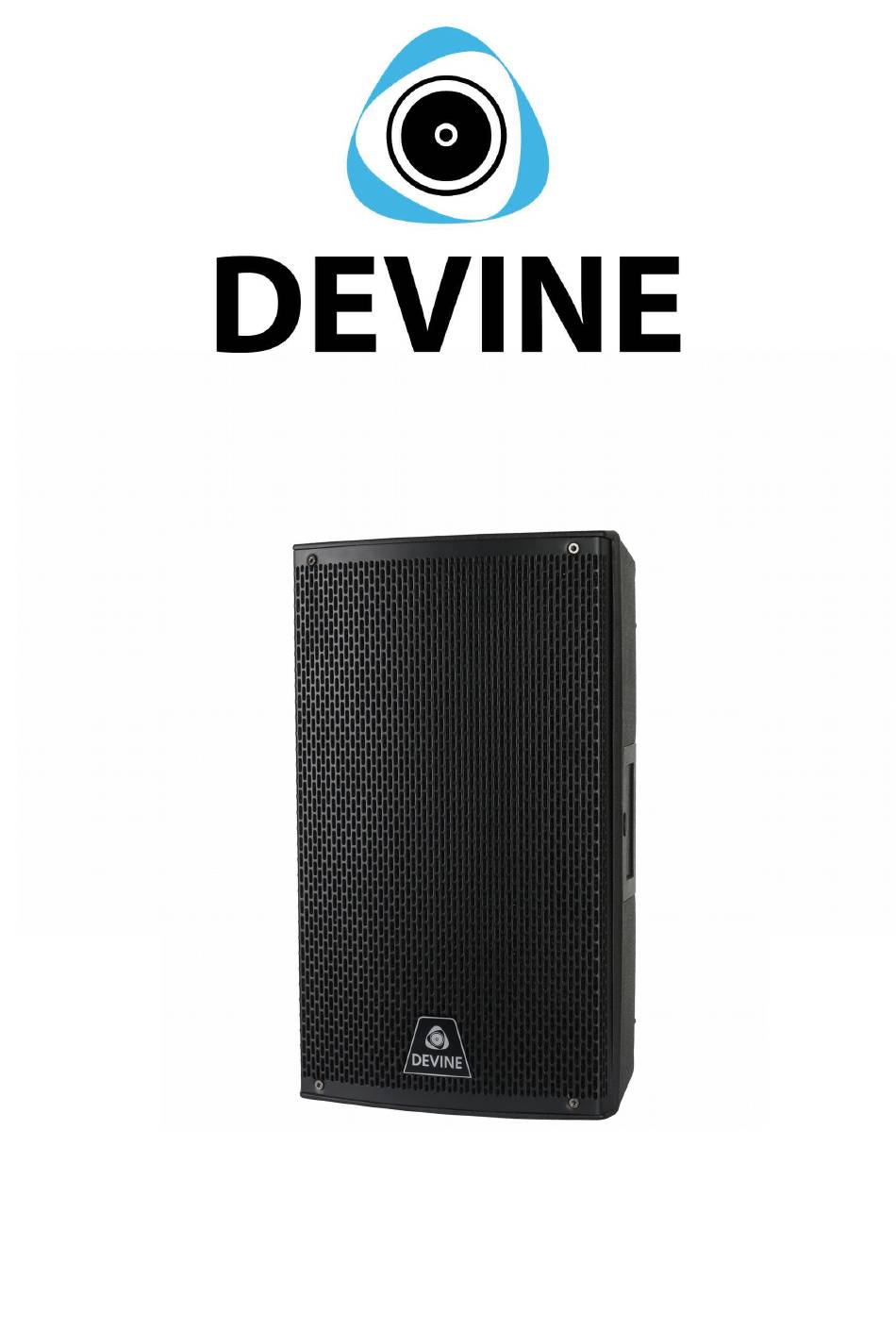

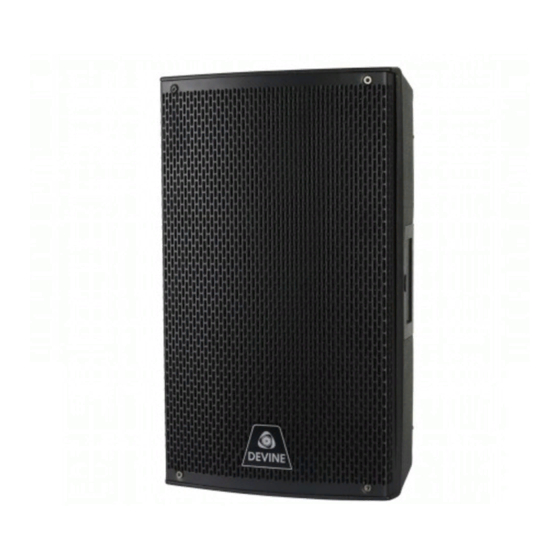

- Page 1 Onyx Passive 6 / 8 / 10 / 12 / 15 Passive speaker User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing this Devine Onyx passive speaker. We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that this product has to offer.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Guidelines and operation of this device 1. speaker input via 4-pin lockable speaker connector 2. speaker parallel output via 4-pin lockable speaker connector 3. handle (varies per model) 4. high tone speaker (compression driver) with horn 5. bass reflex ports 6.
-
Page 6: Operating The Device
Use these units with care and keep the volume at a reasonable level when possible. The volume should ideally be set to a comfortable level when listening to music. Devine cannot be held liable for any injuries or damage resulting from the use of this product. General use Housing The Onyx speaker has a robust housing made of moulded plastic. -
Page 7: Audio Technology
Using together with a subwoofer If you want to use the Devine Onyx speakers with a subwoofer, then the corresponding Onyx passive subwoofer series is a good option. For optimal results, choose a subwoofer that is one size larger than the Onyx speaker you are currently using. - Page 8 Speaker troubleshooting guide If you have a problem with your speaker, please consult this troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common speaker problems, but it does not and cannot cover every eventuality.
-
Page 9: Specifications
Specifications General specifications for all models: – lightweight speaker cabinet with plastic housing – 6, 8, 10, 12 or 15-inch speaker with woofer and compression driver + horn – metal grille – acoustic foam behind grille to prevent any unwanted matter from getting inside the speaker –...
