Summary of Contents for Devine Onyx Active 10A

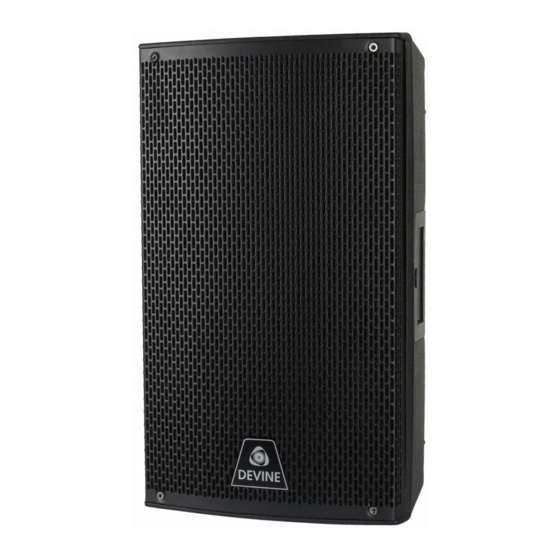

- Page 1 Onyx Active 10A / 12A / 15A Active speaker User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials 23-09--2017 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing this Devine Onyx active speaker. We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that this product has to offer.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Guidelines and operation of this device 1. TRS mini jack line input, for smartphones, laptops, tablets, MP3 players etc. (not equipped with a volume control) 2. microphone input via balanced 3-pin XLR or mono line input via balanced TRS jack plug (equipped with mic/line switch) 3.
-
Page 6: Operating The Device
Use these units with care and keep the volume at a reasonable level when possible. The volume should ideally be set to a comfortable level when listening to music. Devine cannot be held liable for any injuries or damage resulting from the use of this product. General use Housing The Onyx speaker has a robust housing made of moulded plastic. -
Page 7: Audio Technology
manual or instructions that come with your wall bracket to ensure proper installation before mounting the speaker. Voltage switch The speaker is equipped with a voltage switch for extra versatility. By default, it should be set to 230V and need no adjustment. In case of doubt, please contact your dealer. Audio technology The Onyx speaker series features the very latest in audio technology. - Page 8 Using together with a subwoofer When you want to use the Devine Onyx speakers in combination with a subwoofer, choose a suitable subwoofer like Devine's Onyx active subwoofers. It's best to choose a subwoofer that's a size bigger than your speaker.
- Page 9 Speaker troubleshooting guide If you have a problem with your speaker, please consult this troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common speaker problems, but it does not and cannot cover every eventuality.
- Page 10 Volume control is too loud Turn the volume down The tone controls for treble and/or Turn the tone control back to 12 bass are too high or too low. o'clock and listen to see clipping is still audible. Woofer or tweeter is defective If a speaker is exposed to a loud, distorted, or clipped signal for a longer period of time, this can...
-
Page 11: Specifications
Specifications General specifications for all models: – lightweight speaker cabinet with plastic housing – 10, 12 or 15 inch active speaker with woofer and compression driver + horn – metal grille – acoustic foam behind grille to prevent any unwanted matter from getting inside the speaker –...
