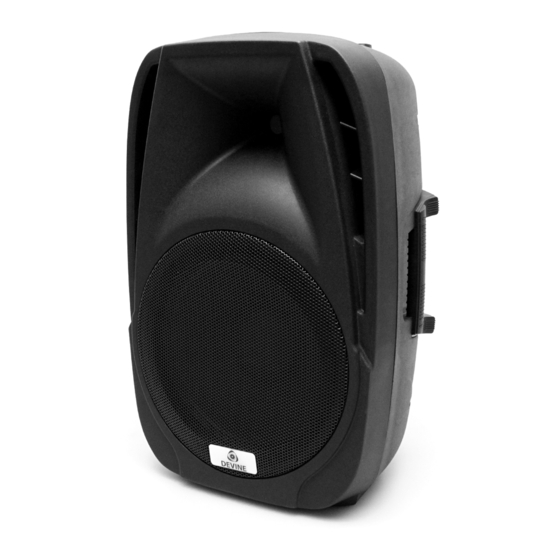

Blist 12D / Blist 15D
Self-powered speaker with class D amplifier
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 1.0
Creation date + author initials: 09-01-2014 RV Revision date + author initials: 13-01-2014 RV
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Devine Blist 12D
Summary of Contents for Devine Blist 12D
-

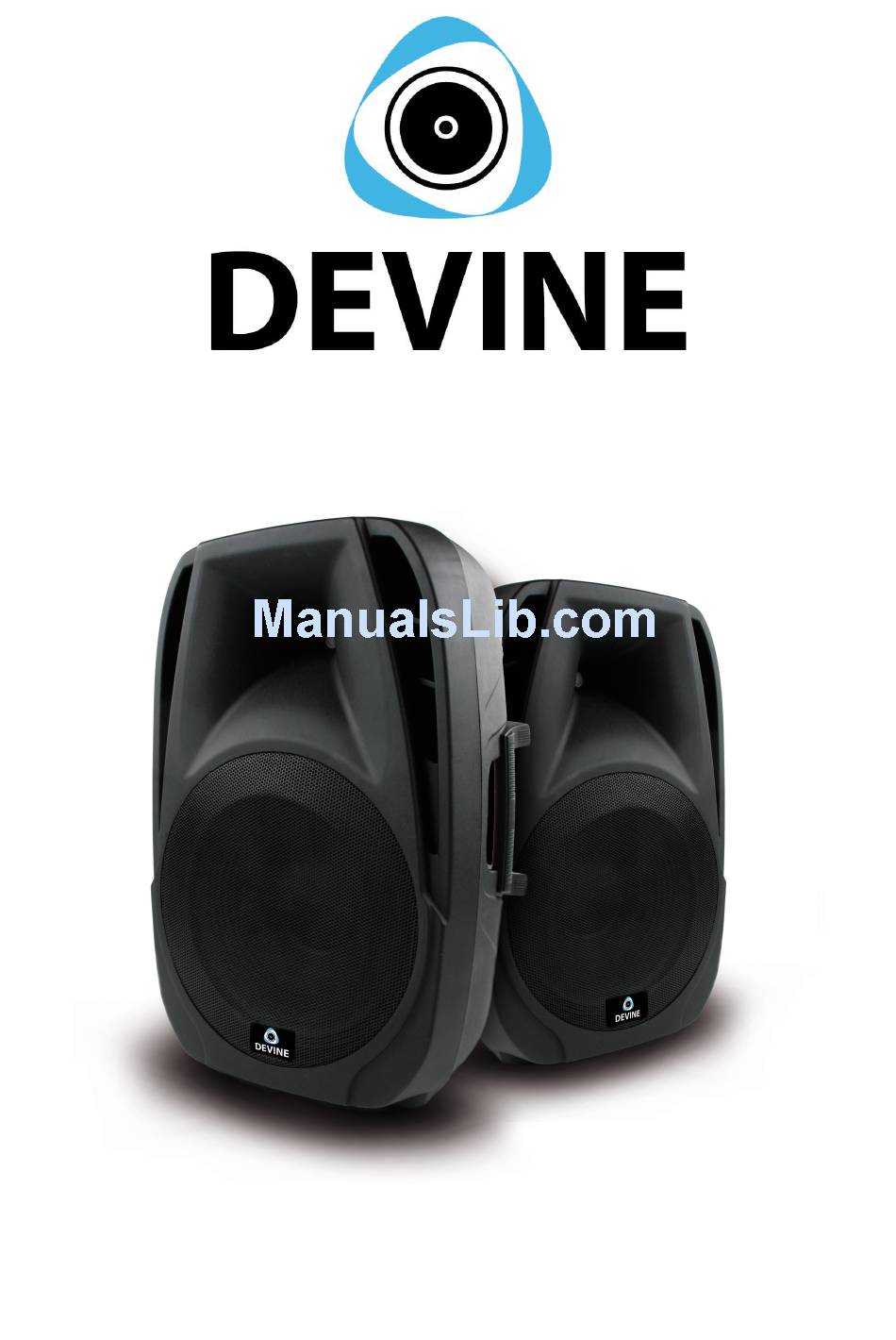

Page 1: User Manual
Blist 12D / Blist 15D Self-powered speaker with class D amplifier User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 09-01-2014 RV Revision date + author initials: 13-01-2014 RV... -
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Devine does not take responsibility for any damage or injury caused by improper use.
- Page 4 Guidelines for speakers WARNING! This loudspeaker is capable of producing a sound pressure level which can be harmful for humans and animals when used incorrectly and/or without protection. Possible permanent hearing loss may occur when humans or animals are exposed to high sound pressure levels for a longer period of time.
-
Page 5: Box Contents
Box contents Box contents: 1x powered speaker (Blist 12D or Blist 15D) Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 6: Speaker Overview
Speaker overview 19 20 Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 09-01-2014 RV Revision date + author initials: 13-01-2014 RV... - Page 7 1. Compression driver with asymmetrical horn 2. Woofer with protective grill 3. Bass reflex ports 4. Top handle 5. Side handle 6. MP3 display 7. SD card input 8. MP3 controls (mode, play/pause, stop, continuous play, previous, next) 9. USB drive input 10.
- Page 8 Line output: The line output is designed to transfer the incoming signal from one speaker, to another active speaker. This way, multiple speakers can be daisy-chained easily, for public address applications. The line output has the same signal as the master signal from the speaker. For instance, when you mix signals of the line and mic inputs, this mix will be transferred to other active speakers.
- Page 9 Powered speaker troubleshooting If you have any problems with active speakers, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 10 components panel or master volume) Also try to set Treble and Bass to normal levels. Speaker can not be placed on a Tightening knob is turned too tight Loosen tightening knob speaker stand Stand not suitable Measure stand top diameter, this should be around 33-36 mm for optimal placement.
-
Page 11: Technical Specifications
- Power supply: 95 – 230V AC, 50/60 Hz - Fuse: F3.15A, 20 mm glass Blist 12D: - 12 inch woofer with 2.5 inch voice coil, 50oz magnet - 1 inch compression driver with 1.35 inch voice coil and titanium diaphragm...
