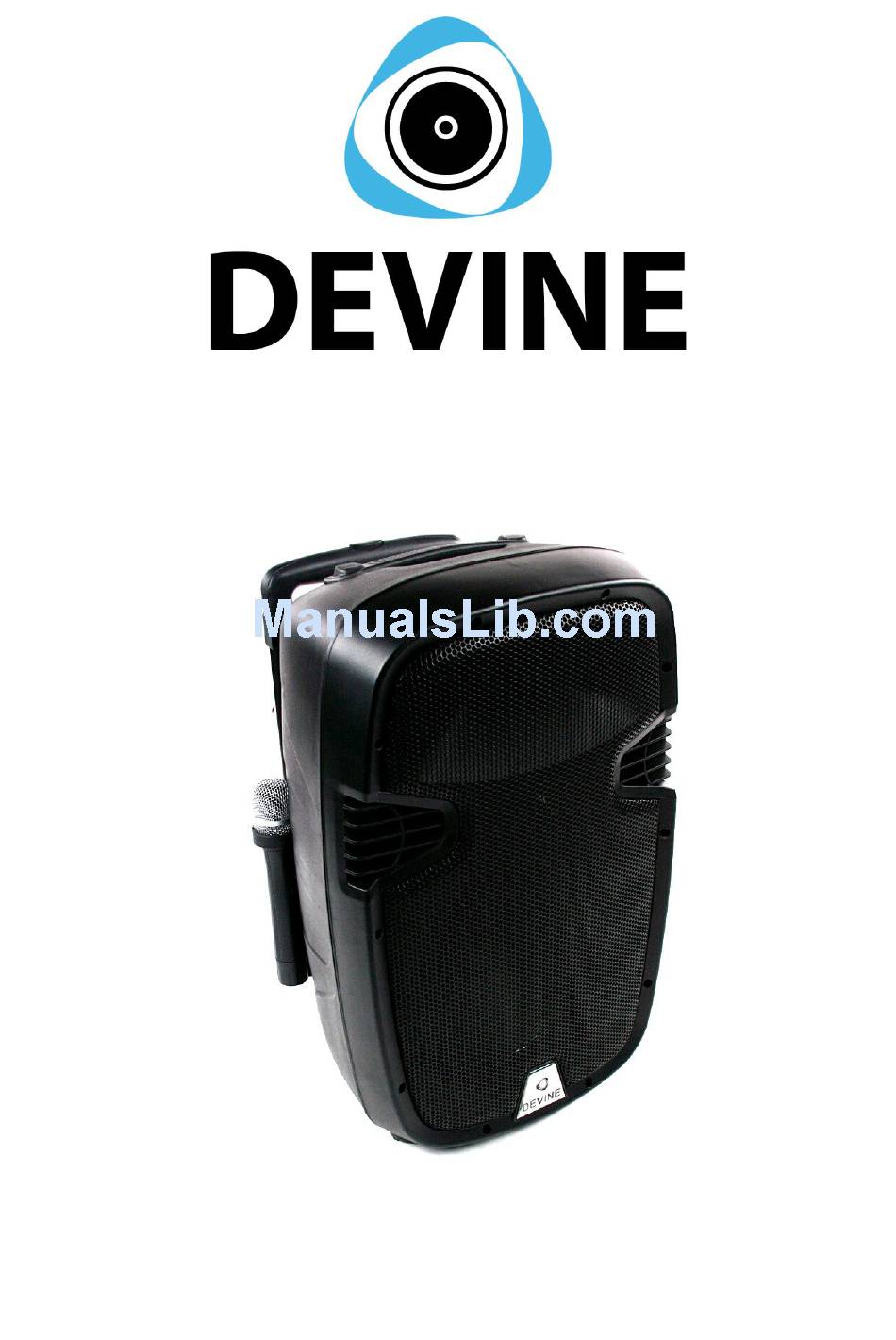

Page 1: User Manual

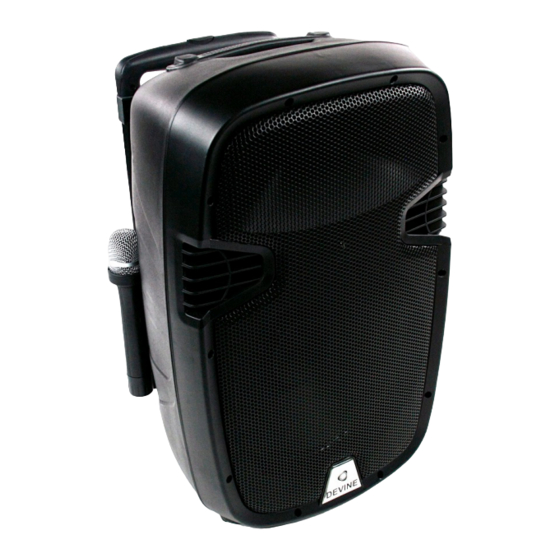

Nordo 12A Battery powered PA speaker User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 10-07-2013 RV Revision date + author initials: 20-02-2014 RV... -
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Devine does not take responsibility for any damage or injury caused by improper use.
- Page 4 Guidelines for battery powered speakers WARNING! This loudspeaker is capable of producing a sound pressure level which can be harmful for humans and animals when used incorrectly and/or without protection. Possible permanent hearing loss may occur when humans or animals are exposed to high sound pressure levels for a longer period of time.
- Page 5 Introduction Thank you for purchasing this Devine battery powered loudspeaker. Before you unpack all the received items, carefully read this manual to become familiar with the functions of the system. Also check the contents of the box to make sure all necessary parts are included.
-
Page 6: Product Overview
Product overview The rear of the unit contains lots of connections and settings for your convenience. This way you are able to connect additional equipment, plus you have optimal control over volumes and the equalizer. Please pay attention to the schedule below, as it contains valuable information for optimal performance. 11. -
Page 7: Preparing The System
Always use good quality batteries, as the battery life may vary. This may result in a working time between 8 and 20 hours. Use the included batteries only for testing purposes as their lifespan may vary. Devine recommends the use of Duracell Procell batteries or any comparable quality for optimal performance results. - Page 8 This input is used for additional line audio sources, such as PA-mixers, MP3-players, tablets, smartphones or laptops and is equipped with stereo cinch (RCA) connectors. Adapter cables to other stereo connectors (XLR, 6.35 mm jack and 3.5 mm mini jack are available at your local Devine dealer. - Mix Out This output is suitable to link this unit with multiple NORDO 12 units, for compact PA-venues.
- Page 9 WARNING: Do not connect a passive loudspeaker to this terminal output as this will blow up the speaker! Devine is not responsible for any damage to this speaker or any connected devices, caused by improper use.
-
Page 10: Troubleshooting
Troubleshooting Problem Possible Cause Solution Microphones do not turn on Battery low or not inserted Replace the batteries with new (correctly) ones. Check the polarity so the battery can be inserted in the correct way. Microphone not turned on Turn the microphone on No sound from microphone Microphones do not send any Check receiver for microphone... - Page 11 230V wall outlet. Speaker only works on wall outlet Battery dead Let a specialized technician replace the battery or contact your local dealer for help Speaker won't turn on Empty battery Connect the speaker to a 120 – 230V wall outlet to charge the internal battery and turn the speaker on.
-
Page 12: Technical Specifications
Technical specifications Battery powered loudspeaker Built-in, rechargeable battery Can be used with a 230V power source Up to 8 hours of use with a full battery 12 inch woofer with 1.5 inch voice coil Tweeter with integrated horn Built-in power amplifier: 30 Watt Nominal system impedance: 4 Ohms Trolley system with integrated wheels and retractable comfort handle 35 mm speaker stand adapter... - Page 13 Indicators: Charge LED indicator (green) Power LED indicator (red) RF A LED indicator (green) RF B LED indicator (yellow) VHF Power LED indicator (red) Power supply: 110/230V AC, 50/60 Hz 12V DC power outlet for small devices, with wire terminals Dimensions and weight: Size: 340 x 310 x 575 mm Net weight: 14.5 kg...
