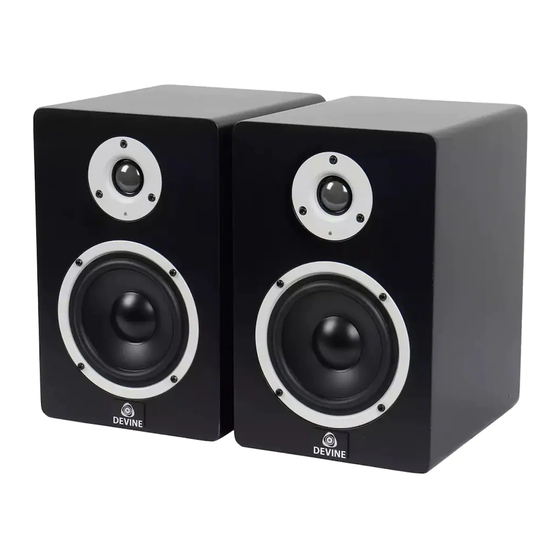

- Page 1 MR-5A / MR-6A active studio monitor set User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:14-07-2017 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing these Devine studio monitors. We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that this product has to offer. Please be sure to check that all of the parts and accessories listed below under 'box contents' are included in the package.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
-
Page 5: Product Overview
8. on/off switch 9. power input via IEC C14 and fuse holder Please note: the MR-6A is shown in the images. The MR-5A has similar components and the same connectors in the same places. The information in this user manual is subject to change at any time without notice. -
Page 6: Operating The Device
60 degrees and there's a distance of approximately 1 metre between each speaker as well as the listener. This setup is ideal for 'near field' monitors such as the MR-5A and MR-6A. The information in this user manual is subject to change at any time without notice. - Page 7 Please be aware, if your monitors are placed on a desk, they may not be positioned at the right height. Isolation and height positioning Once your monitors are in the right place, it's important to ensure that they are also positioned at the right height.
- Page 8 The type of cables used can also influence the quality of the sound. For best results, use good-quality balanced signal cables with TRS jack plugs or XLR connectors. The MR-5A and MR-6A are equipped with both types of inputs. Using unbalanced cables is also possible but this can have a negative influence on the volume of the incoming signal and makes it more sensitive to interference.
- Page 9 This can include recreational activities like listening to background music or amplifying the sound from your television. Devine does not provide warranty repairs to components that have been subjected to overload. Component and housing protection These monitors are not designed for mobile use. If they need to be transported, they should be placed in the original packaging or in a suitable flight case with a foam inlay of sufficient thickness to protect them against damage.
- Page 10 Studio monitor - solving problems If you have a problem with your studio monitors, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common studio monitor problems, but it does not and cannot cover every eventuality.
- Page 11 Interference in signal Unearthed power sockets Ensure that your monitors are always connected using the included cables to an earthed power socket. Equipment in the same power Equipment including fridges, freezers and group causing interference microwave ovens in the same power group are capable of causing interference.
-
Page 12: Specifications
– 3-pin XLR input (balanced) Technical info: – soft start and soft shut down circuit – voltage: 220 – 240V AC, 50 Hz Specifications per model Components/properties Devine MR-5A Devine MR-6A Frequency range 70 Hz – 20 kHz 50 Hz – 20 kHz Woofer...
