Artis series

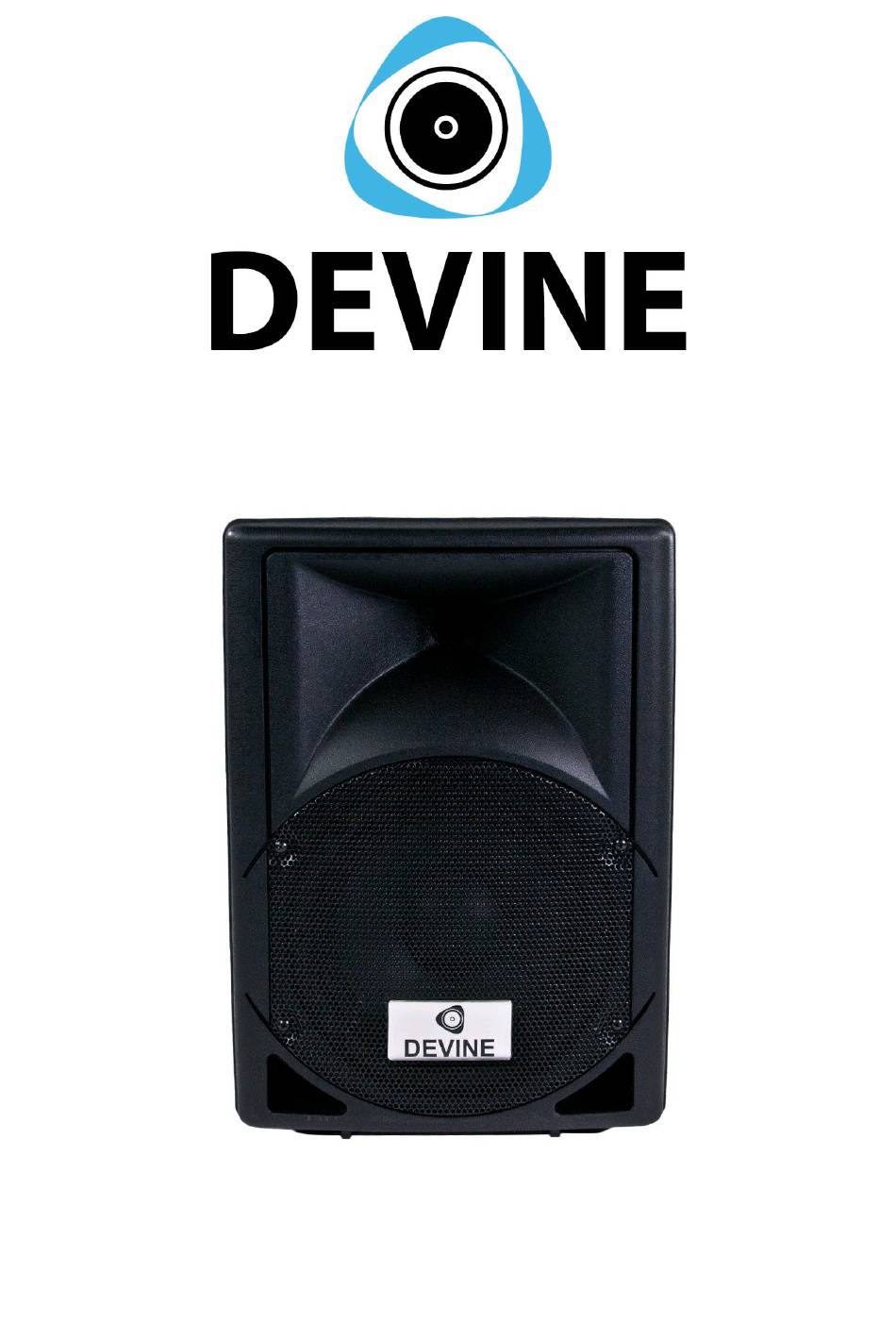

Artis 8A
powered speaker
User manual
Any information and illustrations shown in this user manual are subject to change without further notice.
User manual version: 4.0
Creation date + author initials: 27-03-2014 RV Revision date + author initials: 08-12-2014 RV
Advertisement
Related Manuals for Devine Artis Series
Summary of Contents for Devine Artis Series
- Page 1 Artis series Artis 8A powered speaker User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 4.0 Creation date + author initials: 27-03-2014 RV Revision date + author initials: 08-12-2014 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Devine does not take responsibility for any damage or injury caused by improper use.
- Page 4 Guidelines for speakers WARNING! This loudspeaker is capable of producing a sound pressure level which can be harmful for humans and animals when used incorrectly and/or without protection. Possible permanent hearing loss may occur when humans or animals are exposed to high sound pressure levels for a longer period of time.
- Page 5 - Make sure the speaker cabinet is installed on a proper surface when used. Place this speaker on the floor, on a professional speaker stand, on a suitable wall-bracket or on the included monitor feet. Devine is not responsible for any damage caused by improper installation of this device.
- Page 6 Use of the speaker This speaker is designed to perform in professional environments. Either speech, music, or any other type of sound can be played trough this speaker. The Artis A-series are equipped with their own power amplifier, mounted on the rear of the speaker. This module also houses the internal USB/SD MP3-player and the several connections + volume controls.
- Page 7 Power amplifier module section The built-in power amplifier module, combined with the built-in MP3-player, connectors and volume controls, has several options. A short explanation for each feature is described below: 1. MP3-player with USB and SD slot 9. Equalizer: Bass control (-12 to +12) 2.
- Page 8 For optimal performance and a long lifespan of your speaker, please pay attention to the following when using your Devine speaker: - This speaker is equipped with a CLIP limiter, which prevents damage to the speaker. This CLIP limiter will activate at excessive volume levels and a red LED shows when the CLIP limiter is active.
- Page 9 Powered speaker troubleshooting If you have any problems with active speakers, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 10 Speaker can not be placed on a Tightening knob is turned too Loosen tightening knob speaker stand tight Stand not suitable Measure stand top diameter, this should be around 33-36 mm for optimal placement. Use another speaker stand if needed. Buzzing noise coming from the Ungrounded power connection Connect the speaker to a...
-
Page 11: Features And Technical Data
Features and technical data - powered speaker - robust, lightweight construction - bass-reflex cabinet - protective grill - 8 inch woofer - 1 inch tweeter with dispersion horn - impedance: 8 Ohm - 35mm stand adapter with tightening knob - frequency response: 65 – 18.000 Hz (-10 dB) - sensitivity: 92 dB (+/- 2 dB) - size: 295 x 255 x 425 mm - weight: 8.5 kg...
