88 9100 001 C

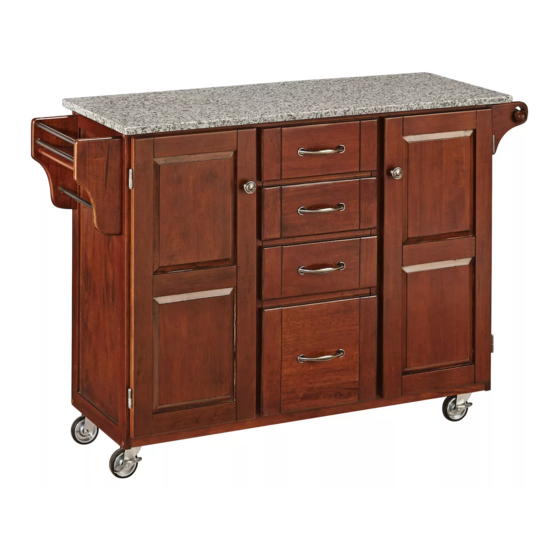

Kitchen Cart (Natural Finish)

IMPORTANT NOTE

Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

PART LIST

A.
Side Panel
1 pc.
H.
Back Panel
3 pcs.
S.
T.
Door
Door
1 pc.
1 pc.
Caster
two lock
two non-lock
4 pcs.
Tools Required For Assembly : Philips screwdriver
C.
Middle Panel
1 pc.
B.
Side Panel
1 pc.
I.
Back Stretcher
1 pc.
N.
O
Base Rack
Brush Chrome Pipes
1 pc.
3 pcs.
Head Cap Bolt
14 pcs. (+1 extra)
Hex Wrench
Wood Plug
1 pc.
10 pcs.
(+2 extra)
D.
Middle Panel
1 pc.
E.
Front Post
2 pcs.
K.
J.
Front Rail
Front Stretcher
3 pcs.
1 pc.
P.
Handle Arm
2 pcs.
U.
KD. Drawer
3 pcs.
Wood Screw
for Caster
16 pcs. (+2 extra)
Adjustable Pin
8 pcs. (+2 extra)
Casual Attire For Today's Home
Thai Patent Pending Numbers 077214
F.
G.
Back Post
Base
2 pcs.
1 pc.
L.
Side Rack
1 pc.
Q.
R.
Round Arm
Shelf
1 pc.
2 pcs.
V.
(For Drawer U&V packed in
KD. Drawer
separate carton with hardware
1 pc.
and assembly instructions.)
Pull Handle
2 pcs.
Machine Screw
for Pull Handle
4 pcs.
M.
Side Rack
1 pc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 88 9100 001 C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Styles 88 9100 001 C

  • Page 1 88 9100 001 C Kitchen Cart (Natural Finish) IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this...
  • Page 2 Assembly Instructions 2/3 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future. STEP 1 Attach 4 Casters to the underside of the Base (G), put the 2 Casters with...
  • Page 3 Assembly Instructions 3/3 STEP 4 Attach the Back and Front Stretcher (I), (J) to the assembled unit with Head Cap Bolts. Attach the Side Panel (B) to the other side of the unit with Head Cap Bolts. STEP 5 Attach the Side Rack (L) to the Side Panel (A) with the Head Cap Bolts.
  • Page 4 88 9100 001 C Drawer (U) Unit Part List HARDWARE LIST Side Part Front Part 1 pc. for each 1 pc. for each Pull Handle Wood Screw /” drawer. drawer. 3 pcs. (for Bottom Part) Side Part 18 pcs.(+1 Extra) 1 pc.
  • Page 5 88 9100 001 C Drawer (V) Unit Part List HARDWARE LIST Front Part Side Part 1 pc. 1 pc. Pull Handle Wood Screw /” Side Part 1 pc. (for Bottom Part) 1 pc. 6 pcs.(+1 Extra) Back Part Machine Screw Wood Screw 1”...
