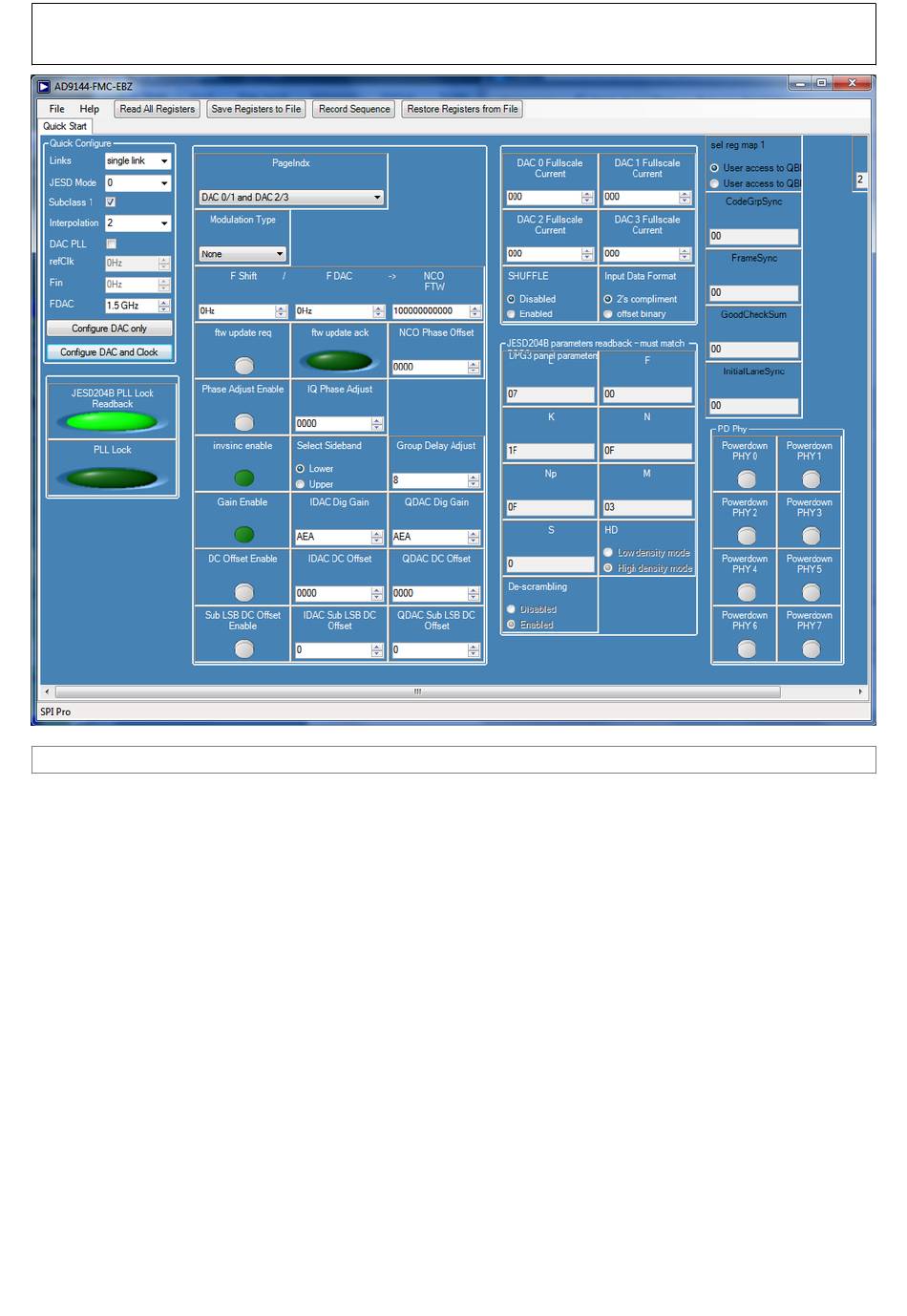

Figure 5. Fully Configured SPIPro Display
5. Select Single Tone under the Add Generated Waveforms Tab. Set Data Rate: 750Mhz, Desired
Frequency: 112Mhz, Amplitude: -1dbFS, Uncheck Unsigned Data, Check Generate Complex Data (I
and Q)
6. Populate the data playback selections as shown in Figure 6.
7. Click Download ( ) and Play ( ). The spectrum in figure 7 will appear on all 4 DAC outputs (J17, J4, J5,
and J14), Serial Line Rate will be 7.5Gsps.
