System Sensor SPSWL-ALERT Installation And Maintenance Instructions page 2

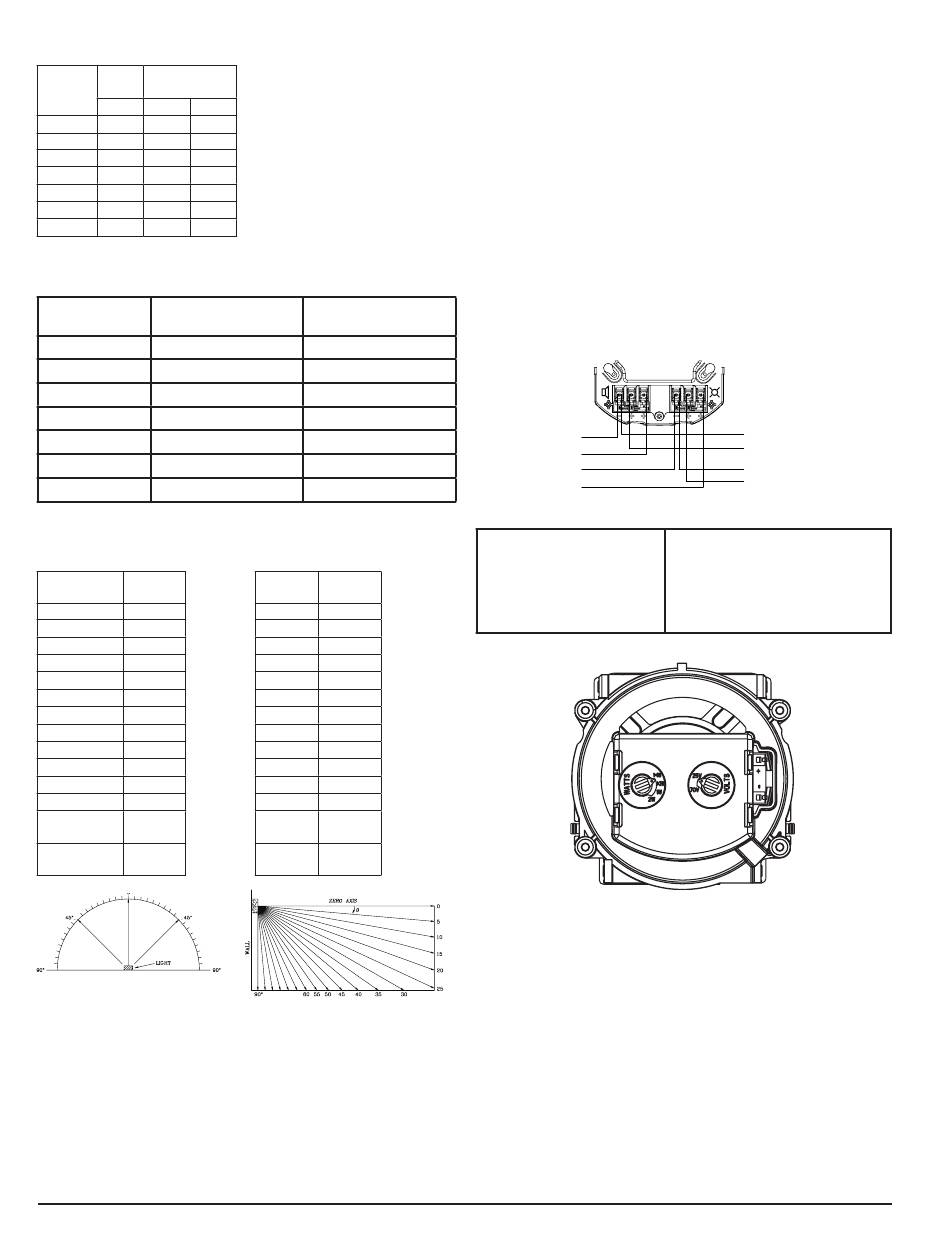

TABLE 1. WALL-MOUNT STROBE CURRENT DRAW (mA)
8-17.5
16-33 Volts
Candela Volts
DC DC FWR
15 88 43 60
30 143 63 83
75 - 107 136
95 - 121 155
110 - 148 179
135 - 172 209
185 - 222 257
TABLE 2. CANDELA DE-RATING BY LENS COLOR
Wall Candela Private Mode
Setting
15
30
75
95
110
135
185
FIGURE 2. WALL LIGHT OUTPUT –
HORIZONTAL DISPERSION
Percent of
Degrees*
Rating
0 100
5-25 90
30-45 75
50 55
55 45
60 40
65 35
70 35
75 30
80 30
85 25
90 25
Compound 45
24
to the left
Compound 45
24
to the right
A0467-00
NOTE: Products set at 15 and 30
candela automatically work on ei-
ther 12V or 24V power supplies.
The products are not listed for
12V DC operation when set to any
other candela settings.
Emergency Warning
15 12
30 24
75 60
95 75
110 85
135 105
185 145
FIGURE 3. VERTICAL
DISPERSION, WALL TO FLOOR
Percent of
Degrees*
Rating
0 100
5-30 90
35 65
40 46
45 34
50 27
55 22
60 18
65 16
70 15
75 13
80 12
85 12
90 12
This is generated text for figtxt.
A0469-00
*Tolerance of ±1 degree is permitted.
WIRING AND MOUNTING
All wiring must be installed in compliance with the National Electric Code
and the local codes as well as the authority having jurisdiction. Wiring must
not be of such length or wire size which would cause the notification appli-
ance to operate outside of its published specifications. Improper connections
can prevent the system from alerting occupants in the event of an emergency.
Wire sizes up to 12 AWG (2.5 mm²) may be used with the mounting plate. The
mounting plate ships with the terminals set for 12 AWG wiring.
Make wire connections by stripping about
the wire. Then slide the bare end of the wire under the appropriate clamping
plate and tighten the clamping plate screw.
See Figure 4 for wiring terminals and strip guide reference.
1. Connect the speaker as shown in Figure 4.
2. There are two rotary switches on the back of the product. The first switch
is used to select either 25 or 70.7 volts input and the second switch is used to
select the input power of ¼, ½, 1 or 2 watts. (See Figure 5.)
FIGURE 4. WIRING DIAGRAM AND WIRING TERMINALS
INPUT
(-)
From Amplifier
(+)
(-)
From FACP
(+)
Wiring Terminals
1. Negative (-). Line in and out
2. Positive (+). Line in and out
3. Positive (+). Line in and out
FIGURE 5. SPEAKER WATTAGE AND VOLTAGE SETTINGS
SHORTING SPRING FEATURE
System Sensor notification appliances come with a shorting spring that is pro-
vided between terminals 2 and 3 of the mounting plate to enable system con-
tinuity checks after the system has been wired, but prior to installation of the
final product. (See Figure 6.) This spring will automatically disengage when
the product is installed, to enable supervision of the final system.
2
/ " of insulation from the end of
3
8
OUTPUT
(-)
To Next Device or EOL
(+)
(-)
To Next Device or EOL
(+)
A0519-00
NOTE: Do not loop electrical wiring un-
der terminal screws. Wires connecting
the device to the control panel must be
broken at the device terminal connec-
tion in order to maintain electrical su-
pervision.
A0419-01
I56-0003-001
01-12
