Summary of Contents for Parker OSPP-Classic

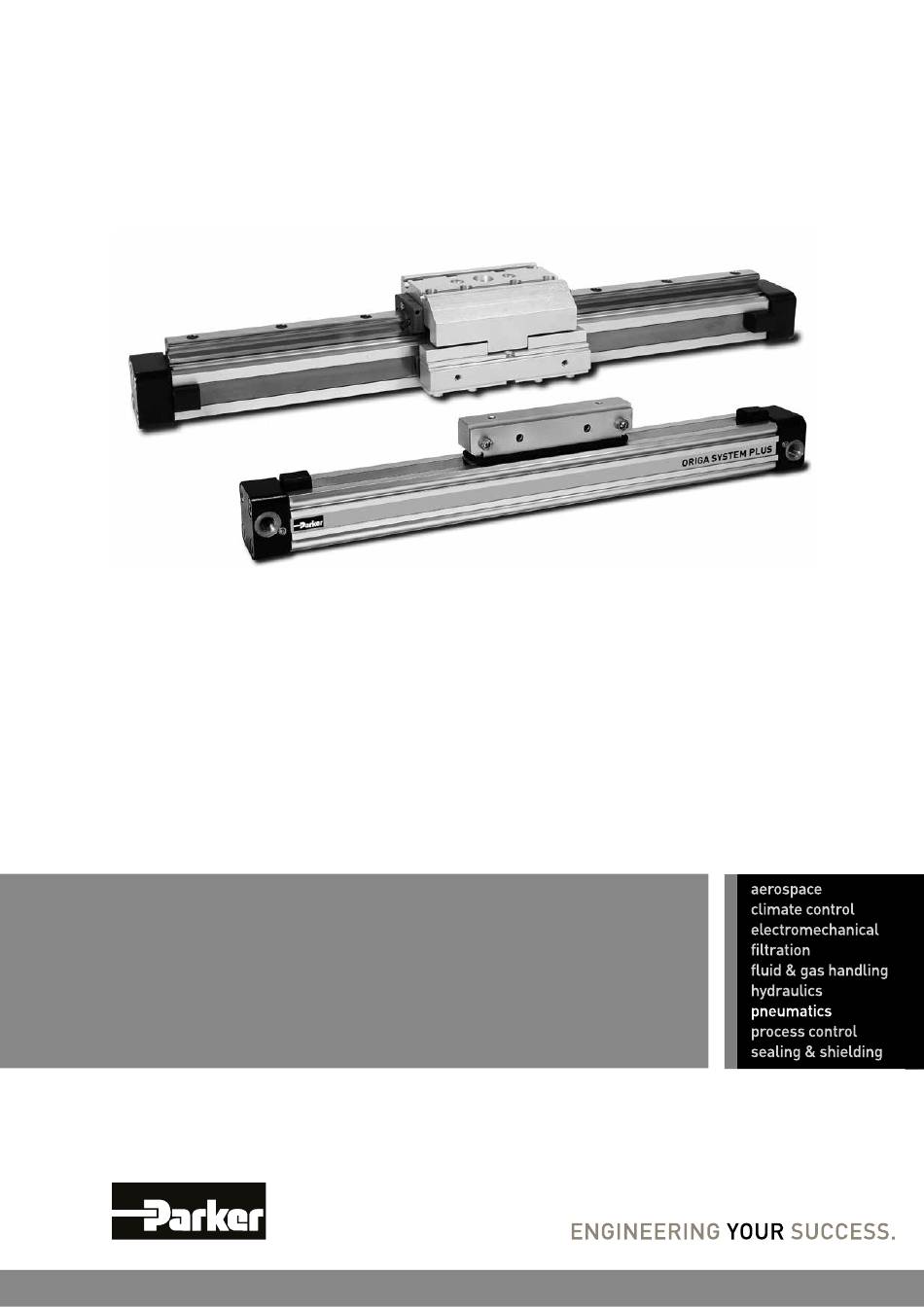

- Page 1 Pneumatic Linear Drive OSPP-Classic / OSPP-Classic-KF Operating Instructions...
- Page 2 Pneumatic Linear Drive OSPP-Classic / KF...
-
Page 3: Table Of Contents
Cleaning Cylinder Removal, Dismantling and Cleaning Cleaning, Repairing, Re-greasing the OSPP-Classic-KF Guide Fault finding OSPP-Classic and OSPP-Classic-KF Defect diagnosis Cleaning the Inner Sealing Band OSPP-Classic / KF Disposal Spare parts list OSPP-Classic-cylinder Guide cylinder OSPP-Classic-KF This operating manual is the translation of the original German version. -
Page 4: Foreword To The Operating Instructions
• Compliance with these Operating Instructions. Before the OSPP-Classic / OSPP-Classic-KF is commissioned, it must be clearly established that the ma- chine or plant into which it is to be installed complies with the requirements of the EC Machines Directive. -
Page 5: Safety
Please inform us immediately of any recurring malfunctions or problems with the OSPP-Classic v. OSPP-Classic-KF. Safety Authorized Use The operating safety of the OSPP-Classic / OSPP-Classic-KF (called „Linear Drive“) is only guaranteed if it is used in authorized applications. Authorized applications of the Linear Drives are: •... -
Page 6: Guarantee
Any liability of Parker Hannifin GmbH – regardless of its basis in law – exists only if there has been intent or gross negligence, or culpable injury to life, body or health, or product defects which have been fraudulently concealed or whose absence has been explicitly guaranteed in writing. -
Page 7: Transport And Storage
Transport and storage Transport In order to avoid damages during transport and storage the equipment shall be transported as indicated below and protected with appropriate packaging against dirt, humidity and miss handling. Danger from falling load Inappropriate transport and installation of the Linear Drive can lead to: •... -
Page 8: Technical Description Ospp-Classic
Free of water and dirt. Additional lubrication with oil mist is not necessary. Accessory supplied : Assembly tool. Noise level : The sound emmission values (sound level) of the OSPP-Classic are below 70 dB(A). Installation : In any position. Temperature-Range : From -10°... -
Page 9: Design And Functional Principle
(page 28). 6.2.1 General Design Principle • The OSPP-Classic is a pneumatic cylinder without piston rod. • The longitudinal slot in the cylinder is sealed and protected by stainless steel bands. • The piston consists of piston yoke with support rings, piston seals, slideshoes and magnet set on the inside. -
Page 10: Technical Description Ospp-Classic-Kf
Pneumatic Linear Drive OSPP-Classic / KF Technical description OSPP-Classic-KF Technical Data For further detailed information about • Dimensions • Space requirements • Forces and loads • Speeds and damping energy • Weight and other data, see OSPP-Classic-KF catalogue. Operating pressure range : = 8 bar. -
Page 11: Design And Functional Principle
Numbers in brackets refer to parts list item and exploded view drawing of the spare parts list (page 30). 7.2.1 General Design Principle • The basic cylinder is the OSPP-Classic as described previously. • The guide (-KF) is attached to the OSPP-Classic cylinder. • The circulating ball bearing guide -KF consists of: - a guide rail which is fixed to the cylinder using a clamping profile, a guide carriage with two ball bush housings in tandem configuration. -
Page 12: Commissioning Of A Complete Plant
• Secure the payload only at the corresponding OSPP-Classic: 2 threaded holes on the centre piece or use the 4 off side through holes. OSPP-Classic-KF: T- on the guide carriage (threaded holes OSPP-Classic-KF16). •... -
Page 13: Typical Circuits
Typical Circuits Accessories Mountings and Proximity Sensors Owing to the broad range of accessories the linear drives can be fixed regardless of the surrounding conditions. Our magnetic switches from catalogue allow contactless position detection of the linear drives. For further information see OSPP catalogue. Commissioning Installation work and commissioning must be carried through by specialists only! The linear drive can produce quick linear movements with high force. -
Page 14: Commissioning Of A Complete Plant
Continue as for individual cylinder (chapter 9.1). Removal from plant Danger of crushing and eye injuries Take great care when removing the OSPP-Classic / OSPP-Classic-KF. Observe the Chapter 2, page 5 “ Safe- ty“ and the local safety regulations. Dangers are: •... -
Page 15: Service / Maintenance Ospp-Classic / -Kf
Pos. 36 Screw for end cap Screws of the end cap mounting Service / Maintenance OSPP-Classic / -KF Attention Maintenance and repair work must only be carried out by specially trained and instructed personnel! The machine or the working zone must be cordoned off for safety purposes as required! -
Page 16: Cleaning
Pneumatic Linear Drive OSPP-Classic / KF 11.2 Cleaning General For cleaning, use only material-protective media and non-fluffy cloths. Do not use high-pressure cleaners! 11.3 Cylinder Removal, Dismantling and Cleaning Danger of eye injuries and cuts on fingers etc. Safety glasses must be worn! There is danger of : •... - Page 17 11.3.2 Cylinder OSPP-Classic reassembly Information Note the position of the parts as shown on the exploded view drawing on page 28. • Danger of cuts on fingers etc. The sealing bands, especially the inner sealing band has very sharp-edges. Wear gloves! Preparations: •...
- Page 18 Pneumatic Linear Drive OSPP-Classic / KF Fitting the piston Information Piston seals have a sensitive sealing lip which should only be inserted into the cylinder tube with a pulling action. For this reason the fitting sequence should be carried out as follows: •...
- Page 19 Inserting the Cushioning Spigots (20) • Grease O-ring grooves (21), insert O-rings and grease them. • Grease cushioning spigots. • Place inlay nuts (26) in cushioning spigots with ridges upwards. • Push cushioning pad (22) on to cushioning spigot (20), mind the correct installation position, bore hole at the cushion spigot must not be closed.
- Page 20 Pneumatic Linear Drive OSPP-Classic / KF Checking Tension of Inner Sealing Band Inner sealing band must be fitted: • without pretension, • without hanging loose. Completing the Cylinder Information See “torque moments for screws“ page 18. Only for Ø 63 and Ø 80: •...
-
Page 21: Cleaning, Repairing, Re-Greasing The Ospp-Classic-Kf Guide
11.4 Cleaning, Repairing, Re-greasing the OSPP-Classic-KF Guide Guide cylinders OSPP-Classic-KF16 / -KF25 / -KF32 / -KF40 / -KF50 11.4.1 Lubrication There are grease nipples at the front of the carriers (8) for re-lubrication. The re-lubrication intervals depend on the environmental influences such as dirt, vibrations, impact load etc. - Page 22 In order to remove the clamping profile (4), one of the endcaps (35) of the OSPP-Classic cylinder needs to be removed. Please refer to the instructions contained in section 11.3.1 on page 16.
- Page 23 Fitting of the Guide Rail (5) Depending on the size of the cylinder washers (7) must be used when fixing the guide rail: washers must be used for OSPP-Classic-KF16 / -KF40 / -KF50! Note: Guide rail screws(6) must be secured against incidental loosening.
- Page 24 -KF-32 -KF-40 -KF-50 3 Nm 5.5 Nm 10 Nm 10 Nm 10 Nm Information Fitting the OSPP-Classic-KF into a machine or system is basically similar to the OSPP-Classic cylinder. For further notes please refer to section 8 on page 12.
-
Page 25: Fault Finding Ospp-Classic And Ospp-Classic-Kf
Fault finding OSPP-Classic and OSPP-Classic-KF 12.1 Defect diagnosis Defect Cause Correction Cylinder leaks somewhere along inner Inner sealing band dirty. Clean inner sealing band. sealing band. Cylinder leaks in piston area. Piston seal defective. Replace piston seal. Cylinder leaks at end cap. -
Page 26: Cleaning The Inner Sealing Band Ospp-Classic / Kf
Pneumatic Linear Drive OSPP-Classic / KF 12.2 Cleaning the Inner Sealing Band OSPP-Classic / KF Dirt particles can lodge between the inner sealing band and the cylinder bore and cause leakage. Cleaning is then required. Warning! Danger of eye injury ! Wear safety glasses where indicated! •... -
Page 28: Spare Parts List
11776 11778 Seal-Kit Viton slow speed grease, 23,24,28,31,61 with grease, cleaning tool and centering tool. * Please use this order pattern: IDENT-NR. + „FIL“, example: 11795FIL Seal-Kit for OSPP-Classic 25 Service-Kits OSPP-Classic Ident - No. ** Item Description (Pos. No.) Ø... - Page 29 Replacement Parts OSPP-Classic Ø 16 - 80 Ident - No. *(**) Item Description (Pos. No.) Ø 16 Ø 25 Ø 32 Ø 40 Ø 50 Ø 63 Ø 80 Cylinder barrel with magnetstrip ** 10346 10002 10293 10062 10232 10381...
-
Page 30: Guide Cylinder Ospp-Classic-Kf
Pneumatic Linear Drive OSPP-Classic / KF 14.2 Guide cylinder OSPP-Classic-KF +) only -KF16 -KF32 -KF40 -KF50 ++) only -KF16 -KF40 -KF50 Replacement Parts OSPP-Classic-KF Ident - No. ** Item Description POS. NO. KF 16 KF 25 KF 32 KF 40... - Page 31 Notes...
- Page 32 Tel: +36 23 885 470 parker.southafrica@parker.com parker.hungary@parker.com P-A7P048GB 04/2020 © 2020 Parker Hannifin Manufacturing Germany GmbH & Co. KG - All rights reserved. Parker Hannifin Manufacturing Germany GmbH & Co. KG Pneumatic Division Europe – Origa Industriestraße 8 70794 Filderstadt, Germany...
