Installation Instructions – HDF LED
INSTALLATION
Tools & Materials Required
1.
Adjustable pliers

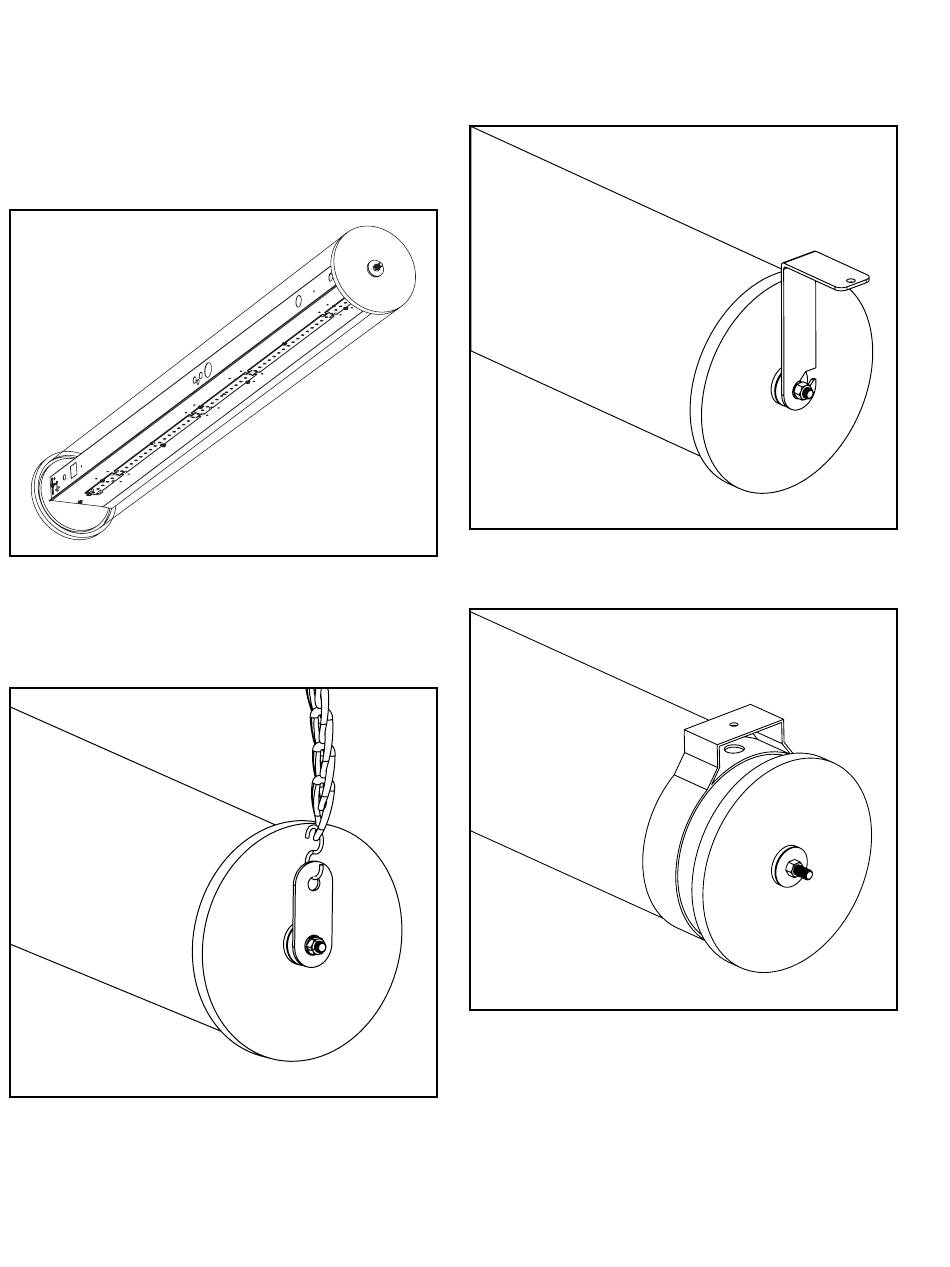

Figure 1. HDF 4ft Clear Version
HDF LED is intended for three types of Mountings:
(All to be ordered separately as an accessory)
1.
Stainless Steel Sash Chain
Figure 2. Stainless Steel Sash Chain S-Hook and Bracket
2
COOPER LIGHTING SOLUTIONS
IB519082EN
Installation Instructions
2.
Surface Mount
Figure 3. Surface Mount Bracket
3.
Chain Mounting Bracket
Figure 4. Chain Mount Bracket
