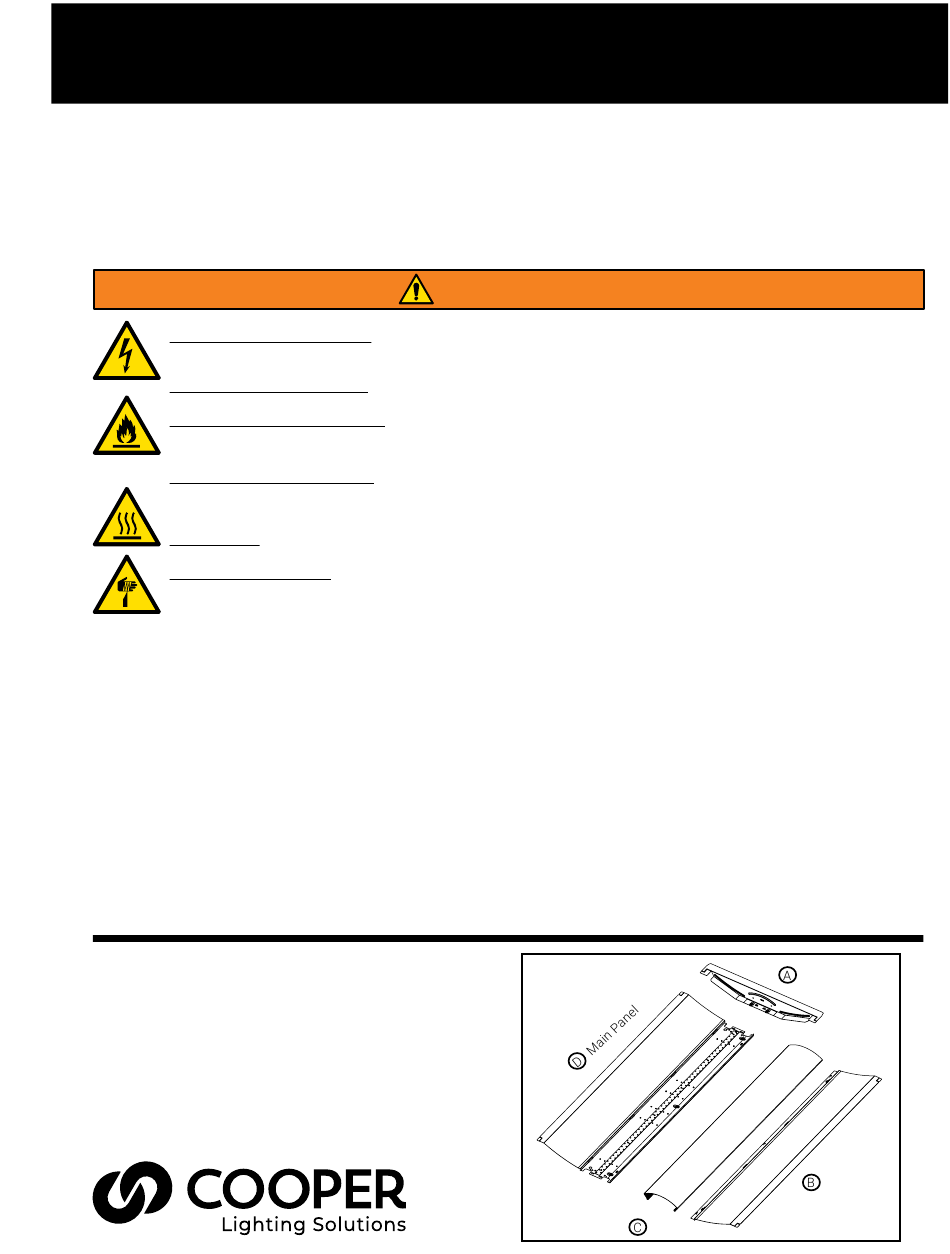

Installation Instructions – Cruze LED Retrofit Kit
Instructions d'installation – Cruze LED Retrofit Kit
Instrucciones de instalación – Del kit adaptador de luminaria
LED Cruze
Risk of Fire, Electrical Shock- Retrofit kit installation requires knowledge of lighting luminaires' electrical
systems. If not qualified, do not attempt installation. Contact a qualified electrician.
Risk of Fire or Electric Shock- Disconnect all power before installing retrofit kit.
Risk of Fire and Electric Shock- Luminaire's wiring, ballast, or other electrical parts may be damaged during
installation of retrofit kit hardware. Check for enclosed wiring and components.
Risk of Fire or Electric Shock- Install this kit only in luminaires that have the construction features and
dimensions shown in the photographs and/or drawings and where the input rating of the retrofit kit does not
exceed the input rating of the luminaire.
Risk of Burn- Disconnect power and allow fixture to cool before handling or servicing.
Risk of Personal Injury- Due to sharp edges, handle with care.
Only those open holes indicated in the photographs and/or drawings may be made or altered as a result of kit
installation. Do not leave any other open holes in enclosure of wiring or electrical components.
To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or any sharp objects.
Failure to comply with these instructions may result in death, serious bodily injury and property damage.
DISCLAIMER OF LIABILITY: Cooper Lighting Solutions assumes no liability for damages or losses of any kind that may
arise from the improper, careless, or negligent installation, handling or use of this product.
CAUTION: Retrofit kit is used for 2'x4' or 2'x2' luminaires with min. housing depth of 3" (measured from inside top of
housing to T-grid).
IMPORTANT: Read carefully before installing fixture. Retain for future reference.
NOTICE: Fixture may become damaged and/or unstable if not installed properly.
Note: Specifications and dimensions subject to change without notice.
ATTENTION Receiving Department: Note actual fixture description of any shortage or noticeable damage on delivery
receipt. File claim for common carrier (LTL) directly with carrier. Claims for concealed damage must be filed within 15 days
of delivery. All damaged material, complete with original packing must be retained.
NOTICE: Fluorescent lamps contain Mercury. Dispose according to local, state, or federal laws.
INSTALLATION
Retrofit Kit Contents:
2 – End Plates (A)
1 – Side Panel (B)
1 – Lens (C)
1 – Main Panel (D)
WARNING
Recommended Tools:
For optimum installation we
recommend using an 1800
RPM drill with a 1/4" Hex
Driver Bit.
Wire cutters/strippers.
Flat head screwdriver
Metalux
End x2
Side Panel
Lens

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Metalux Cruze and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cooper Metalux Cruze

  • Page 1 Failure to comply with these instructions may result in death, serious bodily injury and property damage. DISCLAIMER OF LIABILITY: Cooper Lighting Solutions assumes no liability for damages or losses of any kind that may arise from the improper, careless, or negligent installation, handling or use of this product.
  • Page 2: Installation Steps

    Install Main Panel (D) between luminaire housing and T-grid. Make sure the tabs at each corner of the Main Panel slide into each slot on the End Plates (A). Disconnect host ballast from main supply wire and remove ballast. COOPER LIGHTING SOLUTIONS IB519034EN Installation instructions...
  • Page 3 Panel slide into each slot on the End Plates. Connect quick disconnect from driver to main supply 12. Secure Side Panel (B) by turning each fastener 90 wire. degrees. Then remove LED protective cover from LED board COOPER LIGHTING SOLUTIONS IB519034EN Installation instructions...
  • Page 4 A flat blade screwdriver may be needed to assist in the fitting of the kit in the existing luminaire. Dispose and/or recycle all material according to ote: Federal, State, and local laws. COOPER LIGHTING SOLUTIONS IB519034EN Installation instructions...
  • Page 5: Operation

    LED load at the rated output for at least 90 minutes. The battery is not fully charged until 24 hours after ote: the AC Power is applied. COOPER LIGHTING SOLUTIONS IB519034EN Installation instructions...
  • Page 6: Installation

    Outils recommandés: Panneau latéral Pour une installation optimale, nous vous recommandons ● d'utiliser une perceuse de 1800 tr/mn avec une mèche hexagonale de 6,35 mm (1/4 po). Lentille Coupe-fil/pince à dénuder. ● Tournevis à tête plate ● COOPER LIGHTING SOLUTIONS IB519034EN Instructions d’installation...
  • Page 7: Étapes D'installation

    T. Assurez-vous que les languettes à chaque angle du panneau principal coulissent dans les fentes des embouts (A). Déconnectez le ballast hôte du câble d’alimentation principal et retirez le ballast. COOPER LIGHTING SOLUTIONS IB519034EN Instructions d’installation...
  • Page 8 Connectez le raccord rapide du pilote au fil 12. Fixez le panneau latéral (B) en tournant chaque attache d’alimentation principal. à 90 degrés. Puis retirez le couvercle de protection des DEL du panneau à DEL COOPER LIGHTING SOLUTIONS IB519034EN Instructions d’installation...
  • Page 9 Un tournevis plat peut être nécessaire pour aider à installer la trousse dans le luminaire existant. Éliminez ou recyclez tous les matériaux emarque: conformément aux lois fédérales, provinciales et locales. COOPER LIGHTING SOLUTIONS IB519034EN Instructions d’installation...
  • Page 10 En cas de panne de courant, le ballast d’urgence passe automatiquement en alimentation d’urgence, faisant fonctionner sa charge de DEL à la sortie nominale pendant au moins 90 minutes. La batterie ne sera entièrement chargée emarque: qu’après 24 heures d’alimentation CA. COOPER LIGHTING SOLUTIONS IB519034EN Instructions d’installation...
  • Page 11: Instalación

    1 – Panel principal (D) ● Herramientas recomendadas: Para una instalación óptima, recomendamos utilizar un Panel lateral ● taladro de 1800 RPM con una broca hexagonal de 1/4". Alicates/pelacables. Lente ● Destornillador de cabeza plana ● COOPER LIGHTING SOLUTIONS IB519034EN Instrucciones de instalación...
  • Page 12 T. Asegúrese de que las pestañas en cada ángulo del panel principal se deslicen hacia cada ranura de las placas traseras (A). Desconecte el balasto receptor del cable de alimentación principal y retire el balasto. COOPER LIGHTING SOLUTIONS IB519034EN Instrucciones de instalación...
  • Page 13 Conecte el desconector rápido del controlador que va 12. Asegure el panel lateral (B) girando cada sujetador unos hacia el cable de alimentación principal. 90 grados. Retire la cubierta protectora LED del tablero LED. COOPER LIGHTING SOLUTIONS IB519034EN Instrucciones de instalación...
  • Page 14 Puede necesitarse un destornillador de paleta plana para ayudar a ajustar el kit en la luminaria existente. Deseche o recicle todos los materiales conforme a las ota: legislaciones federal, estadual y local. COOPER LIGHTING SOLUTIONS IB519034EN Instrucciones de instalación...
  • Page 15 LED en la capacidad nominal durante al menos 90 minutos. La batería no estará totalmente cargada sino hasta ota: 24 horas después de aplicar la alimentación de CA. COOPER LIGHTING SOLUTIONS IB519034EN Instrucciones de instalación...
  • Page 16 Visite www.cooperlighting.com para conocer nuestros términos y condiciones. Cooper Lighting Solutions 1121 Highway 74 South Peachtree City, GA 30269 P: 770-486-4800 Cooper Lighting Solutions is a registered www.cooperlighting.com trademark. All trademarks are property of their respective owners. Product availability, specifications,...
