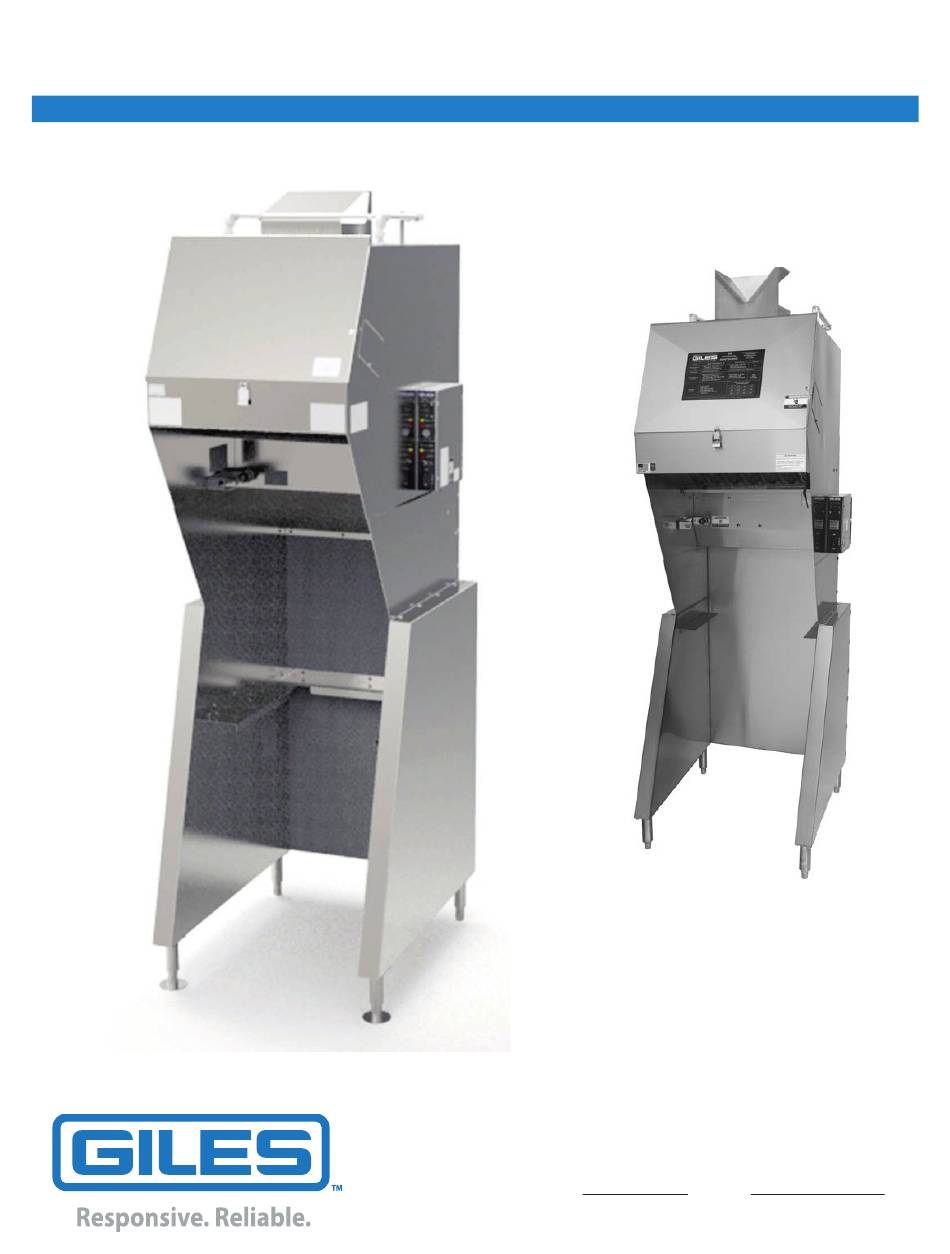

Operations & Service Manual
FSH-2 & FSH-2A-99

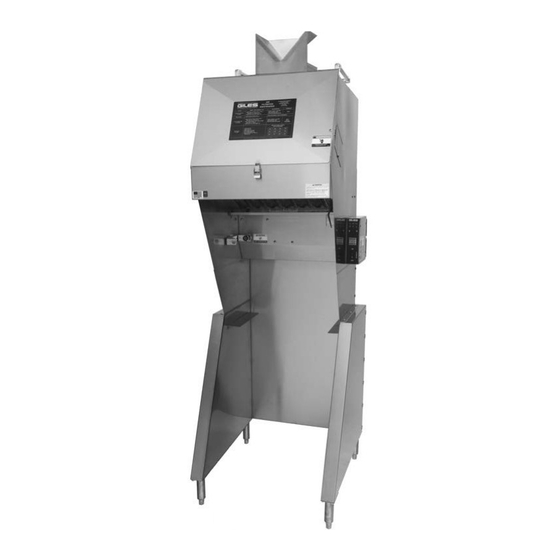

Model: FSH-2
Model: FSH-2A-99
ISO 9001-2015 Registered • Committed to Quality
2750 Gunter Park Drive West • Montgomery, AL 36109 USA
Toll Free: 800.554.4537
Other: 334.272.1457
(USA & Canada Only)
Fax: 334.239.4117 • Website: www.gfse.com • Email: services@gfse.com
Printed in USA, Form 60200 (Rel. Date: Jul.1998, Rev. Date: Feb.2020. Rev. K)
