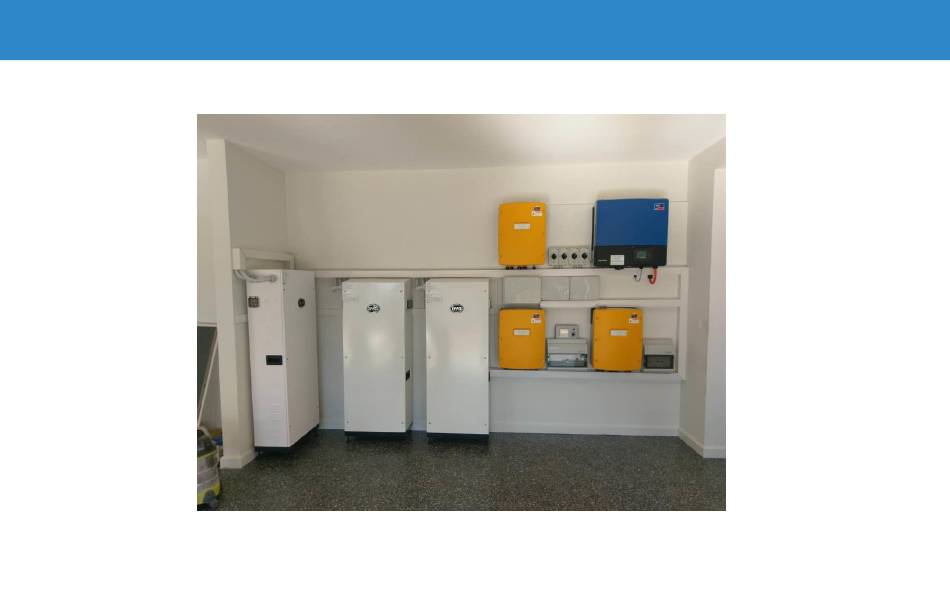

- Page 1 B-Box with Sunny Island Commissioning...
- Page 2 Connecting B-Box BMU to Sunny Island B-BOX LV with Sunny island Standard network cable To inverter To batteries...
- Page 3 Connecting B-Box BMU to Battery Modules B-BOX LV with Sunny island To Battery Module...
- Page 4 Comms Cables Connection in One Cabinet B-BOX LV with Sunny island...
- Page 5 Comms Cables Connection for Master & Slave B-Box It doesn’t matter which port is in or out B-Box 2: Slave B-Box 1: Master BYD B-Box Training © Storing Renewable Energy 2016 13 June 2018...
- Page 6 Address Setup for 1 Cabinet Adedress No. 2 010000 Adedress No. 1 100000 Adedress No. 4 001000 Adedress No. 3 110000 B-Box 1: Master BYD B-Box Training 13 June 2018 © Storing Renewable Energy 2016...
- Page 7 No. 2 No. 5 010000 101000 Redundent Master Adedress Adedress No. 8 No. 3 110000 000100 Adedress Adedress No. 4 No. 7 111000 001000 B-Box 1: Master B-Box 2: Slave BYD B-Box Training 13 June 2018 © Storing Renewable Energy 2016...
- Page 8 No. 12 No. 7 No. 3 111000 110000 001100 Adedress Adedress Adedress No. 8 No. 4 No. 11 110100 000100 001000 B-Box 1: Master B-Box 2: Slave B-Box 3: Slave BYD B-Box Training 13 June 2018 © Storing Renewable Energy 2016...
- Page 9 (WIFI version) Battery protection SOC setup for Sunny Island Connect to SUNNY ISLAND's WIFI with your computer or cellphone Connection URL 192.168.12.3 Battery - Protection mode v12 (WIFI version) BYD B-Box Training 13 June 2018 © Storing Renewable Energy 2016...
- Page 10 Battery protection SOC setup for Sunny Island v11 (No WiFi) Battery capacity nominated = 50Ah * battery numbers e.g. For 4PCS batteries = 50Ah*4 = 200Ah v11 (No WiFi) BYD B-Box Training 13 June 2018 © Storing Renewable Energy 2016...
