User Manual | Laboratory Fume Cupboard | Cleaning of Laboratory Fume Cupboards

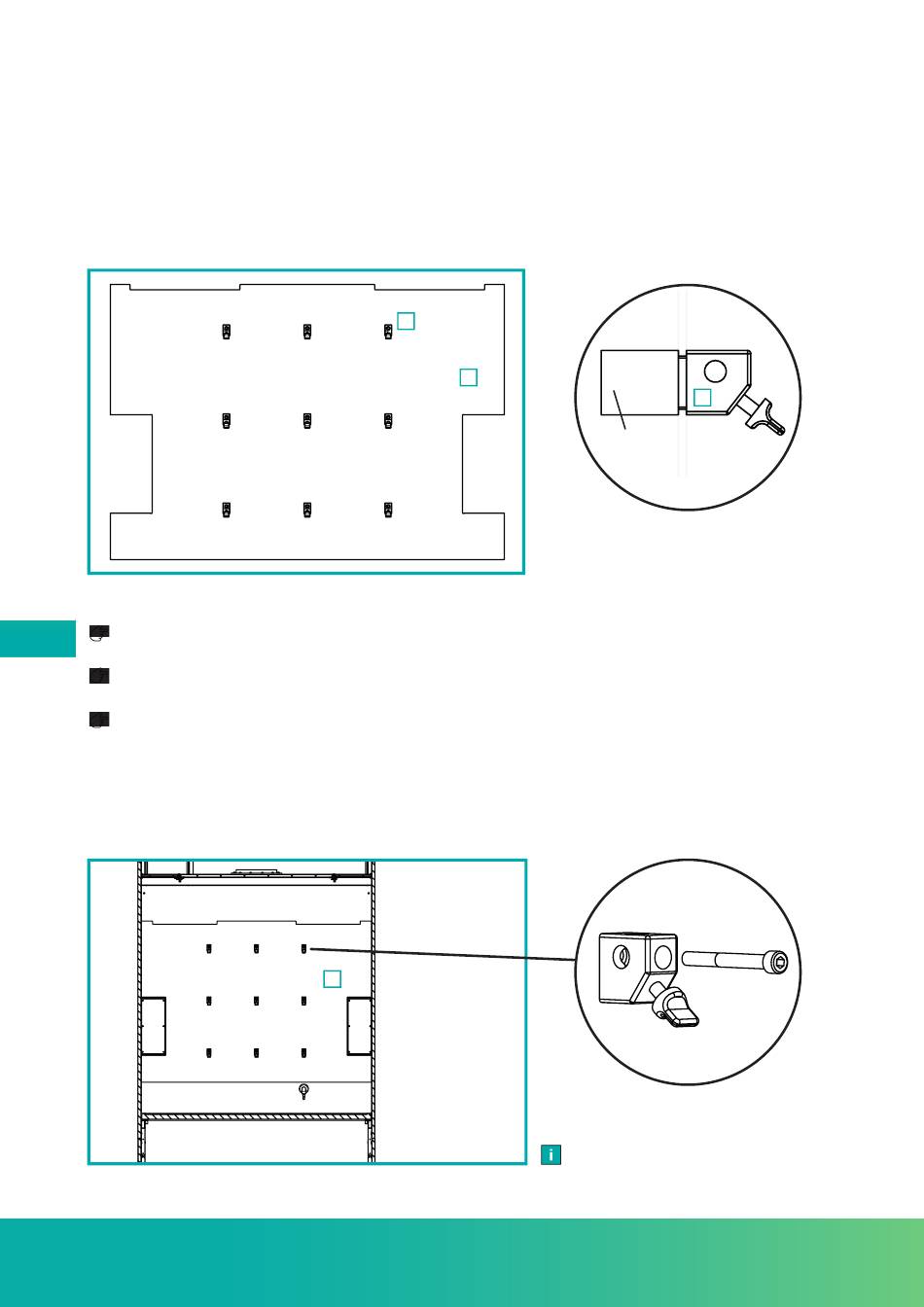

3. Cleaning the air baffl e and contaminated areas
4. Assembly of air baffl e:
Position rod holder Pos. 50 in air baffl e Pos. 46. Position rod holder Pos. 50 in air baffl e Pos. 46.
Mount the spacers on the back of the air baffl e by sliding onto the rod holder. Mount the spacers on the back of the air baffl e by sliding onto the rod holder.
Check that all spacers are mounted. Check that all spacers are mounted.
5. Assemble air baffl e:
47
46
46
50
Spacer
Representation as sectional view
