User Manual | Laboratory Fume Cupboard | Media system: Armatures

Media system: Armatures

5.1

Marking of armatures

Laboratory armatures must be colour-coded in accordance with DIN EN 13792. The standard does not apply
to medical institutions or hospitals which use medical gases from a medical gas supply system according to
EN737.
Zone 1
Zone 2
Zone 3

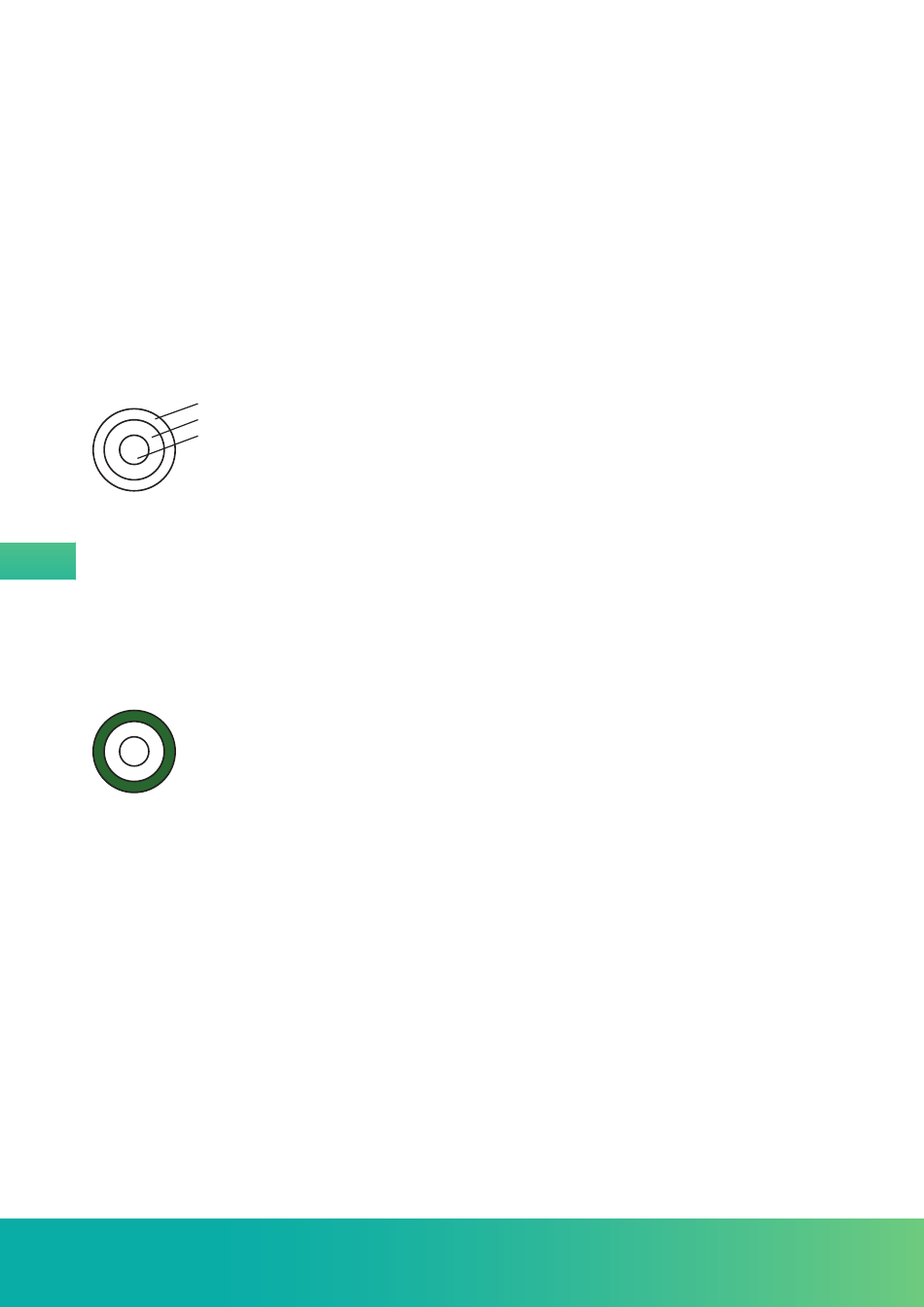

The 3 zones are colour-coded. Zone 2 includes the short designation / long text for the flow substance and is a
Wesemann standard.
5.2 Colour-coding Zone 1 and abbreviations
5.2.1

Water

The colour green of Zone 1 indicates that it refers to the flow substance water. Which water it is can be can be
recognized by the colours in Zones 2 and 3.
WCS Cooling water/Sprinkler water
WPC Drinking/Potable water, cold
WNH Process water, hot
WST Steam/Water vapour
WCH
Ultrapure water, hot
WCR Cooling water return
WSH Surface water, hot
WDH Demineralized water, hot
WRH River water, hot
WDI
Distilled water
WPH Drinking/Potable water, hot
WSP Well water
WNC Well water, cold
WCO Condensate
WCC
Ultrapure water, cold
WCF Cooling water flow
WSC Surface water, cold
WDC Demineralized water, cold
WRC River water, cold
