User Manual | Laboratory Fume Cupboard | Product Description
3.4 Fume cupboard function displays

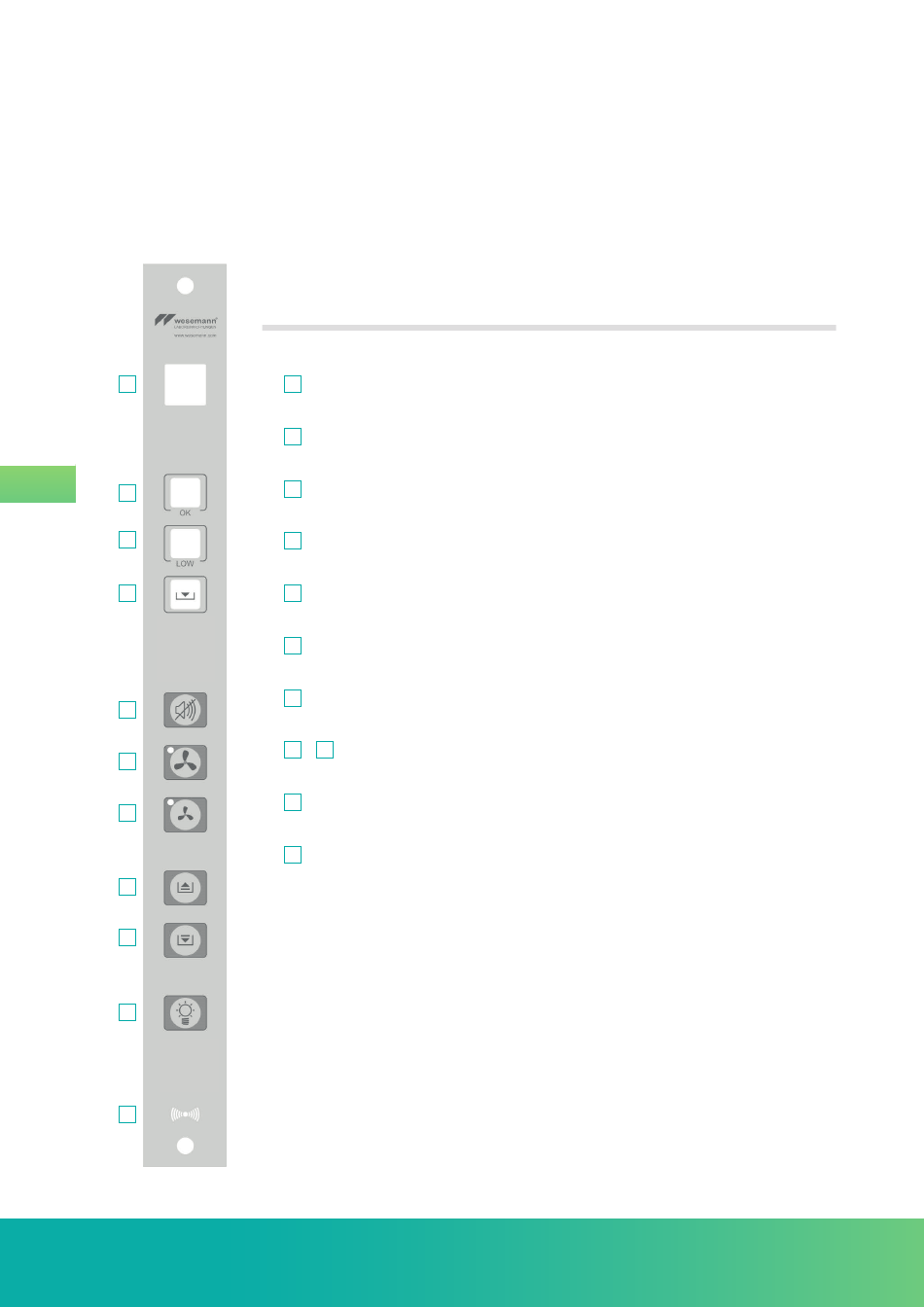

3.4.1 Fume cupboard function display Type 7.1
01
02
03
04
05
06
07
08A
08B
09
10
FUNCTION
OLED-Display
 01
Display of volumetric flow, as well as operating and status reports
LED OK (green)
02
Volumetric flow okay
LED LOW (red)
03
Volumetric flow too low
LED CLOSE SASH (yellow)
04
Warning: Close sash if opening > 50 cm
RESET button
05
Reset acoustic alarm
Button V with LED
06
MAX
V Operation (Emergency)
MAX
Button V with LED
07
MIN
V Reduced Operation ON / OFF
MIN
Sash button OPEN / CLOSE

08A 08B
Sash control - Sash open - Sash close
LIGHT button
09
Fume cupboard interior lighting ON/OFF
IR-Interface - Optional -
10
Laptop Interface for parameter setting and actual value retrieval
STATUS DISPLAY - MAINS POWER FAILURE:
In the case of a power failure, the red LED flashes once every 2 secs. Parallel to
this, an acoustic alarm sounds. A mains power failure is displayed even when the
unit is switched off, but then without an acoustic alarm. This function is available if
the control is equipped with an emergency power supply accumulator.
