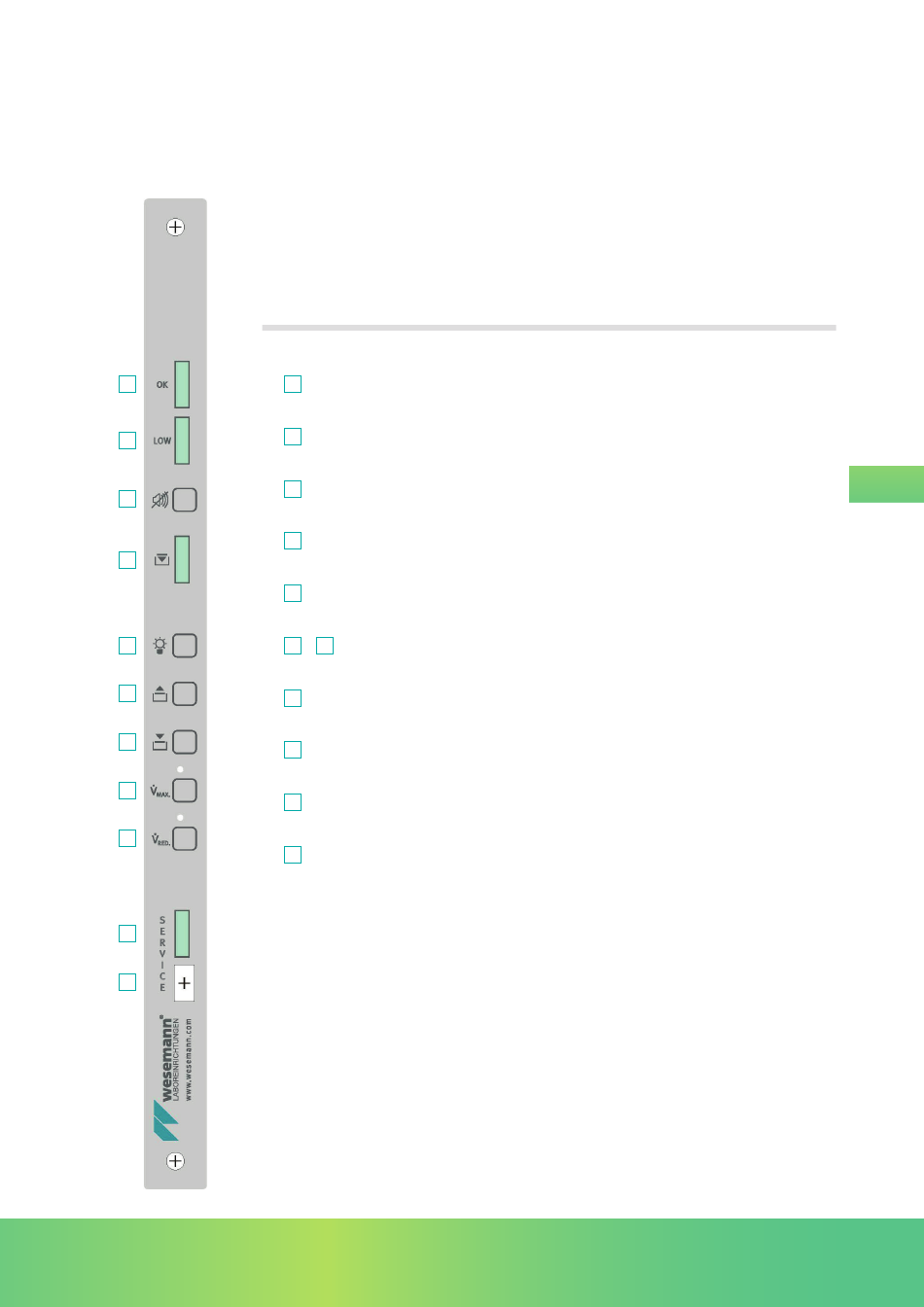

3.4.4 Fume cupboard function display Type 4.1
02
03
05
04
09
08A
08B
06
07
11
12
User Manual | Laboratory Fume Cupboard | Product Description
FUNCTION
LED OK (green)
 02
Volumetric flow okay
LED LOW (red)
03
Volumetric flow too low
RESET button
05
Reset acoustic alarm
LED CLOSE SASH (yellow)
04
Warning: Close sash if opening > 50 cm
LIGHT button
09
Fume cupboard interior lighting ON/OFF
Sash OPEN / CLOSE

08A 08B
Sash control - Sash open - Sash close
Button V with LED
06
MAX
V Operation (Emergency)
MAX
Button V with LED
07
MIN
V Reduced Operation ON / OFF
MIN
LED SERVICE
11
Service due, according to operating hours or date
Service socket
12
Laptop connection for setting parameters and actual value retrieval
STATUS DISPLAY - MAINS POWER FAILURE:
In the case of a power failure, the red LED flashes once every 2 secs. Parallel to
this, an acoustic alarm sounds. A mains power failure is displayed even when the
unit is switched off, but then without an acoustic alarm. This function is available if
the control is equipped with an emergency power supply accumulator.
