User Manual | Laboratory Fume Cupboard | Product Description

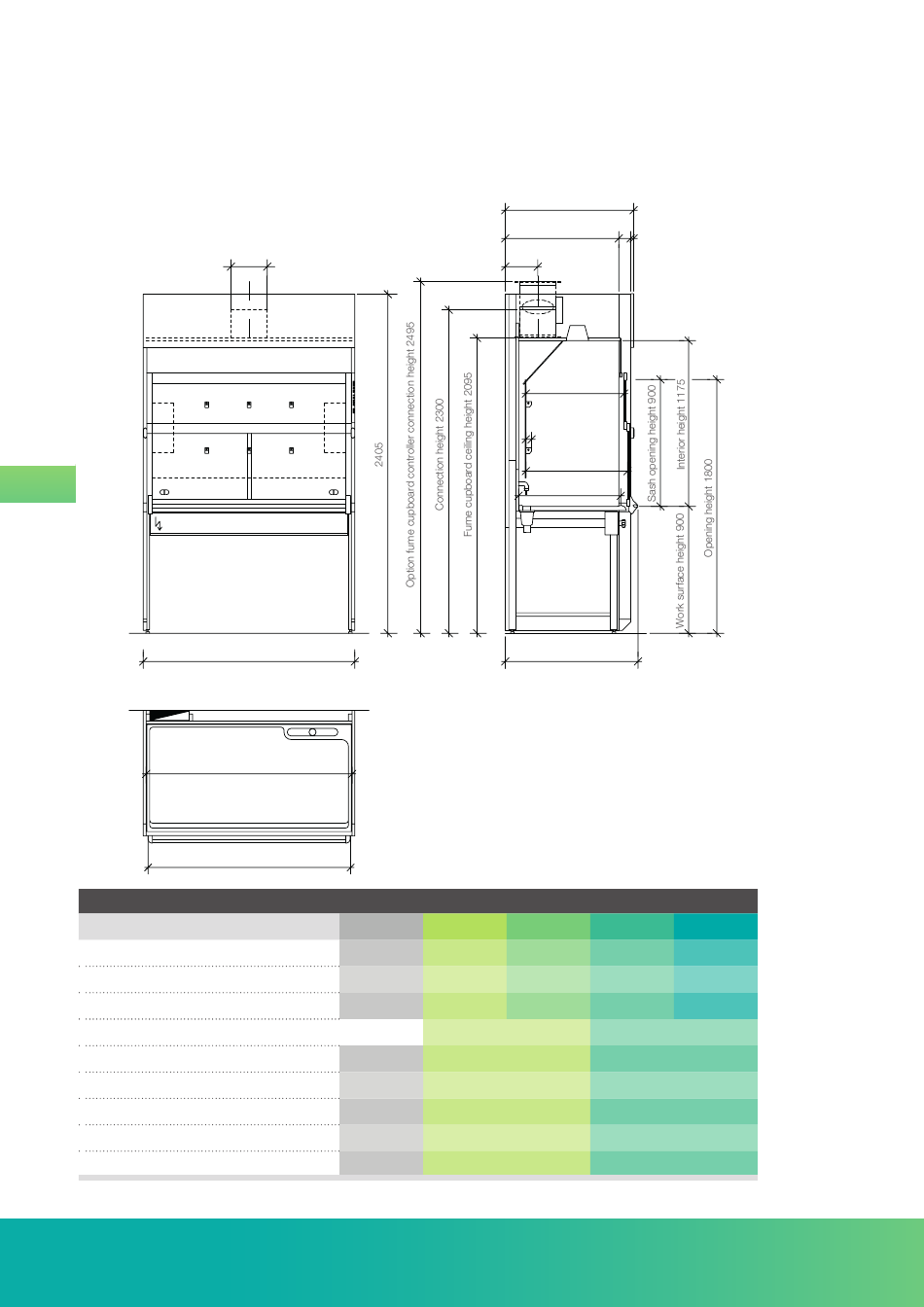

3.2.2 Dimensions fume cupboard for low ceilings DSN-DG03
DSN-DG03-1500
B (Interior width 1460)
C (Opening width 1440)
Grid width
Interior width
Opening width
Depth of fume cupboard
Total depth
Usable depth worktop
Usable depth in area of sash
Usable depth in area of skirt
Ø 250
A (1500)
A
B
C
D
E
F
G
H
D (910)
805 85 20
230
H (680)
40
G (710)
F (720)
E (940)
1200 1500 1800
1160 1460 1760
1140 1440 1740
Standard
910
940
720
710
680
2100
2060
2040
Special depth
1070
1100
880
870
840
