User Manual | Laboratory Fume Cupboard | Product Description
3.2.4

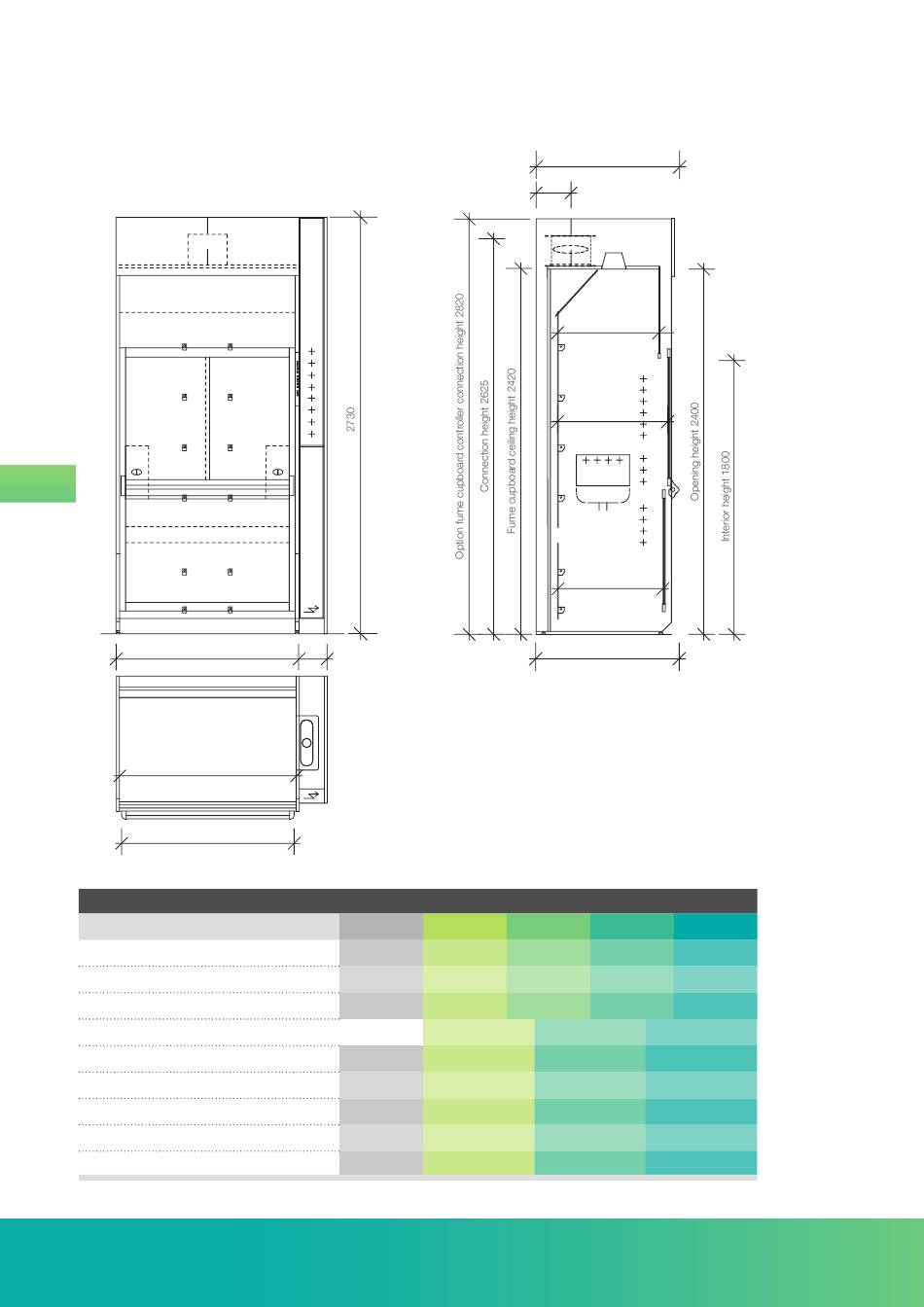

Dimensions walk-in fume cupboard DB-DG03

DB-DG03-1500
A (1500)
B (Interior width 1460)
C
Grid width
Interior width
Opening width
Fume cupboard depth
Total depth
Usable depth in the area of sash
Usable depth in the area of skirt
Usable depth in the area of telescope sash
Ø 250
184
A
B
C
D
E
G
H
J
D (910)
230
H (650)
G (710)
J (680)
E (940)
1200 1500 1800
1160 1460 1760
1140 1440 1740
Standard Special depth
910 1070
940 1100
710 870
650 810
680 840
2100
2060
2040
Special depth
1270
1300
1070
1010
1040
