WHEELS

RIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial
carcass tyres. The vehicle registration doc-
ument also lists all type-approved tyres.
IMPORTANT In the event of discrepan-
cies between the information provided on
this "Owner Handbook" and the "Vehi-
cle registration document", only the lat-
ter is valid.
For safe driving, the car must be fitted
with tyres of the same make and type on
all wheels.
IMPORTANT Do not use inner tubes in
the case of tubeless tyres.
SPARE WHEEL
Pressed steel wheel. Tubeless tyre.
WHEEL GEOMETRY
Total front toe-in: 0.3 ± 1 mm
Total rear toe in: 1,7 ± 0,5 mm
The values refer to the car in running
order.
fig. 4

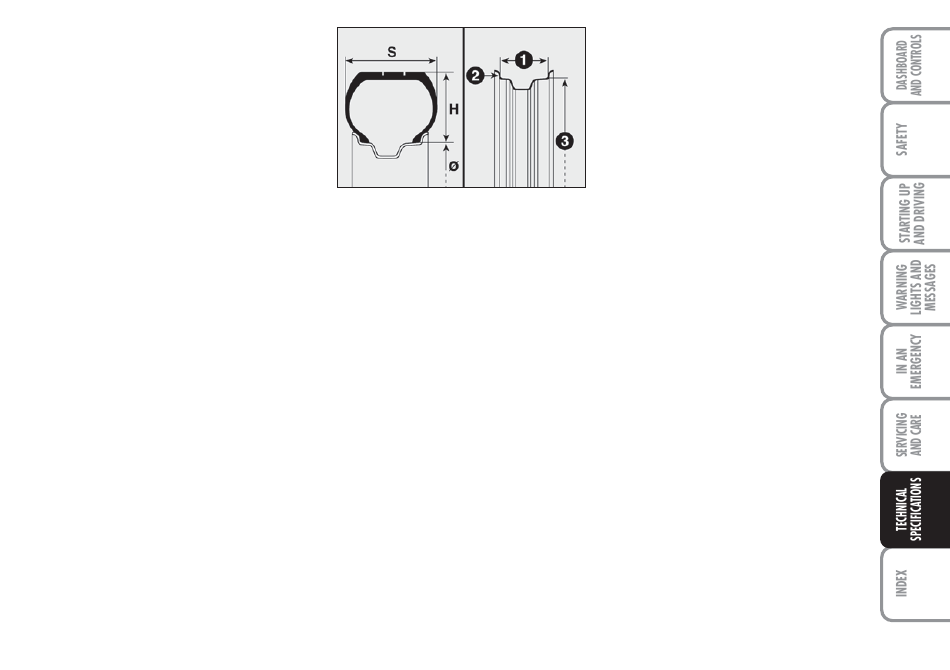

READING TYRE MARKINGS fig. 4
Example: 185/65 R 15 88T
185 = Rated width (S, distance between
sidewalls in mm).
65 = Height/width ratio (H/S) as a
percentage.
R = Radial tyre.
15 = Rim diameter in inches (Ø).
88 = Load rating (capacity).
T = Maximum speed rating.
Maximum speed index
Q = up to 160 km/h.
R = up to 170 km/h.
S = up to 180 km/h.
T = up to 190 km/h.
U = up to 200 km/h.
H = up to 210 km/h.
F0R0147m
V = up to 240 km/h.
Maximum speed rating
for snow tyres
QM + S = up to 160 km/h.
TM + S = up to 190 km/h.
HM + S = up to 210 km/h.
