01/20
About the Borum brand
Our "heavy duty commercial" range of Borum Industrial equipment has been manufactured to exacting standards for the past 34
years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport,
mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior
professional standards, reliability, quality, and are covered by a 12 month trade use warranty.

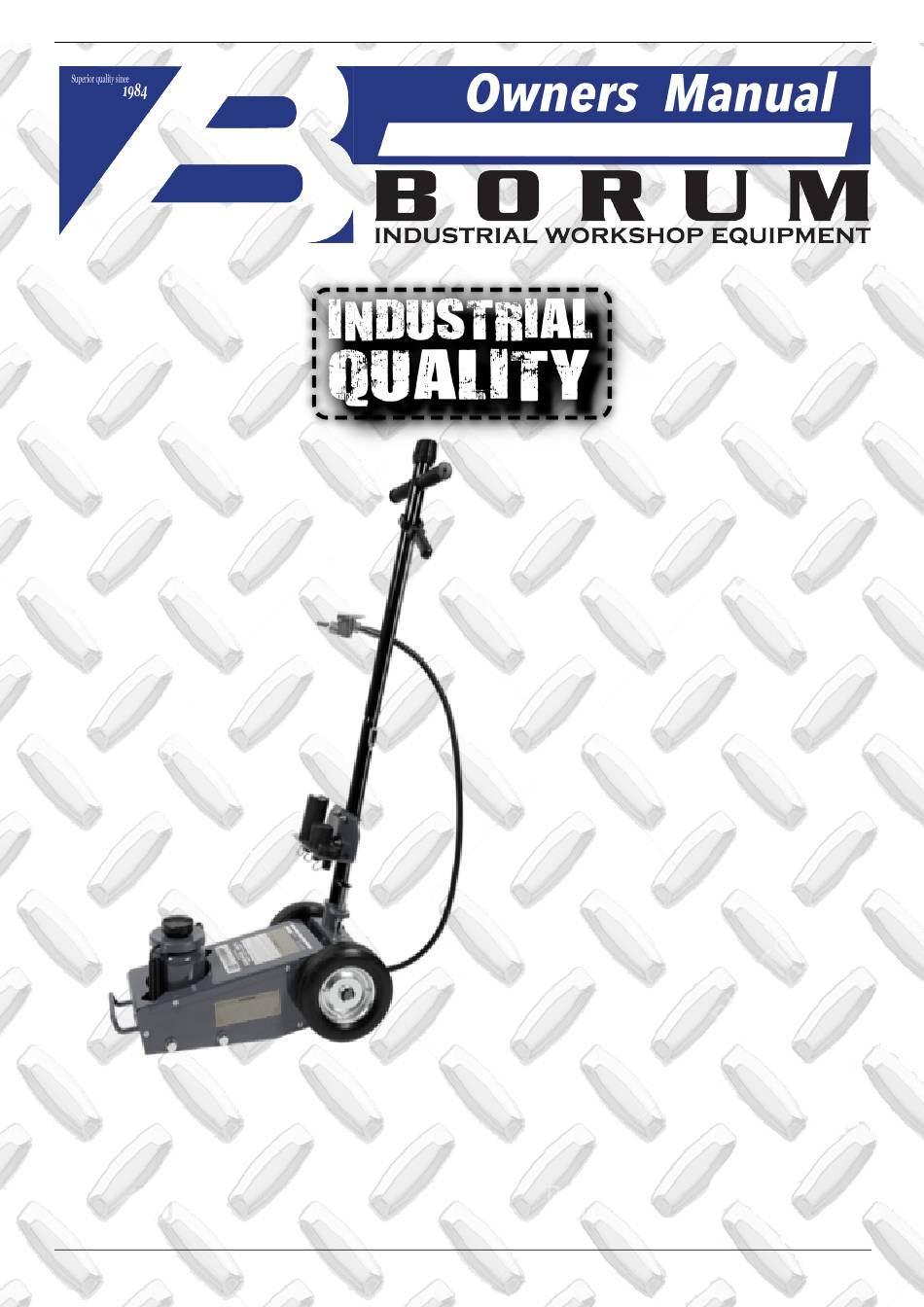

22,000KG AIR ACTUATED TRUCK JACK
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
Specifications:
Safe Working Capacity: 22,000kg
Minimum Height: 210mm
Maximum Height: 525mm
Hydraulic Stroke: 120mm
Adjustable Screw: 80mm
Handle Length: 1065mm
Wheel Diameter: 175mm
Operating Air Pressure: 100-120psi
Air Inlet Fitting: 1/4" x 18NPT
Nett Weight: 48kg
Carton: 660 x 360 x 280mm
Gross Weight: 50kg
B2003T
Advertisement
Table of Contents
Related Manuals for Borum B2003T
Summary of Contents for Borum B2003T
- Page 1 About the Borum brand Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 34 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments.
-
Page 2: Table Of Contents
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Borum policy of continuous improvement determines the right to make modifications without prior warning. -
Page 3: Standard Operating Procedure
01/20 B2003T STANDARD OPERATING PROCEDURE DO NOT use this machine unless you have been trained and assessed to a competent level in its safe use and operation, and have been given permission to use this Long loose hair must be contained when... -
Page 4: Assembly, Operation, Preventitive Maintenance
B2003T ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE 1. FEATURES & MODELS The Borum Industrial Quality Air Actuated Hydraulic Truck Jack utilises compressed air to activate a booster cylinder, to move hydraulic oil within the cylinder up & down. It adopts a heavy duty hydraulic design combination of compressed air and hydraulic pressure, to create, strong jacking capacity and low lifting clearance in one jack. - Page 5 01/20 B2003T 4. OPERATION Prior to each use always conduct a visual inspection checking for and any abnormal conditions, such as cracked welds, and damaged, loose, or missing parts. Raising the Jack: 1. Block the vehicle's wheels for lifting stability. Secure the load to prevent inadvertent shifting and movement.
- Page 6 01/20 B2003T Important: Dirt is the greatest single cause of failure in hydraulic units. Keep the jack clean and well lubricated to prevent foreign matter from entering the system. If the jack has been exposed to rain, snow, sand, or grit it must be cleaned before it is stored or used.
-
Page 7: Parts Diagram
01/20 B2003T PARTS DIAGRAM Made in China to TQB Brands Pty Ltd specifications P a g e Visit us at www.tqbbrands.com.au... -
Page 8: Parts List
01/20 B2003T PARTS LIST Part Description Part Description Bolt Spring Bolt Tie Rod-3 Right Side Plate Screw Circlip Wheel Handle Lever Bolt Handle Sleeve Adjustable Frame Base Plate Knob Left Side Plate Upper Handle Handle Socket Pump Assembly Washer Washer... -
Page 9: Warranty
B2003T WARRANTY BORUM Industrial products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
