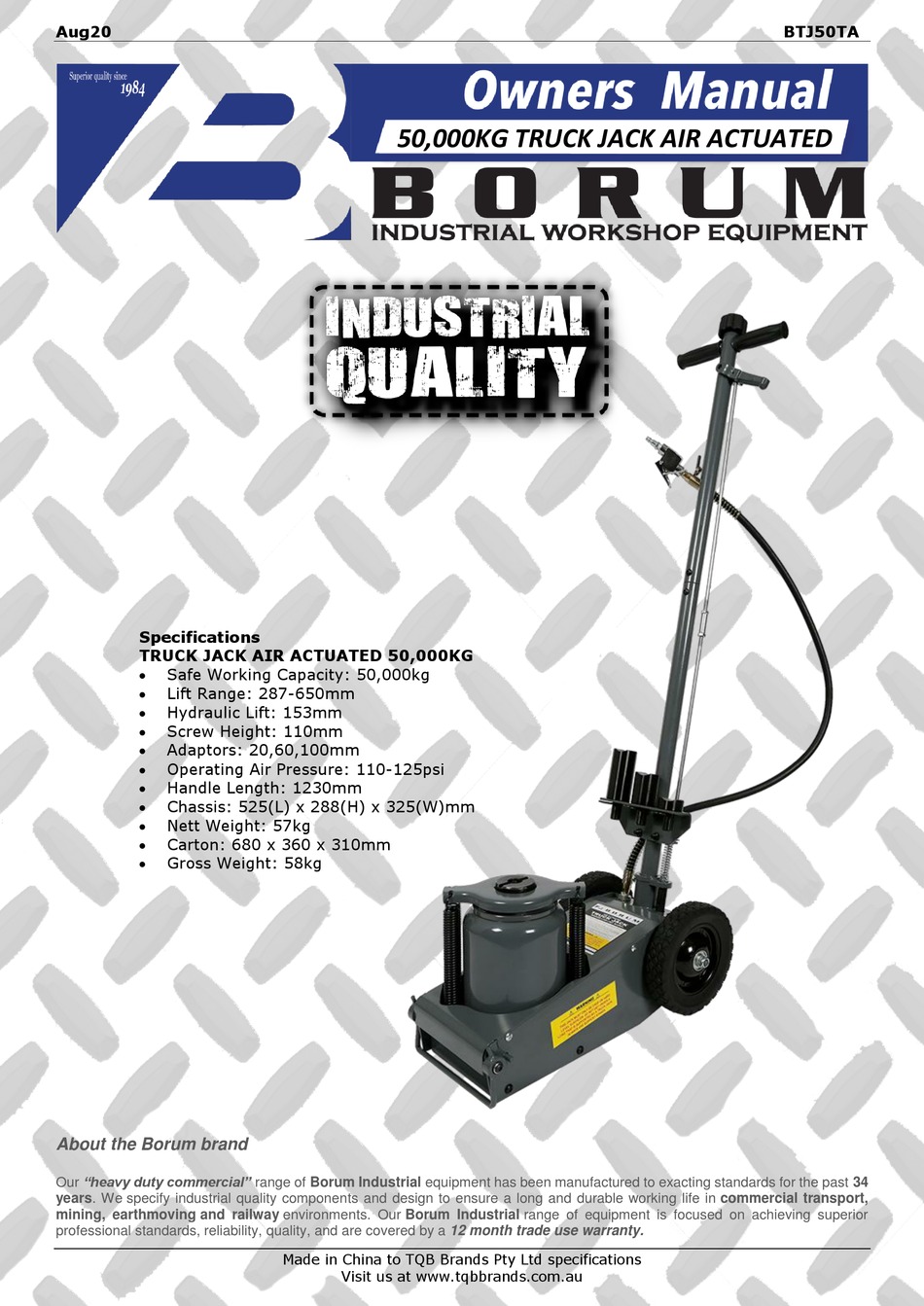

Aug20
Specifications
TRUCK JACK AIR ACTUATED 50,000KG
Safe Working Capacity: 50,000kg
Lift Range: 287-650mm
Hydraulic Lift: 153mm
Screw Height: 110mm
Adaptors: 20,60,100mm
Operating Air Pressure: 110-125psi
Handle Length: 1230mm
Chassis: 525(L) x 288(H) x 325(W)mm
Nett Weight: 57kg
Carton: 680 x 360 x 310mm
Gross Weight: 58kg
About the Borum brand
Our "heavy duty commercial" range of Borum Industrial equipment has been manufactured to exacting standards for the past 34
years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport,
mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior
professional standards, reliability, quality, and are covered by a 12 month trade use warranty.
50,000KG TRUCK JACK AIR ACTUATED
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
BTJ50TA
Advertisement
Table of Contents
Related Manuals for Borum BTJ50TA
Summary of Contents for Borum BTJ50TA
- Page 1 About the Borum brand Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 34 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments.
-
Page 2: Table Of Contents
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Borum policy of continuous improvement determines the right to make modifications without prior warning. -
Page 3: Standard Operating Procedure
Aug-20 BTJ50TA STANDARD OPERATING PROCEDURE DO NOT use this machine unless you have been trained and assessed to a competent level in its sate use and operation, and have been given permission to use this Long loose hair must be contained when... -
Page 4: Assembly, Operation, Preventitive Maintenance
ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE 1. FEATURES This "Borum Industrial" pneumatic heavy-duty 50,000kg Air Hydraulic Truck Jack has a powerful air motor to lift heavy loads. The efficient quick lift system is designed to ensure the lifting ram comes in contact with the load faster. The compact design easily fits between dual tandem axles. Ideal for lifting axles, farm vehicles, heavy-duty machinery, industrial equipment and more. - Page 5 Aug-20 BTJ50TA 2. ASSEMBLY Assembly of Handle: After removing from the packing material, make sure the product is in perfect condition and that there are no visible damaged parts. Dispose of the packaging material responsibly. 1. Remove jack handle 2. Mount the handle in the upright position.
- Page 6 BTJ50TA 6. STORAGE This Borum jack should always be stored in a dry location on a level surface with the lift ram pistons in the fully retracted position, where it will not be exposed to corrosive vapours, abrasive dust, or any other harmful elements.
-
Page 7: Troubleshooting
Aug-20 BTJ50TA TROUBLESHOOTING PROBLEM POSSIBLE CAUSE ACTION Jack will not lift Release valve in wrong position Move release valve to UP position Low/no oil in reservoir Fill with oil and bleed system Air-locked system Bleed system ... -
Page 8: Parts Diagram
Aug-20 BTJ50TA PARTS DIAGRAM Made in China to TQB Brands Pty Ltd specifications P a g e Visit us at www.tqbbrands.com.au... -
Page 9: Warranty
BTJ50TA WARRANTY BORUM Industrial products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
