05/20
About the Borum brand
Our "heavy duty commercial" range of Borum Industrial equipment has been manufactured to exacting standards for the past 34
years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport,
mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior
professional standards, reliability, quality, and are covered by a 12 month trade use warranty.

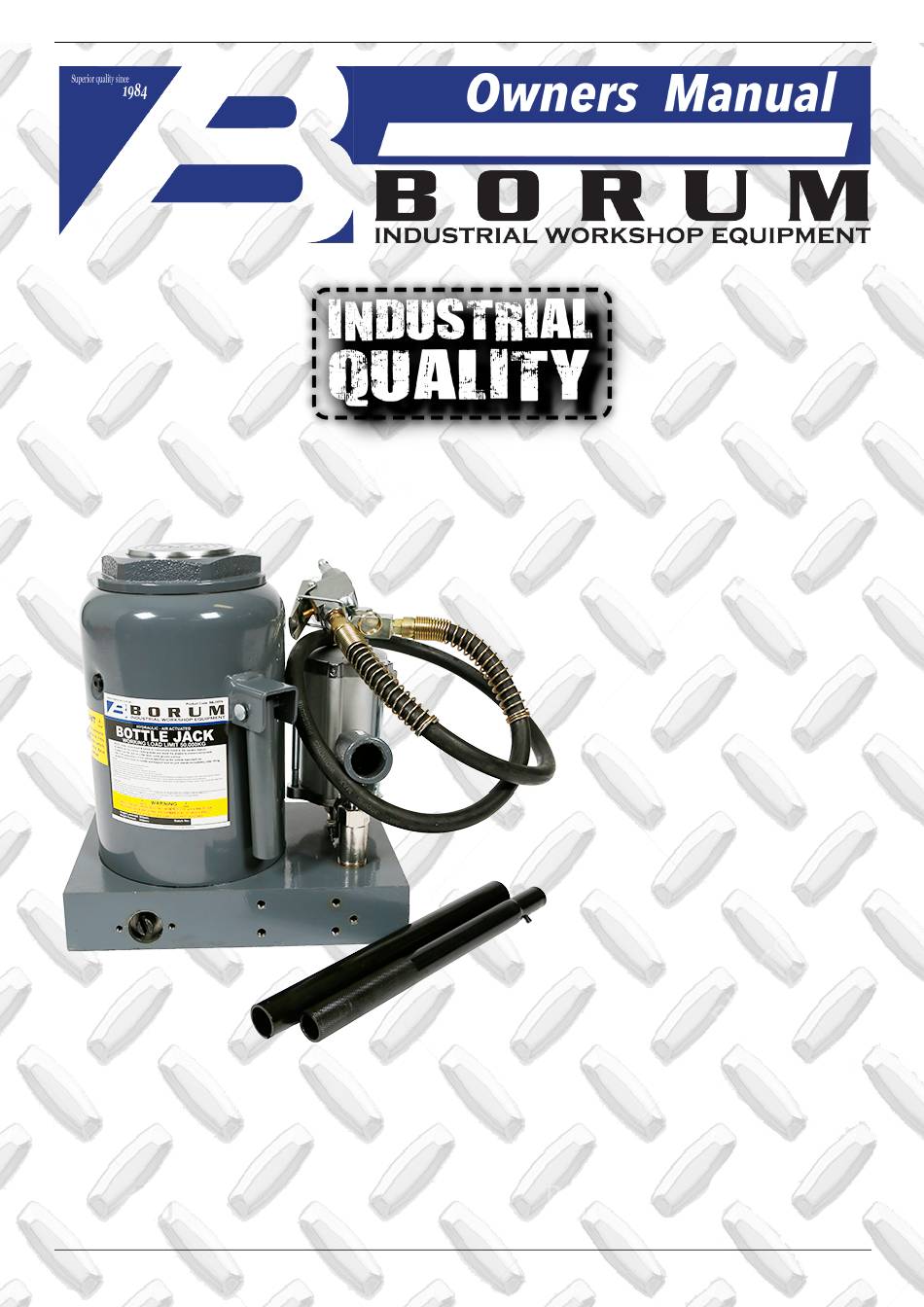

50,000KG AIR ACTUATED BOTTLE JACK
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
Specifications:
Safe Working Capacity: 50,000kg
Minimum Height: 305mm
Maximum Height: 485mm
Hydraulic Stroke: 180mm
Operating Air Pressure: 110-120psi
Air Inlet Fitting: 1/4" x 18NPT
Nett Weight: 40kg
Carton: 330 x 230 x 355mm
Gross Weight: 41kg
BBJ50TA
Advertisement
Related Manuals for Borum BBJ50TA
Summary of Contents for Borum BBJ50TA
- Page 1 About the Borum brand Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 34 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments.
-
Page 2: Table Of Contents
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Borum policy of continuous improvement determines the right to make modifications without prior warning. -
Page 3: Standard Operating Procedure
05/20 BBJ50TA STANDARD OPERATING PROCEDURE DO NOT use this machine unless you have been trained and assessed to a competent level in its safe use and operation, and have been given permission to use this Long loose hair must be contained when... -
Page 4: Assembly, Operation, Preventitive Maintenance
ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE 1. FEATURES & MODELS The Borum Air Actuated Hydraulic Bottle Jack is designed to operate either manually or pneumatically for lifting and lowering, but not sustaining load. This 50,000kg Heavy-Duty Air/Hydraulic Bottle Jack is the perfect choice for a wide variety of uses. The power of air makes it easy to lift farm vehicles, trucks, lawn mowers, heavy equipment and other large loads. - Page 5 05/20 BBJ50TA Bleed Air for Air Motor: Lift Saddle Oil Filler Hole 1. Remove the Oil Filler Bung and if required, refill with *32 Grade hydraulic Relief Valve Fitting oil until the oil is lapping the bottom of the Oil Filler Hole.
- Page 6 05/20 BBJ50TA 7. Insert and secure the handle into handle sleeve. Pump handle or squeeze the lift control valve until the saddle contacts load. To end air operation simply release the grip on the lift control valve. 8. Raise load to the desired height, then immediately transfer the load to appropriately rated jack stands.
- Page 7 05/20 BBJ50TA 3. Fill until oil is level with the filler plug hole, reinstall oil filler plug. Replace Jack Oil: For best performance and longest life, replace the complete fluid supply at least once per year. 1. With the saddle fully lowered and pump piston fully depressed, remove the oil filler plug.
-
Page 8: Parts Diagram
05/20 BBJ50TA PARTS DIAGRAM Made in China to TQB Brands Pty Ltd specifications P a g e Visit us at www.tqbbrands.com.au... -
Page 9: Parts List
05/20 BBJ50TA PARTS LIST Part Description Part Description Base Filler Plug Steel Ball Handle Seal Ring Washer Release Valve Steel Ball Washer Spring Pump Core Seat Washer O-Ring Screw Nylon Ring Hose Joint Dust Ring Steel Ball Pump Core Ball Base... -
Page 10: Troubleshoot
05/20 BBJ50TA TROUBLESHOOT Problem Symptom Cause Conclusion Solution Jack will not Manual pump has Release valve not Bypass through release Ensure release valve lift using no resistance, lift tightly closed valve tightly closed manual ram will not raise pump Air in hydraulic system... - Page 11 05/20 BBJ50TA Poor lift Pump has no Fluid level low Fill fluid to correct level Fill fluid to correct performance resistance, lift ram fluid level and bleed will not raise to full system stroke Air trapped in system Lift ram raised for...
-
Page 12: Warranty
BBJ50TA WARRANTY BORUM Industrial products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
