Oct-19
Specifications

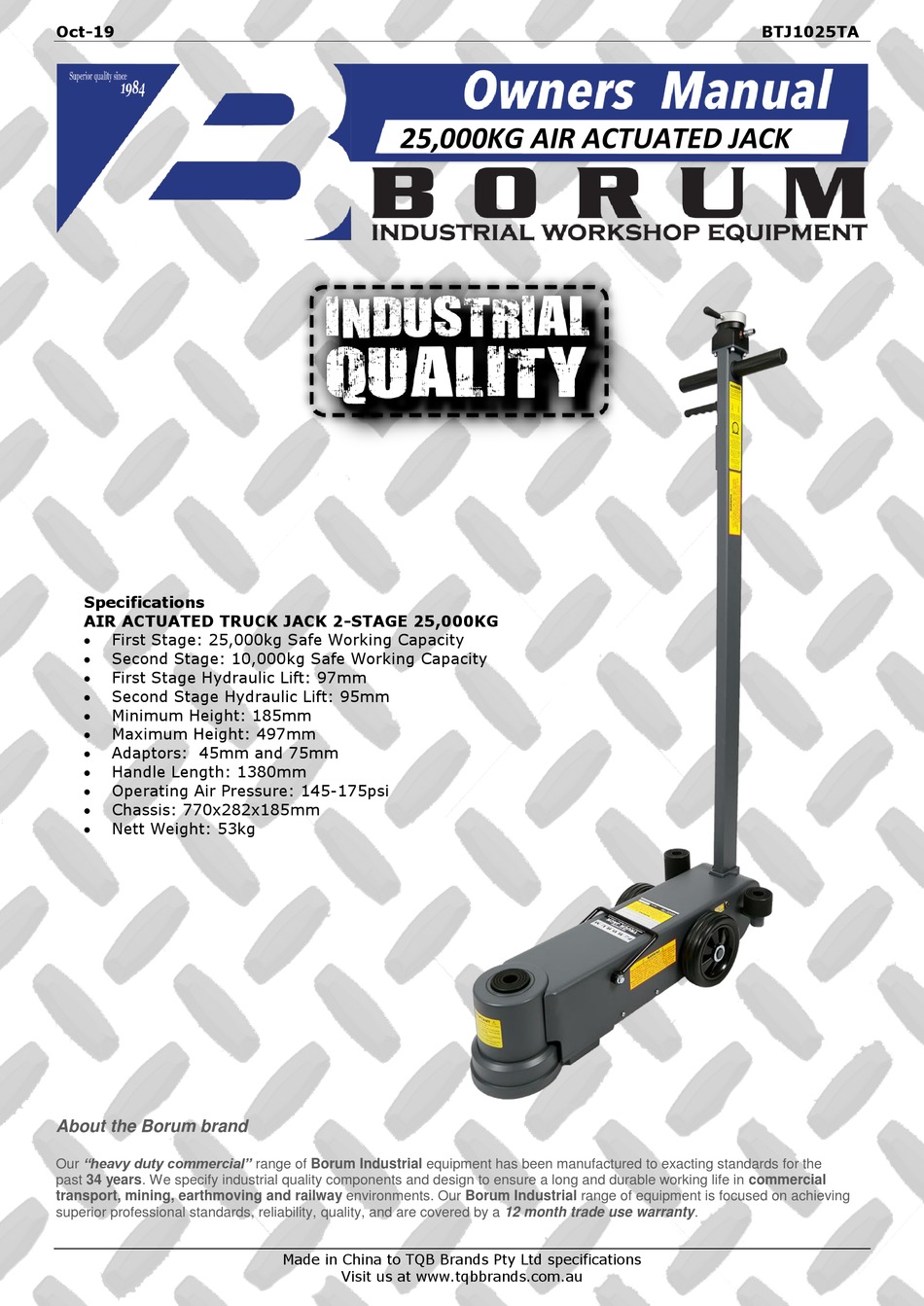

AIR ACTUATED TRUCK JACK 2-STAGE 25,000KG
First Stage: 25,000kg Safe Working Capacity
Second Stage: 10,000kg Safe Working Capacity
First Stage Hydraulic Lift: 97mm
Second Stage Hydraulic Lift: 95mm
Minimum Height: 185mm
Maximum Height: 497mm
Adaptors: 45mm and 75mm
Handle Length: 1380mm
Operating Air Pressure: 145-175psi
Chassis: 770x282x185mm
Nett Weight: 53kg
About the Borum brand
Our "heavy duty commercial" range of Borum Industrial equipment has been manufactured to exacting standards for the
past 34 years. We specify industrial quality components and design to ensure a long and durable working life in commercial
transport, mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving
superior professional standards, reliability, quality, and are covered by a 12 month trade use warranty.
25,000KG AIR ACTUATED JACK
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
BTJ1025TA
Advertisement
Table of Contents
Related Manuals for Borum BTJ1025TA
Summary of Contents for Borum BTJ1025TA
- Page 1 About the Borum brand Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 34 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments.
-
Page 2: Table Of Contents
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Borum policy of continuous improvement determines the right to make modifications without prior warning. -
Page 3: Standard Operating Procedure
Oct-19 BTJ1025TA STANDARD OPERATING PROCEDURE DO NOT use this machine unless you have been trained and assessed to a competent level in its sate use and operation, and have been given permission to use this Long loose hair must be contained when... -
Page 4: Assembly, Operation, Preventitive Maintenance
ASSEMBLY, OPERATION, PREVENTITIVE MAINTENANCE 1. FEATURES The BORUM "Industrial Quality" Commercial Jacks are made to TQB Brands specification using quality components that are built to exacting standards through CNC machining and Robotic Welding. The result is top industrial performance and reliability. BORUM "Industrial Quality"... - Page 5 Oct-19 BTJ1025TA 2. ASSEMBLY Step 1: Screw toggle (taped to bottom of carton with handle in) into the top of the handle. Remove axle from rear of jack. Step 2: Insert hoses from Handle into rear of jack as pictured below.
- Page 6 Oct-19 BTJ1025TA 3. BEFORE USE Prior to each use conduct a visual inspection checking for abnormal conditions, such as cracked welds, leaks, and damaged, loose, or missing parts. Consult the vehicle owner’s manual to determine the location of lift points.
- Page 7 BTJ1025TA 6. STORAGE This Borum jack should always be stored in a dry location on a level surface with the lift ram pistons in the fully retracted position, where it will not be exposed to corrosive vapours, abrasive dust, or any other harmful elements.
-
Page 8: Troubleshooting
Oct-19 BTJ1025TA TROUBLESHOOTING PROBLEM POSSIBLE CAUSE ACTION Jack will not lift Control valve in wrong position. Turn control valve knob clockwise. Low/no oil in reservoir. Fill with oil and bleed system. Air-locked system. Bleed system. -
Page 9: Warranty
BTJ1025TA WARRANTY BORUM Industrial products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
