June-21
Specifications
TRUCK JACK AIR/HYDRAULIC 35,000KG
•
Safe Working Capacity: 35,000kg
•
Max. Lift Height: 633mm
•
Min. Lift Height: 255mm
•
Hydraulic Lift: 155mm
•
Adjustable Screw: 123mm
•
Adaptors: 21,61,100mm
•
Operating Air Pressure: 110-125psi
•
Handle Length: 1110mm
•
Chassis: 555(L) x 255(H) x 295(W)
•
Nett Weight: 45kg
•
Carton: 665 x 345 x 260mm
•
Gross Weight: 47kg
About the Borum brand
Our "heavy duty commercial" range of Borum Industrial equipment has been manufactured to exacting standards for the past 34
years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport,
mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior
professional standards, reliability, quality, and are covered by a 12 month trade use warranty.

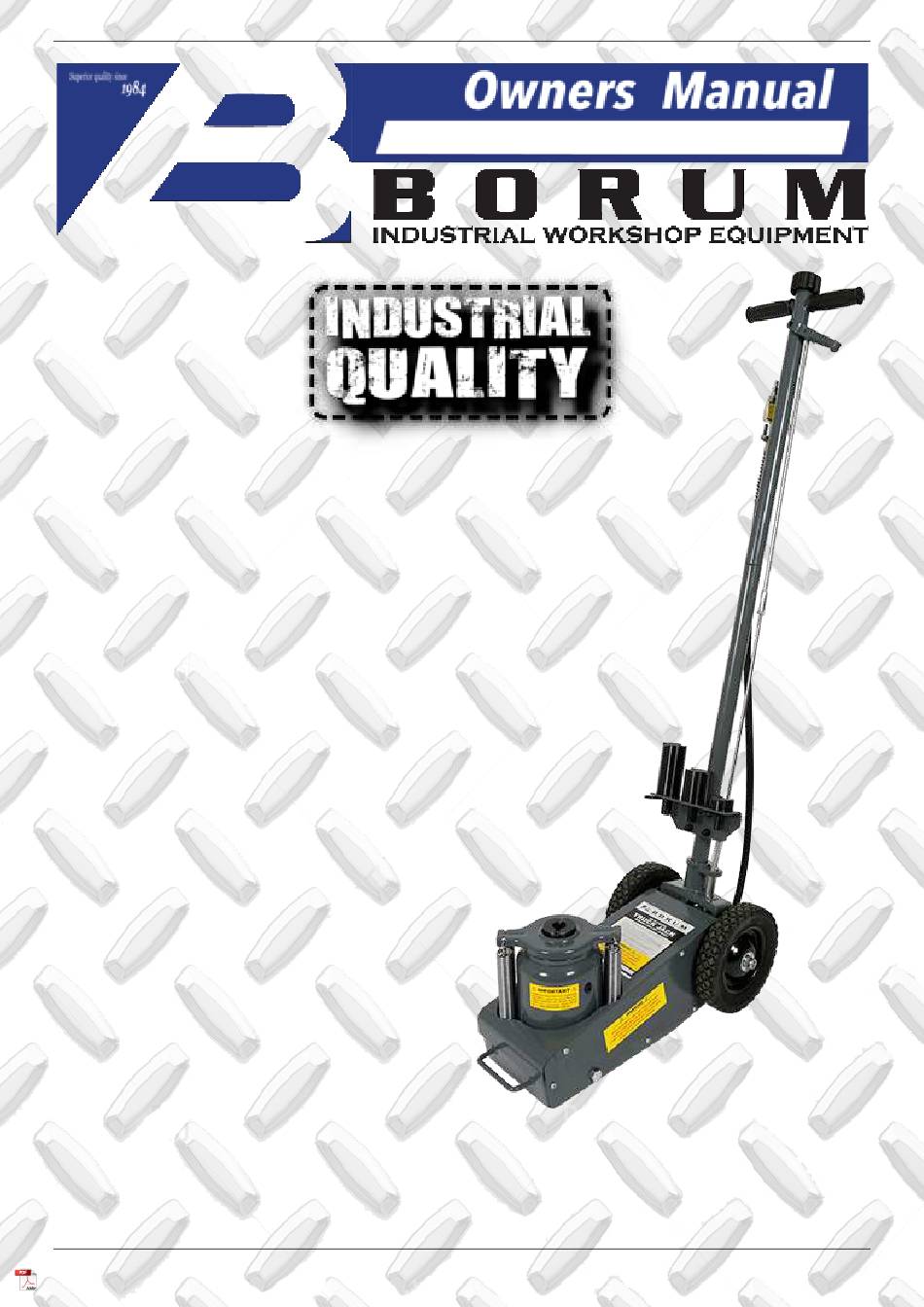

35,000KG AIR/HYDRAULIC JACK
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
BTJ35TA
Advertisement
Table of Contents
Related Manuals for Borum BTJ35TA
Summary of Contents for Borum BTJ35TA
- Page 1 About the Borum brand Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 34 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments.
-
Page 2: Table Of Contents
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Borum policy of continuous improvement determines the right to make modifications without prior warning. -
Page 3: Standard Operating Procedure
June-21 BTJ35TA STANDARD OPERATING PROCEDURE DO NOT use this machine unless you have been trained and assessed to a competent level in its sate use and operation, and have been given permission to use this Long loose hair must be contained when... -
Page 4: Assembly, Operation, Preventitive Maintenance
Ideal for lifting axles, farm vehicles, heavy-duty machinery, industrial equipment and more. This Borum Air/Hydraulic Truck Jack utilises compressed air to activate a booster cylinder, to move hydraulic oil within the cylinder up & down. It adopts a industrial hydraulic design combination of compressed air and hydraulic pressure, to create, strong jacking capacity and low lifting clearance in one jack. - Page 5 June-21 BTJ35TA 2. ASSEMBLY Assembly of Handle: After removing from the packing material, make sure the product is in perfect condition and that there are no visible damaged parts. Dispose of the packaging material responsibly. 1. Remove jack handle 2. Mount the handle in the upright position.
- Page 6 BTJ35TA 6. STORAGE This Borum jack should always be stored in a dry location on a level surface with the lift ram pistons in the fully retracted position, where it will not be exposed to corrosive vapours, abrasive dust, or any other harmful elements.
-
Page 7: Troubleshooting
June-21 BTJ35TA TROUBLESHOOTING PROBLEM POSSIBLE CAUSE ACTION • Release valve in wrong position • Move release valve to UP position Jack will not lift • Low/no oil in reservoir • Fill with oil and bleed system • Air-locked system • Bleed system •... -
Page 8: Parts Diagram
June-21 BTJ35TA PARTS DIAGRAM Made in China to TQB Brands Pty Ltd specifications P a g e Visit us at www.tqbbrands.com.au... -
Page 9: Warranty
BTJ35TA WARRANTY BORUM Industrial products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
