7
Connectors
7.1
Panel PC C2 base/C2 pro/C2 marine
base full metal variant

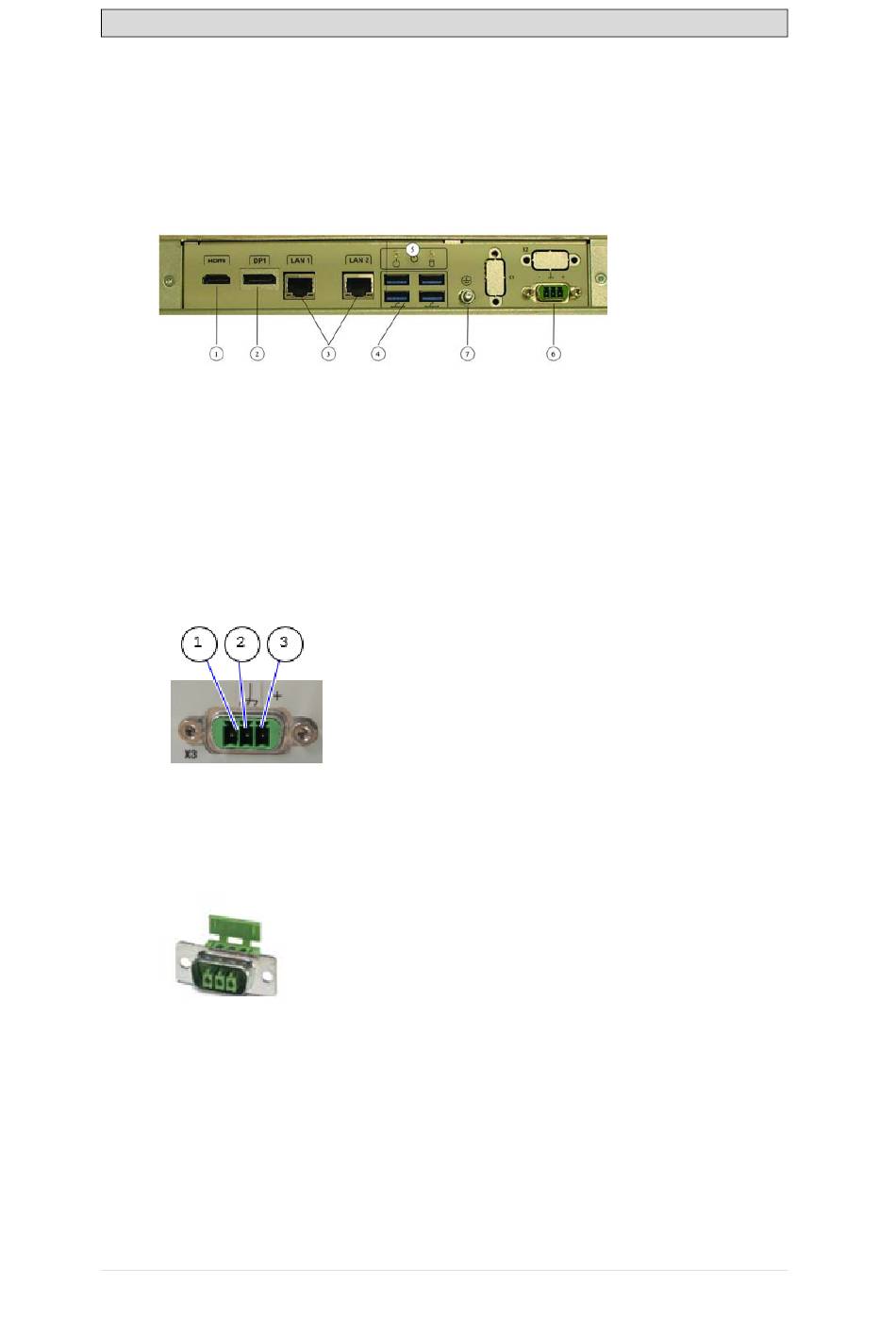

Figure: Interfaces for Panel PC C2 base/C2 pro/C2 marine base variant
1. HDMI port
2. Display port
3. LAN ports 2x
4. USB 3.30 4x
5. Power LEDs
6. Power connector
7. Earth stud
7.1.1
Figure: Input Power
1. GND
2. Shield
3. VCC
Figure:Mating Connector
Beijer, MAEN278
Input Power Connector
Connectors
19
